About the OSD Nero Arc 6-1/2" Pendant Speaker
Product highlights:
- 6-1/2" graphite cone woofer and 1" silk dome tweeter
- built-in transformer tap for use in a distributed audio system
- 70-volt tap settings: 2.5, 5, 10, and 20 watts
- 100-volt tap settings: 5, 10, 20 and 40 watts
- 8-ohm bypass for use with standard stereo receiver or amplifier
- 120° dispersion angle
- power handling: 150 watts program power
- sensitivity: 85 dB
- frequency response: 65-20,000 Hz (±3dB)
- IP66 rated: dust proof/water-resistant
- Phoenix-style terminal block input connectors
- installation kit and hanging cable included
Dimensions and warranty:
- 9-1/16" diameter x 12" height
- weight: 7.94 lbs.
- warranty: 1 year
- MFR # NERO-ARC6WHT
- Item # 452ARC6WHT
What's in the box:
OSD Nero Arc 6-1/2" Pendant Speaker owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 6.5" 70/100V Pendant speaker (white)
- Top cover
- 4-Pin Euroblock connector (installed)
- 40" Hanging cable w/ 2 attached locking-carabiners
- 3-1/4" Eye hook
- 1" Strain-relief
- Two 3/8" screws
- Nut
- Lock-washer
- Installation guide
More details on the OSD Nero Arc 6-1/2" Pendant Speaker
Features & specs
| Installation & setup | ||
|---|---|---|
| Type | Pendant | |
| Built-in amplification | No | |
| Bluetooth | No | |
| Wall-mountable | Pendant | |
| Bracket included | --- | |
| Connector type | 4-Pin Euroblock | |
| Driver details | ||
| Tweeter type | --- | |
| Tweeter size (inches) | 1 | |
| Midrange size (inches) | N/A | |
| Woofer size (inches) | 6.5 | |
| Woofer composition | --- | |
| Woofer surround | --- | |
| Audio specs | ||
| Power range (watts) | 150 | |
| Sensitivity | N/A | |
| Impedance (ohms) | 8 | |
| Frequency response | 65Hz-20k Hz | |
| Enclosure | Bass reflex | |
| Dimensions & other info | ||
| Height (inches) | 12 | |
| Width (inches) | 9-1/16 | |
| Depth (inches) | --- | |
| Weight (pounds) | 7.94 | |
| Parts warranty | 1 Year | |
| Labor warranty | 1 Year | |
Product Research
Features
Overview: The OSD Nero Arc 6 pendant speaker is designed for distributed 70/100V audio systems in home and commercial applications. The pendant speaker is an ideal choice for spaces with irregular or uneven architectural features such as vaulted ceilings in high-end home environments, malls, restaurants, bars, museums, and other spaces where multiple speakers are required and placement is challenging.

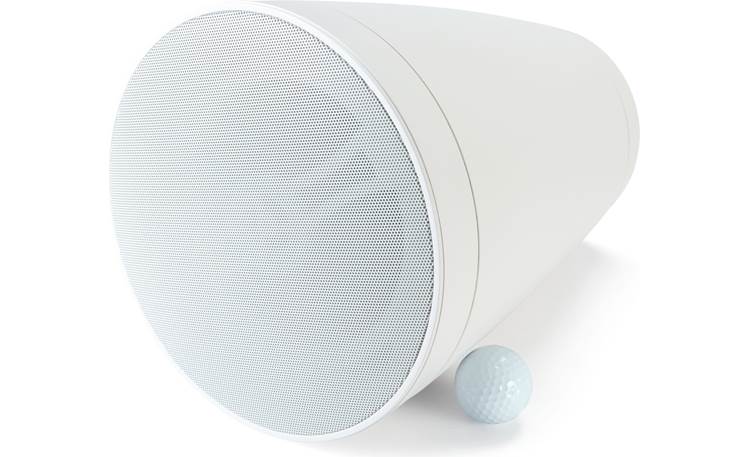

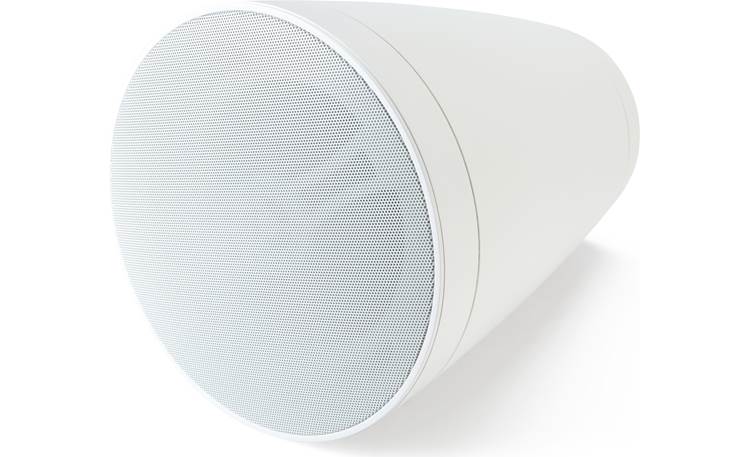

Speaker Design: The Nero Arc 6 2-way pendant speaker features a 6.5" rigid graphite cone woofer and a 1" silk dome tweeter mounted in a ported enclosure, providing accurate bass, rich midrange sound, and detailed highs. The pendant speaker can provide a wide 120˚ dispersion pattern for broad area coverage. The pendant speaker is IP66 rated, making it suitable for both indoor and outdoor applications.

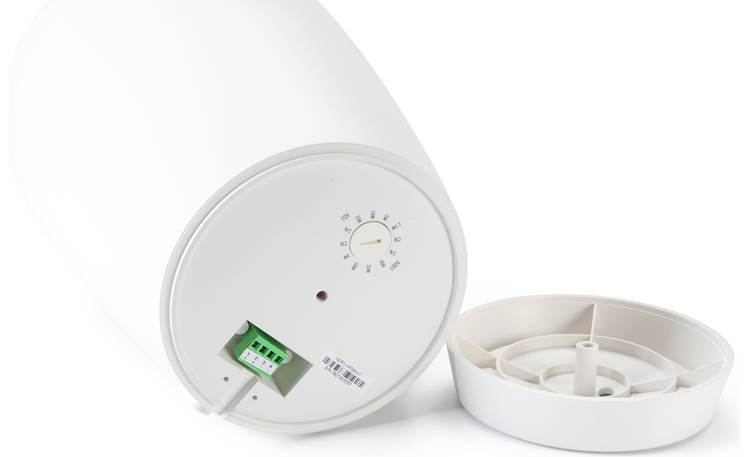

70/100V & 8Ω: The OSD Nero Arc 6 features a built-in 40 watt, 70/100V transformer for commercial applications. An 8Ω bypass also allows it to be used in a "standard" speaker configuration with up to 150 watts RMS power handling. A tap-dial on top of the speaker provides selections for the following:
- 70V: 2.5W, 5W, 10W, and 20W.
- 100V: 5W, 10W, 20W, and 40W.
- 8Ω: Bypass
Connection: Wiring connections to the Nero Arc 6 pendant speaker are made through a 4-pin Euroblock connector located on top of the speaker, accommodating speaker wire up to 14-gauge. Two pins are used for the connection from an amplifier while the other two pins are used for daisy-chaining the signal out to additional speakers. An included strain relief attachment helps prevent the wire connection from being pulled loose (speaker wire sold separately).
Mounting: Designed for pendant mounting, the Nero Arc 6 includes a 40" (3.3') suspension cable with two locking-carabiners. The cable attaches to the speaker using the provided eye-bolt that threads into the top of the speaker housing, while the other end can be attached to a mounting point in the ceiling. A top cover is provided to protect the tap dial and Euroblock wiring connector.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Got this to fill one side of a room ( other side has (2) Bose 251's. This Pendant speaker was so easy to install and sounds amazing. I'm now thinking I could have gone with 3 of these originally. Thanks to Aaron at Crutchfield for the suggestion. He was spot on!
Jude from Baton Rouge, LA
