About the Alpine RS-W10D4

Product highlights:

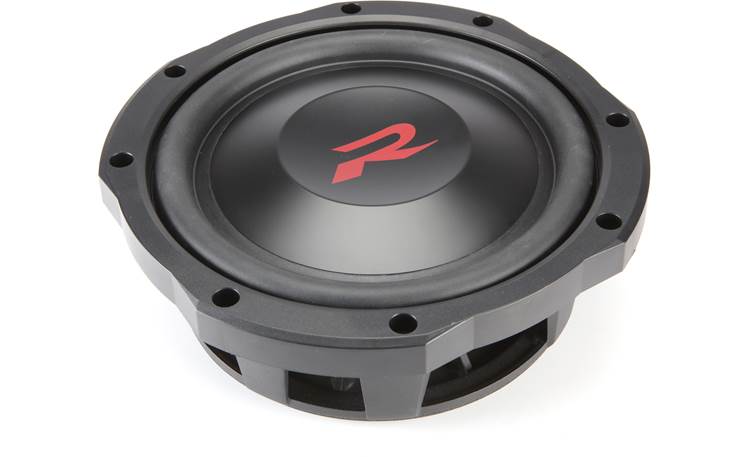

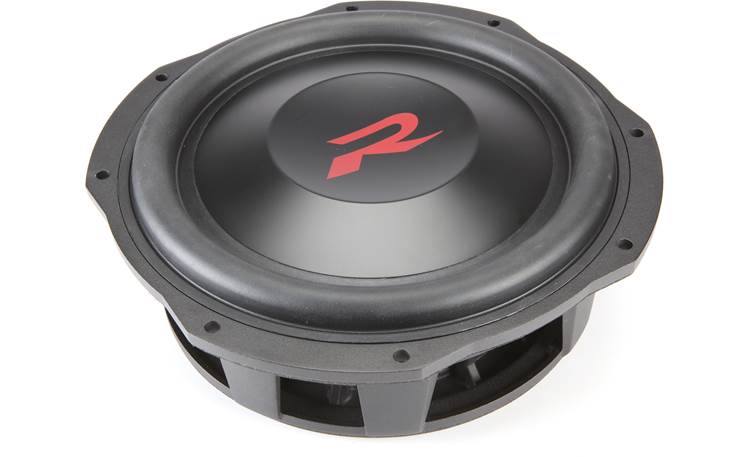

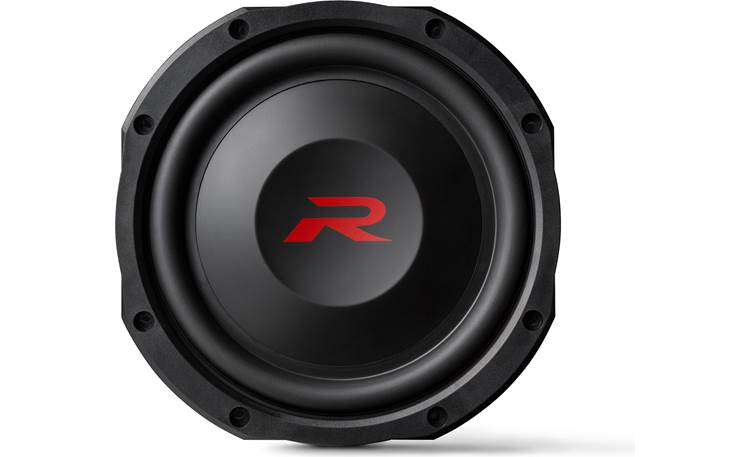

- 10" shallow-mount subwoofer with dual 4-ohm voice coils
- polypropylene cone with aluminum dust cap and butyl rubber surround
- cast aluminum frame
- frequency response: 25-100 Hz
- power handling: 600 watts RMS (300 watts per coil)
- peak power: 1800 watts
- sensitivity: 78 dB
- top-mount depth: 3.271"
- sealed box volume: 0.49-1.04 cu. ft.
- grille not included
- warranty: 1 year
- MFR # RS-W10D4
- Item # 500RSW10D4
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Alpine RS-W10D4 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" Dual 4-ohm voice coil shallow mount subwoofer

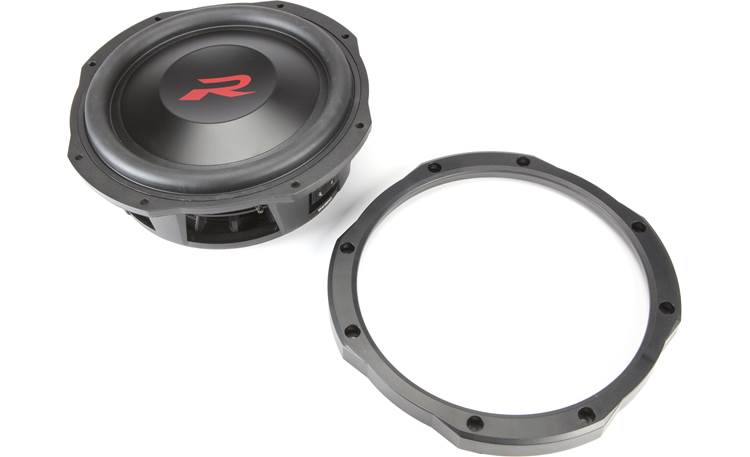

- Plastic trim ring
- Two 18" jumper wires (12-gauge)
- 2.5mm Hex key
- Application guide (English/ French)
- On-line product registration information
- Warranty information (English/ French)
- Important Notice (English/ French)
More details on the Alpine RS-W10D4

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 2, 8 | |
Cone Material | Polypropylene | |
Surround Material | Rubber | |
Basket Material | Cast Aluminum | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
78 dB at 1 watt | |
Frequency Response | 25 - 100 Hz | |
Max RMS Power Handling | 600 | |
Peak Power Handling (Watts) | 1800 | |
Top Mount Depth (inches) | 3 5/16 | |
Bottom Mount Depth (inches) | 3 5/8 | |
Cutout Diameter or Length (inches) | 9 5/8 | |
Frame Width | 11.178 | |
Frame Length | 11.178 | |
Vas (liters) | 23.35 | |
Fs (Hz) | 31 | |
Qts | 1.19 | |
Xmax (millimeters) | 20 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 0.49 | |
Maximum Sealed Box Volume (cubic feet) | 1.04 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Dual Voice Coils: For system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel the woofer presents a 2Ω load; when wired in series the woofer presents an 8Ω load.

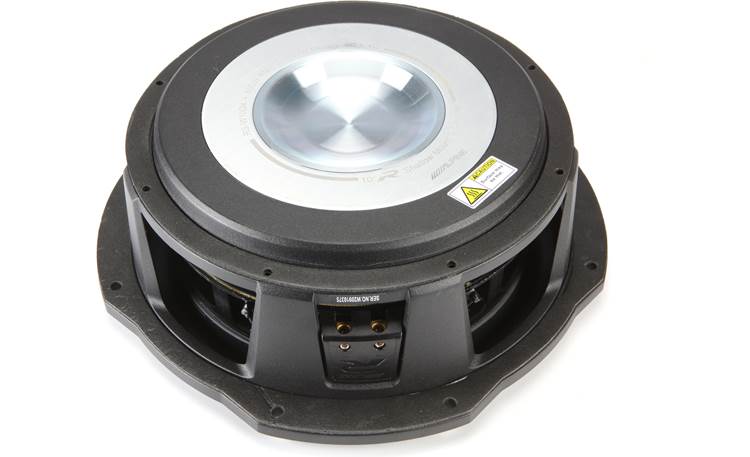

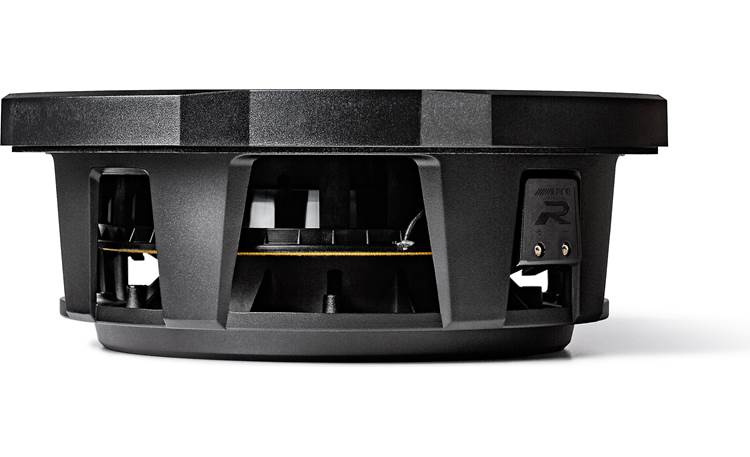

Terminals: The two pair of set screw terminals are located on opposite sides of the woofer frame and 18" lengths of positive and negative wire are included for wiring the voice coils in parallel or series. The terminals will accept bare wire up to 10-gauge.
Enclosure: Alpine recommends mounting the RS-W10D4 sub in a sealed box with a volume (gross) of 0.49 to 1.043 ft³. Three specific volumes are listed in the manual, 0.54 ft³ (-3 dB at 32 Hz), 0.79 ft³ (-3 dB at 30 Hz), and 1.04 ft³ (-3 dB at 28 Hz).
