Features

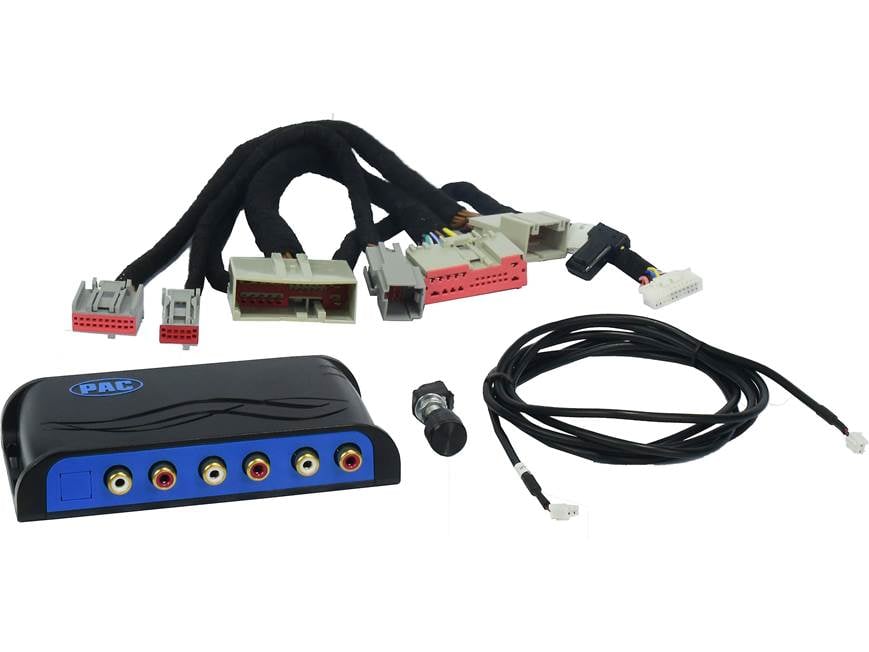

Amplifier Integration Interface: The PAC AmpPRO AP4-FD11 simplifies the installation of aftermarket amplifiers in select Ford & Lincoln vehicles with data-bus controlled factory sound systems. With the AmpPRO AP4-FD11, you can improve your vehicle's audio performance while keeping an original radio's fit, finish, and features.

Vehicle Compatibility: The PAC AmpPRO AP4-FD11 amplifier integration interface is compatible with the following 2007-2014 Ford & Lincoln vehicles with a data-bus controlled factory sound system (24-pin, 16-pin, & 8-pin MS-CAN connectors).

6Ch Pre-Outs: The PAC AmpPRO AP4-FD11 provides a 6-channel pre-amp output for use with aftermarket amplifiers. Using the full-range, fixed level factory radio output, in conjunction with data-bus CAN messages, the AP4-FD11 delivers a variable 5V RMS pre-amp output with fading, balance, equalization, and level control capabilities.

Non-Fading Level Control Knob: Channels 5-6 (Sub) of the AP4-FD11 are non-fading outputs. The output level of channels 5-6 can be controlled using the supplied level control knob. The level control knob comes with a 6' cable which plugs into the interface module and should be mounted in an accessible location.

Data Controlled Remote Turn-On: A data controlled remote amplifier turn on wire is also provided by the PAC AmpPRO AP4-FD11. The remote turn-on is rated at 2A of current. If more current is needed an external relay must be used.

Retained Factory Audio Features: The PAC AmpPRO AP4-FD11 also retains all audio from other vehicle features such as factory Navigation Prompts, Bluetooth, Sync, and Warning Chimes.

Minimum & Chime Volume: If the minimum volume of your factory radio is too loud once the AP4-FD11 is installed, you can manually set the level of the minimum volume using either the programming button on the side of the interface or the factory SWC (Steering Wheel Controls) in conjunction with the supplied level control knob. You can also use AmpPRO PC app. You can also adjust the chime volume level.

AmpPRO PC App: Using the AmpPRO PC App (for Windows PC only) allows you to configure user interface options such as Minimum Volume Level, Chime Volume Level, and a 3-Band EQ from your Windows computer or laptop. The app can also be used to update product firmware.

• Minimum & Chime Volume Level: From the app you can set the minimum volume level of the factory radio, as well as the chime volume level.
• 2-Band EQ: Enables the 2-band EQ (Bass & Treble) with frequency and Q-factory adjustment. The Bass Frequency can be set to 60, 80, 100, or 120Hz; while the Bass Q-Factor can be set to 0.5, 1.0, 1.5, or 2.0. The Treble Frequency can be set to 7.5k, 10k, 12.5k, or 15k; while the Treble Q-Factory can be set to 0.75 or 1.25.
• Firmware: The AmpPRO app will also allow you to update the interface with new firmware as it becomes available.

Dip Switch: Set dip switch 2 to "ON" to lower the RCA output voltage to 4V. Set the dip switch 2 "OFF" to keep the RCA output voltage at 5V. Dip switches 3-4 are used for troubleshooting Sync & Bluetooth. Dip switch 1 is not used.

Optional Toslink Add-On Module: When used in conjunction with PAC's APA-TOS1 (541APATOS1; sold separately), the AP4-FD11 can provide a variable 2-channel fiber optic digital audio output (toslink). Toslink fiber-optical cable also sold separately.

Optional Amplifier Harness: The APH-FD01 installation harness (541APHFD01, sold separately) simplifies speaker wire connections when using the PAC AmpPRO AP4-FD11 (sold separately) to add an aftermarket amplifier or amplifiers in select 2007-2017 Ford and Lincoln vehicles that feature factory amplified sound systems. The APH-FD01 keeps you from having to cut or modify your vehicle's original factory wiring, providing a direct connection at the vehicle's original factory amplifier location (you will need to make hardwire connections at the aftermarket amplifier/s).
