Garmin 2-Screen Panoptix Bundle

Includes two ECHOMAP™ UHD 93sv chartplotters, a Panoptix LiveScope™ scanning sonar system, two transducers, a mount, and network cabling

Item # 700GBASS2P

If you're serious about fishing, you know that the right electronics can mean the difference between a nice day on...

If you're serious about fishing, you know that the right electronics can mean the difference between a nice day on...

California customers:
Please click here for your Proposition 65 warning.

Item # 700GBASS2P

Shop all Garmin Marine GPS and Chartplotters

Need an expert?

Our Advisors know their stuff and love to help.

60-day price protection

We’ll reimburse you if the price drops.

Since 1974

Years of experience making people happy.

About the Garmin 2-Screen Panoptix Bundle

Dominic DeVito

A fish-finding combo for the hardcore angler

If you're serious about fishing, you know that the right electronics can mean the difference between a nice day on the water and a better day catching fish. That said, putting the pieces together can be challenging. That's why we've done the homework and built this Garmin fish-finding package for your bass boat. It features two 9" chartplotters, a Panoptix LiveScope scanning sonar system, two additional transducers, a mount, and everything you need to network them. It's designed to help you get to your spot, find the fish, and catch some big ones.

A fish-finding combo for the hardcore angler

If you're serious about fishing, you know that the right electronics can mean the difference between a nice day on the water and a better day catching fish. That said, putting the pieces together can be challenging. That's why we've done the homework and built this Garmin fish-finding package for your bass boat. It features two 9" chartplotters, a Panoptix LiveScope scanning sonar system, two additional transducers, a mount, and everything you need to network them. It's designed to help you get to your spot, find the fish, and catch some big ones.

Big chartplotters for the front and rear of your boat

This package leads off with a pair of Garmin ECHOMAP UHD 93sv 9" chartplotters — one mounted on the bow, the other toward the stern. They let you view their built-in maps, then toggle between the displays of each of the transducers to get the info you want. The high-contrast color display and auto-adjusting backlight help you see what's down there in any light.

Garmin echoMAP 93sv chartplotter

An ultra-accurate transducer that gets you where you need to be

Garmin's GT8HW-IH in-hull transducer is made for use while your boat is in motion, so it'll help you get to the hot spots in a hurry. It installs inside your boat's fiberglass hull (not on the transom, to avoid cavitation) and gives you accurate depth readings while you're tearing across the lake.

See what's down there before you even drop a line

Once you've picked a spot, the Garmin GT34UHD-TM transom-mount transducer gives you crystal-clear views of what's below and beside your boat, with Ultra High-Definition ClearVü and SideVü scanning sonar images. This transom-mount transducer makes it easy to scout an area before you put your bait in the water. With Ultra High-Definition ClearVü Scanning, you'll see structures and fish below your boat. Ultra High-Definition SideVü Scanning gives you amazingly clear images of what's off to the sides.

Panoptix LiveScope lets you see fish and structures with amazing clarity

With the Garmin Panoptix LiveScope scanning sonar system mounted on your trolling motor (the package includes a three-way perspective mode mount that gives you flexible options), you'll get a remarkable, almost photo-like view of wherever it's pointed. This transducer gives you two modes of Panoptix LiveScope imaging, so you can look at your chartplotter and see exactly what's happening down below in real time. You'll even be able to see fish reacting to your lure. Just don't take it personally — hey, they're fish.

LiveScope down gives you remarkably clear sonar images of structures and fish up to 200 feet below. LiveScope forward is an excellent tool for scouting and fishing out ahead of your cast. It can show real-time scanning sonar images of structures and fish swimming all around your boat — up to 200 feet away.

Keep it all connected

And to help link the chartplotters with the transducers, the package includes the handy Garmin GMS 10 network port expander. It also features the network cables you'll need, including a transducer Y-cable to ensure you're always covered if one of your transducers becomes ineffective due to cavitation or another reason.

Installation note: You may need to add power and ground wires for some of the devices; we can help you get them.

Need a different package? Just ask!

We realize this particular fish-finding combination may be a bit more than you need. If you're angling for a more appropriate solution, give one of our advisors a call at 1-888-955-6000 or chat with us online. We'll help outfit your boat with the right gear to make your next fishing expedition a success.


Product highlights:

  • Garmin package includes:
    • two echoMAP UHD 93sv chartplotters
    • Panoptix LiveScope scanning sonar system
    • GT8HW-IH in-hull transducer
    • GT34UHD-TM transom-mount transducer
    • perspective mode mount
    • GMS 10 network port expander
    • marine network cabling
    • transducer Y-cable

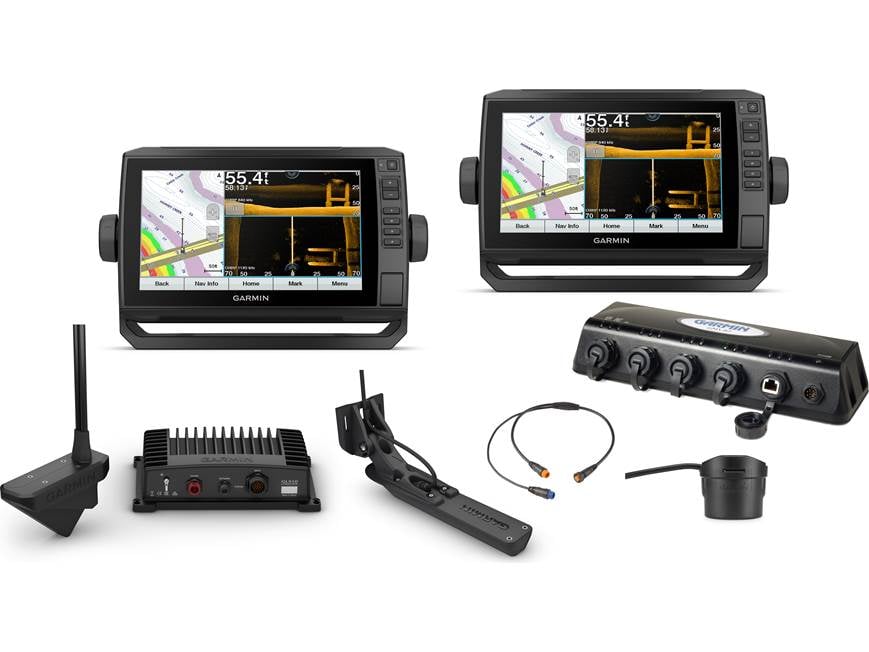

Two Garmin ECHOMAP UHD 93sv chartplotters
  • 9" chartplotter preloaded with Garmin LakeVü g3 HD maps
  • maximum depth: 1,100 feet (salt water), 2,300 feet (fresh water)
  • built-in Wi-Fi
  • multiple depth range shading
  • record up to 5,000 waypoints, 100 routes, and 50 tracks
  • warranty: 1 year
Garmin Panoptix LiveScope scanning sonar system
  • Panoptix LiveScope dual-mode transducer
  • equipped with both LiveScope Forward and LiveScope Down sonar
  • 200-foot max range below and around your boat
  • mounts to the transom, or to the shaft or motor barrel of your trolling motor
  • warranty: 1 year
Garmin GT8HW-IH in-hull transducer
  • 8-pin marine sonar transducer with 20' cable and in-hull fitting
  • equipped with high-wide CHIRP sonar (145-230 kHz) — 800-foot freshwater range
  • warranty: 1 year
Garmin GT34UHD-TM transom-mount transducer
  • marine sonar transducer with 20' 12-pin cable
  • Ultra High-Definition ClearVü sonar: 200-foot range below your boat
  • SideVü sonar: 125-foot range to either side of your boat (250-foot max) at 30-foot depth
  • depth and temperature readings
  • warranty: 1 year
Garmin perspective mode mount for Panoptix LiveScope
  • three-way mounting for three different real-time views of where the fish are
  • warranty: 1 year
Garmin GMS 10 network port expander
  • connect multiple chartplotters, MFDs, and systems with high-speed data transfer
  • water-resistant connections and sealed covers
  • warranty: 1 year
Garmin marine network cable (20 ft.)
  • warranty: 1 year
Garmin transducer Y-cable
  • connect multiple transducers to one chartplotter or fish-finder
  • warranty: 1 year

What's in the box:

  • The Garmin 2-Screen Panoptix Bundle includes the following separately packaged items:
  • Two (2) ECHOMAP UHD 93sv Chartplotters (Garmin item #010-02342-00) -- each box includes:
  • ECHOMAP UHD 93sv display/control unit
  • Display cover
  • Tilt mount cradle/base assembly
  • Rubber gasket (4 pieces)
  • Four 1" self-tapping screws
  • 6' Power/data cable (with in-line 3A fuse)
  • Ferrite bead
  • Owner's Manual
  • Quick Start Manual
  • Installation Instructions
  • UHD 9x Series Flush Mount template
  • Important Safety and Product Information
  • Garmin Support sheet
  • Garmin decal
  • The Garmin GT34UHD-TM scanning sonar transducer (Garmin item #010-12776-00) -- which includes:
  • GT34UHD-TM ClearVü/SideVü transducer with attached 20' cable (12-pin orange plug)
  • Transducer transom mount
  • Seven M4 x 8mm screws
  • Seven 4mm star washers
  • Transducer mounting bracket
  • M4.5 x 43mm bolt
  • Rubber flat washer
  • Silver flat washer
  • M4.5 Nylock Nut
  • M4.5 x 20mm mounting screws
  • Trolling Motor Mount
  • Metal hose clamp
  • 4 Plastic cable ties (5.5" length)
  • Cable entry cover
  • 2 Cable clamps
  • Four M4 x 12mm screws
  • Threaded collar
  • Gasket for threaded collar (red)
  • Transducer Transom/Trolling Motor Mount Installation Instructions
  • Transducer Transom Mount Template
  • Threaded collar instructions
  • The Garmin GT8HW-IH in-hull mount sonar transducer (Garmin item #010-12401-10) -- which includes:
  • Sonar transducer with attached 20' cable (Blue 8-pin female connector)
  • Protective collar
  • Rubber gasket (red)
  • 3" Diameter adhesive-backed foam in-hull mount
  • Instructions
  • Collar install instructions
  • The Garmin Panoptix LiveScope System sonar transducer (Garmin item #010-01864-00) -- which includes:
  • LiveScope GLS 10 sonar black box
  • Panoptix LVS32 transducer with attached 20' cable (21-pin plug)
  • 6.5' Marine network cable (4-pin connectors on each end)
  • 20" Network adapter cable (4-pin connector on one end and RJ-45 Ethernet plug on other end)
  • 4 Phillips head screws
  • Transducer mount bracket
  • Five M4 x 7mm Phillips head screws
  • 5 Star lock washers
  • Transom mount bracket
  • Three 20mm screws
  • Two M8 x 15mm hex-head bolts
  • 2 M8 Nylock nuts
  • 4 Flat washers
  • Trolling Motor Barrel mount bracket
  • Hose clamp
  • Shoulder screw
  • Rubber washer
  • Flat washer
  • 5mm Hex wrench
  • Trolling Motor Shaft mounting bracket (2-pieces)
  • Rubber pad
  • Four M6 x 25mm socket-head bolts
  • Torque sheet
  • 7.75' Marine power cable (with in-line 7.5A fuse) (2-pin female plug on one end and bare wire on other end)
  • Threaded collar
  • Red O-ring
  • Threaded collar instructions
  • Installation Instructions
  • The Garmin GMS 10 Network Port Expander (Garmin item #010-00351-00) -- which includes:
  • Marine network port expander
  • 7' Power cable with in-line 2A AGC fuse and 7-pin connector (bare wire on other end)
  • 2 L-brackets
  • Four M5 x 20mm bolts
  • Four M5 nylock nuts
  • 6' Marine Network cable (with RJ-45 plugs on each end)
  • 2 Snap-on cable collars
  • 2 Collar gaskets (red)
  • Grommet (1.25" diameter)
  • Owner's Manual
  • Bracket instructions
  • Collar Instructions
  • Grommet Instructions
  • The Garmin Marine Network Cable (Garmin item #010-10551-00) -- which includes:
  • 20' Garmin Marine Network cable with waterproof RJ-45 plugs on each end (with plug covers)
  • 2 Snap-on cable collars
  • 2 Collar gaskets (red)
  • Grommet (1.25" diameter)
  • Collar Instructions
  • Grommet Instructions
  • The Garmin Perspective Mode Mount (Garmin item #010-12970-00) -- which includes:
  • Shaft bracket rear half
  • Shaft bracket front half
  • Extension arm (port side)
  • Extension arm (starboard side)
  • Four M6 x 25mm Hex Socket Head Cap screws
  • Two M6 shoulder screws
  • 2 Flat washers
  • 2 Rubber washers
  • 5mm Allen wrench
  • Rubber insert (2" x 3-1/8")
  • Transducer sticker (port side)
  • Transducer sticker (starboard side)
  • Instructions
  • and The Garmin Fiberglass Boat Adapter Cable (Garmin item #010-12445-33) -- which includes:
  • Transducer Y-cable (12-pin transducer + 8-pin transducer to 12-pin sounder)

Customer reviews for Garmin 2-Screen Panoptix Bundle

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Garmin 2-Screen Panoptix Bundle

Mark G.

Product Research

Bundle Overview

Overview: The Garmin 2-Screen Panoptix Bundle is designed for the serious fisherman (and fisherwoman) to optimize your ability to haul in a boatload of fish. This bundle features two 9" chartplotters to help you locate your favorite spot, a Panoptix LiveScope scanning sonar system, and two additional transducers (one transom-mount and one in-hull mount) for finding where the big ones are, and the cabling you need to connect them all. The bundle includes the following:

ECHOMAP UHD 93sv Features

Overview: The Garmin ECHOMAP UHD 93sv (Garmin item #010-02342-00) is a chartplotter, preloaded with Garmin's exclusive LakeVü g3 inland maps with integrated Navionics® data and Auto Guidance technology. In addition, a built-in microSD slot lets you add more specialized and detailed charts and maps that are available from Garmin. The ECHOMAP UHD 93sv has a 9.0" (diagonal) full color touchscreen display that can be mounted in a variety of ways. The unit has a water rating of IPX7, and can withstand being splashed with water without worry, but unsuitable for prolonged immersion.

Display: The ECHOMAP UHD 93sv has a 7.8" (wide) x 4.8" (high), 9.0" diagonal full color touchscreen WVGA display with 400 x 800 pixels. It has a variable backlight adjustment (automatic or manual), with day and night color schemes that change automatically or you can set manually. With the large display, you can create custom combination pages with up to several different functions on the display at once. Display overall dimensions: Width 10.363", Height 6.478", Depth 1.84".

Keypad: In addition to touchscreen controls, the ECHOMAP UHD 93sv features several buttons for operating the device. The keypad consists of a power button, a plus/minus control for zooming in and out of a chart or view, and shortcut keys, numbered 1-4, that can be assigned to an active screen so you can open it instantly when pressed.

Global Positioning System: The ECHOMAP UHD 93sv has a built-in GPS receiver that collects data from overhead satellites to establish your current location. The GPS signal strength is indicated on the top of the screen in a bar graph (5 bars maximum). The device is equipped with a 5 Hz GPS receiver which refreshes its position and heading 5 times per second. In addition, the unit coordinates the timing of the sonar return in relation to the boat's position to give you amazingly accurate waypoints or for pinpointing fishing hotspots.

Charts and Maps: The unit is preloaded with Garmin's LakeVü g3 maps, with coverage of more than 17,000 inland lakes with up to 1' contours and Depth Range Shading for clearer lake floor view, and enabling you to view your target depth at a glance. Additional maps are available on microSD or download.

Quickdraw Contours: The ECHOMAP UHD 93sv features Quickdraw Contours software already installed on the device. This free software allows you to tailor the preloaded maps and create your own maps on the screen. While you fish, Quickdraw Contours creates the maps based on the sonar results from an attached compatible transducer. Compatible transducers include any Garmin Panoptix, HD-ID, DownVü, ClearVü or NMEA 2000-compatible. If you are using more than one transducer, you can choose which sonar device gives you the best results.

Mounting Options: The 93sv consists of a display/control unit and a tilting bail mount with a quick release feature. When you come off the water, just disconnect the display/control unit from the bail mount and go. No plugging or unplugging wires from the unit itself, as the cables plug into the quick-disconnect bail mount. You can also flush-mount the display/control unit into your dashboard. A flush-mount template helps you make the cut into the mounting location. A self-adhesive rubber gasket is provided for flush-mount applications. A snap-on cover protects the display/control unit when you're not on the water.

NMEA 2000: The ECHOMAP UHD 93sv can be connected to an NMEA 2000 network which can carry power and data along the same cable. If your vessel has an existing NMEA 2000 network, it should already be connected to power. The device can share data from other NMEA 2000 devices, such as sensors or a VHF radio, plus you may also be able to view fuel and engine data on the display. The necessary cables and connectors are sold separately.

Wi-Fi: The unit has built-in Wi-Fi that allows you to connect to the free Garmin ActiveCaptain app on your mobile device. ActiveCaptain has a OneChart feature for accessing and updating all of your charts and maps from your smartphone or tablet, as well as purchase new ones to use on the chartplotter. You can also receive notifications of phone calls and texts on the unit's display. ActiveCaptain also lets you keep in touch with fellow boaters to get first-hand information about points of interest near your route or destination. Separate ActiveCaptain and Mobile Quickdraw communities are available for feedback or for sharing your Quickdraw Contours data. The Garmin ActiveCaptain app is compatible with devices running Android 5.0 and up, or Apple iOS 11.0 or later.

Chart Views: The ECHOMAP UHD 93sv has LakeVü g3 inland maps pre-loaded into its memory. The Navigation Chart view shows the navigation data on the included maps with details including buoys, lights, cables, depth soundings, marinas, and tide stations in an overhead view. With optional premium charts, you can get a Fishing Chart view or several 3D views, including Perspective 3D, Mariner's Eye 3D, Fish Eye 3D, and Relief Shading.

Auto Guidance: The pre-loaded maps are integrated with Navionics® data and Auto Guidance technology to help you navigate to your destination. After you enter your desired destination, Auto Guidance scans your chart data, such as water depth and known obstacles, and uses your desired depth and overhead clearance to calculate a suggested path. You can manually adjust the path during navigation, if desired.

Note: Auto Guidance is designed for planning purposes only, and should not replace safe navigation operations.

Waypoints: You can mark and save up to 5000 waypoints into the unit's memory. Waypoints can be marked at your present location, or you can enter the coordinates to a waypoint at a different location. Each waypoint can be saved with a name, symbol, depth, and comments. Once a waypoint has been saved, you can select and navigate to its location. You can also measure the distance to the waypoint on the Waypoint Map.

Routes: A route is a sequence of waypoints or locations that leads you to your final destination. You can create and immediately navigate a route on the Navigation chart or the Fishing chart, or create a route by putting together a series of waypoints and turns. Up to 100 routes can be created and saved in the device.

Tracks: A track is a recording of the current path of your boat. You can designate a color for each track to differentiate them from each other. Tracks are created by automatically marking the current location at a set interval. The interval can be adjusted--recording more frequent plots increases accuracy, but fills up the track log quicker. You can also record tracks by the distance between points, or the variance from your course. You can log and save up to 50 tracks with 50,000 points.

Boundaries: Boundaries allow you to remain in or avoid designated areas in a body of water. You can set up an alarm to alert you when you enter or exit a boundary. Boundaries can be areas, lines, or circles on the map. Saved tracks and routes can also be converted into boundary lines.

Other Available Data: The ECHOMAP UHD 93sv lets you view data on tides, currents, and celestial conditions for a specifice date and time:

  • Tide Station Info: You can view tide height, and the times when the next high and low tides will occur.
  • Current Station Info: You can view current speed and the level of the current.
  • Celestial Info: Information regarding sunrise, sunset, moonrise, moonset, moon phase, and the approximate sky view location of the sun and moon can be viewed on the screen.

Panoptix LiveScope System

Overview: The Garmin Panoptix LiveScope System (Garmin item #010-01864-00) is an add-on sonar transducer for select GPSMAP and ECHOMAP Plus chartplotters. The system consists of the LVS32 LiveScope Sonar Transducer and the GLS 10 Sonar Module. The slim-profile transducer is designed to install on a trolling motor, on the trolling motor shaft, on on the transom to help you see live images of what is happening under the water beneath your boat, up to 200 feet away. The LiveScope system utilizes AHRS (Attitude Heading Reference System) to stabilize the sonar view on your chartplotter's screen, even in rough conditions. The LVS32 offers two Panoptix LiveScope modes--Forward and Down. It comes with 20 feet of cable, and mounting brackets for motor, shaft, or transom installation. The Sonar Module provides power to the transducer, and sonar signals to your chartplotter.

Panoptix LiveScope Sonar: Panoptix LiveScope sonar gives you a real-time, realistic view of what's in the water around or under your boat. Panoptix LiveScope sonar is effective whether your boat is moving or stationary. Other types of sonar require your boat to be moving, and show images of fish you have already passed over. Panoptix LiveScope sonar has a narrow 20° beam angle for crisp, improved resolution and clear images, out to 200 feet. The LVS32 offers the choice of two LiveScope options:

  • LiveScope Forward: LiveScope Forward lets you see structure and fish ahead and around your boat. You can also see your lure, and how fish react to your lure. When the transducer is mounted for LiveScope Forward mode, it should be angled forward and slightly downward.
  • LiveScope Down: LiveScope Down shows moving sonar images below your boat, and allows you to pinpoint your targets' distance left or right and their depths. It is recommended for vertical fishing and jigging. For LiveScope Down mode, the transducer is mounted facing straight down.

Mounting Options: The Panoptix LiveScope system comes with the hardware for mounting the transducer in a variety of ways. It can be mounted to either the starboard or port side, with a forward or downward view. The available mounting methods are as follows:

  • Trolling Motor Mount: The Trolling Motor mount provides the maximum unobstructed view of the sonar beam. The mount includes a hose clamp and bracket for installing the transducer directly to the side of trolling motor. This is the preferred mounting method for the LiveScope Down mode, or if you plan to switch between the forward and down modes.
  • Trolling Motor Shaft Mount: Mounting the transducer to the trolling motor shaft is the preferred method for the LiveScope Forward mode. It provides maximum separation between the motor and the transducer, which optimizes the performance of the magnetic compass function. The trolling motor shaft bracket features an 8° cant to reduce the effects of the trolling motor barrel interference with the transducer beam.
  • Transom Mount: Brackets are included for mounting the transducer to the transom. Care should be taken when mounting the brackets on fiberglass with screws to avoid cracking the gel-coat layer when tightening the screws.

LiveScope GLS 10 Module: The LiveScope GLS 10 sonar "black box" can be mounted horizontally or vertically to any flat surface. Four "keyhole" slots are provided to secure the module to the mounting surface. It features four connections across the front panel: ground, power (2-pin threaded connection / connects to battery and ground), Network (threaded 9-pin connection / connects to chartplotter), and Transducer (threaded 21-pin connection / connects to transducer). The GLS 10 has a status LED to inform you of its current conditions. The LED flashes green to indicate proper connection and operation, and orange during software updates. Red flashes indicate some type of failure, either by an incorrect connection, excessive input voltage, or other sonar failure.

Software Update: Before installing the Panoptix LiveScope system to your chartplotter, you may need to update your device's software. New chartplotter software is available on the Garmin website. If the chartplotter has Wi-Fi technology, you can update the software using the ActiveCaptain app (available for Android or Apple iOS devices). If it doesn't have Wi-Fi, you can download the new software to a memory card, or request a preloaded software memory card from Garmin support. Follow the instructions for updating the software for your device.

Compass Calibration: If you wish to use the magnetic compass feature, you must mount the transducer on the trolling motor shaft, and not on the motor itself to avoid magnetic interference. Once you have installed the transducer, you will need calibrate the compass. Failure to do so may cause errors in your boat's position and heading, and may prevent some map features to be unavailable. You should follow the procedure for calibrating the sonar on your chartplotter.

Maintenance: From time to time, you may need to clean the transducer if aquatic growth affects the device's performance. It can be cleaned with a soft cloth and mild detergent. For severe growth, you can use a scouring pad or putty knife to remove it.

Panoptix LiveScope Specifications:

  • GLS 10 Sonar Module:
    • Dimensions: Width 9.625", Height 2.515", Depth 5.853"
    • Weight: 4 pounds 7.8 ounces
    • Temperature Range: Operating: 5°F to 158°F; Storage: -40°F to 185°F
    • Power Input: 10 to 32 Volts DC
    • Power Usage: 21W typical, 24mW minimum, 58W maximum
    • Compass-safe Distance: 7"
    • Data Output: Garmin Marine Network
  • LVS32 Transducer:
    • Dimensions: Width 1.759", Height 3.794", Depth 5.374", Cable Length 20 feet
    • Weight: 2 pounds 5.8 ounces w/cable
    • Frequencies: From 530 to 1.1 MHz
    • Temperature Range: Operating: 32°F to 104°F; Storage: -40°F to 185°F
    • Maximum Depth/Distance: 200 feet
    • Field of View:
      • Front-to-Back: 135°
      • Side-to-Side: 20°

GT34UHD-TM Features

Overview: The 500-watt Garmin GT34UHD-TM Ultra High-Definition scanning sonar transducer (Garmin item #010-12776-00) provides high resolution ClearVü and SideVü scanning sonar images with remarkably clear target separation and definition. You can view incredibly detailed images of fish and structure up to 200' below your boat with 800kHz ClearVü sonar. The 1200kHz SideVü sonar gives you views out to 125' to each side (250' total) at a maximum depth of 30 feet. It also transmits depth and temperature data to your display. The GT34UHD-TM comes with both transom and trolling motor mounts, and has a 20' attached cable with a 12-pin connector.

CHIRP Sonar: Compared to standard sonar, which sends one frequency at a time, CHIRP (Compressed High-Intensity Radiated Pulse) sends a continuous sweep of frequencies within a range from low to high. As a result, CHIRP sonar creates much greater target separation and crisper fish arches. Traditional sonar transducers emit a conical beam, while ClearVü sonar casts two narrow beams, similar to that of a copying machine.

GT34UHD-TM Specifications:

  • Frequencies Supported:
    • Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
    • Ultra High-definition SideVü: 1200 kHz (1080-1170 kHz)
  • Transmit Power: 500 watts (RMS)
  • Beamwidth:
    • ClearVü: 0.76° x 46° @ 800 kHz
    • SideVü: 0.44° x 55° @ 1200 kHz
  • Maximum Depth:
    • Ultra High-Definition ClearVü: 200 feet
    • Ultra High-Definition SideVü: 125 feet to each side (250 feet total) at a maximum of 30 feet
  • Supported Deadrise/Transom Angles: 0° to 70° transom
  • Operating Temperature Range: 32° to 122°F
  • Storage Temperature Range: -40° to 158°F
  • Dimensions: Width 1.503", Height 1.227", Length 7.787"

GT8HW-IH Features

Overview: The Garmin GT8HW-IH (Garmin item #010-12401-10) is an in-hull mount sonar transducer. This 8-pin transducer has high-wide CHIRP traditional sonar (145-230kHz) and a 250-watt power rating. You can mount it in a flat section (less than 6° rise) inside a fiberglass hull to avoid cavitation issues common with transom-mounted transducers. It is an excellent way to maintain accurate depth readings in boats travelling at high speeds. With the Garmin Y-cable (010-12445-33), included in this bundle, you can use the GT34UHD-TM transom-mount transducer with the GT9HW-IH in-hull transducer to get depth readings at high speeds and scanning at trolling speeds. The GT8HW-IH has an attached 20' cable with a blue 8-pin connector, and an adhesive-backed foam in-hull fitting.

GT8HW-IH Specifications:

  • Frequency: CHIRP High Wide (145-230kHz)
  • Power: 250 watts
  • Beamwidth: 24° - 16°
  • Maximum Depth: 800 feet (freshwater)
  • Number of Pins: 8-pin
  • Supported Deadrise Angles: 0° to 6°
  • Dimensions: Diameter 2" Height 1.753"
  • Cable Length: 20 feet
  • Weight: 9.35 ounces

GMS 10 Network Port Expander Features

Overview: The Garmin Marine Network is a high-speed data system that lets you connect multiple components and sensors together aboard your vessel. This fast network is anchored by compatible GPSMAP chartplotters with built-in network links. Network-compatible components include GPS units, detailed charts, radar, sonar, satellite weather receivers, and other sensors. This GMS 10 Network Port Expander (Garmin item #010-00351-00) lets you share data between multiple sensor and multiple chartplotters. The switch operates at a blazing 100-megabits to give you Ethernet-like data transfer speeds for a robust network. Each multi-function display (MFD) can be independently configured with customizable pages. Installing multiple MFDs makes it easier to access the network from anywhere on your boat. The GMS 10 has five RJ-45 network ports, each with a waterproof cap, and comes with a 6' Marine Network cable. The Expander is powered by the included 7-foot, 7-pin cable (10-35 volts DC). The unit is 11.841" x 2.267" x 4.168", and weighs 19.75 ounces.

Multiple Connections: The GMS 10 makes it easy to expand your network. Most chartplotters have two network ports, so if you need to connect more network devices, or additional chartplotters, the Network Port Expander is the solution. Using two Expanders allow connection and data sharing between even more sensors and chartplotters.

LED Indicator Lights: Above each network port are three LED indicator lights:

  • LNK/ACT: When the light is lit solid, a link has been established between the Expander and the attached device. A flashing light indicates the presesnce of network activity.
  • DUP/COL: When the light is lit solid, the attached device is operating at full network capacity. When the light is off or flashing, the device is operating at half capacity.
  • 100: When the light is on, the network is running at 100 megabits per second. Off means it it running at 10 megabits per second.

Network Cables: The Garmin Marine Network cables allow you to connect the chartplotters and sensors on your vessel to the Port Expander. The cables feature marine-construction capable of withstanding harsh conditions. Both ends of the cable are equipped with water-resistant RJ-45 Ethernet connectors, complete with protective collars and gaskets. A 1.25" diameter grommet is included for passing the cable through walls. Additional cables are available in 6' and 20' lengths.

20' Marine Network Cable

Overview: The Garmin Marine Network cable (Garmin item #010-10551-00) allow you to connect multiple chartplotters and sensors on your vessel. You can add accessories anywhere you need them. This 20' cable features marine-construction capable of withstanding harsh conditions. Both ends of the cable feature water-resistant RJ-45 Ethernet connectors, complete with protective collars and gaskets. A 1.25" diameter grommet is included for passing the cable through walls.

Perspective Mode Mount

Overview: The Garmin Perspective Mode Mount (Garmin item #010-12970-00) works with the Panoptix LiveScope scanning sonar system to add an overhead (or perspective) sonar view to the down and forward views provided by the LVS32 transducer. The overhead view works well for scouting and fishing in shallow water. The mount lets you easily switch between the three views, while your chartplotter automatically detects which mode you're in (Note: Auto-detection is not a feature on all chartplotters). The Perspective Mode Mount comes with the hardware necessary to mount the transducer, whether you prefer it on the port or starboard side of the trolling motor shaft. A 5mm hex wrench is included to tighten the bolts during installation. Dimensions: Width 2.342", Height 3.554", Depth 6.002".

Software Update Required: When you install the Perspective Mode Mount, you must update the software on the Garmin chartplotter and the LiveScope system. You can update the chartplotter via Wi-Fi, using the ActiveCaptain app on a compatible Android or Apple device. If you don't have Wi-Fi, you can use your Windows or Mac computer to load the software onto an SD (or microSD) card, whichever card your chartplotter accepts.

Installation: The Perspective Mode Mount comes with extension arms marked with "P" or "S" for mounting the transducer on the port or starboard side of the trolling motor shaft. The shaft bracket fits standard sized shafts. If mounting to a 1" diameter shaft, you should use the included rubber insert for a non-slip fit. The included stickers are to be attached to the LiveScope's LVS32 transducer -- one sticker is for mounts on the port side and the other is for starboard side mounts. Once the LVS32 is attached to the mount, you can position the transducer for Perspective (overhead), Down, or Forward view, whichever one you believe works best for the fishing location. The position of the extension arm corresponds with the marks on the sticker for the chosen view. A compatible chartplotter should be able to automatically detect the view you have chosen.

Fiberglass Boat Adapter Cable

Overview: The Garmin Fiberglass Boat Adapter Cable (Garmin item #010-12445-33) is a Y-cable that lets you connect the Garmin GT34 transom-mount scanning transducer and the GT8HW-IH in-hull mount traditional transducer to the Garmin chartplotter. The cable lets the chartplotter continue to display water depth from the in-hull transducer when the transom-mount transducer loses its depth reading. Overall length is 31"

Connections: The Y-cable has a 12-pin female (orange) connector, which connects to the transducer (12 PIN XDCR) input on the chartplotter. It has a threaded collar to securely connect the cable to the chartplotter's threaded input. The other end of the cable has two connectors: a 12-pin male (orange) connector for the GT30 transom-mount transducer, and an 8-pin male (blue) connector for the GT8HW-IH in-hull mount transducer. Both connectors are threaded to accept the threaded collar from the transducer cable for a secure connection.

Loading accessories...

Customer Q&A

Loading articles...

Compare the sound
