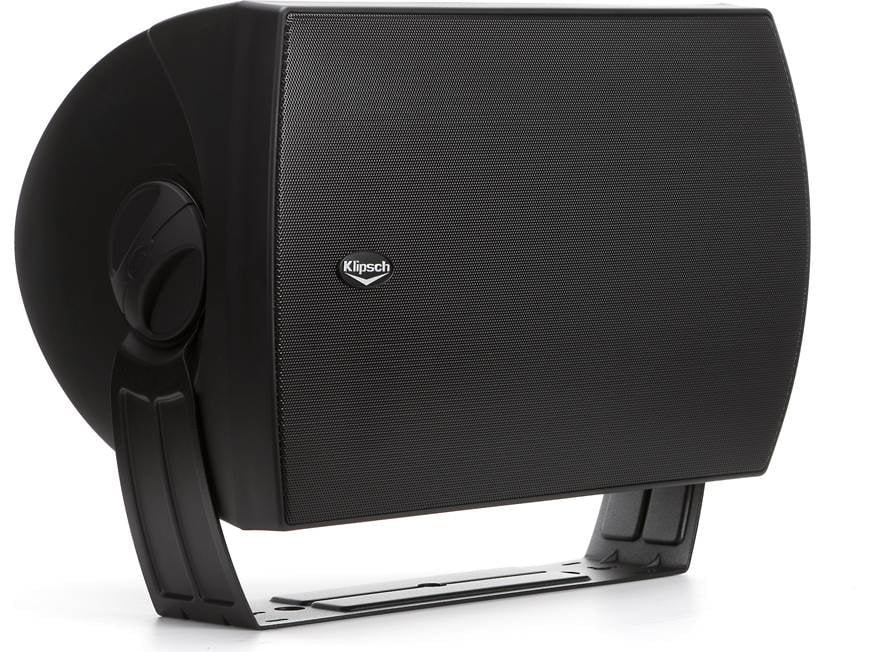

Klipsch CA-800-TSW 8" commercial weather resistant surface mount subwoofer (Black)

Item # 714CA8HSWB

Add deeper, punchier bass to your commercial outdoor speaker system with the Klipsch CA-800-TSW.

Add deeper, punchier bass to your commercial outdoor speaker system with the Klipsch CA-800-TSW.

California customers:
Please click here for your Proposition 65 warning.

4 questions - 10 answers

Item # 714CA8HSWB

Shop all Klipsch Commercial Speakers

About the Klipsch CA-800-TSW

James Ralston

Deep, punchy bass in the great outdoors

Add deeper, punchier bass to your commercial outdoor speaker system with the Klipsch CA-800-TSW. This all-weather subwoofer features multi-tap transformers for use with 70-volt or 100-volt distributed audio systems, or you can set it to "bypass mode" for use with more traditional home audio equipment.

Get started with
a free system design

After we gather your information, we'll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.

Give us a call
Submit a design request
Tell us about your space

Klipsch CA-800-TSW

An integrated bracket gives you flexible mounting options.

Deep, punchy bass in the great outdoors

Add deeper, punchier bass to your commercial outdoor speaker system with the Klipsch CA-800-TSW. This all-weather subwoofer features multi-tap transformers for use with 70-volt or 100-volt distributed audio systems, or you can set it to "bypass mode" for use with more traditional home audio equipment.

The sub's 8" IMG (injection-molded graphite) woofer delivers solid bass. A built-in 150 Hz low-pass crossover allows the CA-800-TSW to blend in properly with your full-range outdoor speakers. Pair it with Klipsch's CA650T or CA800T outdoor commercial speakers for a full-range system with bass impact. See what our satisfied customers have to say.


Product highlights:

  • enhances bass in your outdoor speaker system
  • 8" IMG (injection-molded graphite) woofer with rubber surround
  • handles up to 150 watts
  • frequency response 51-135Hz (±4dB)
  • weather-resistant enclosure
  • attached "C-style" bracket for easy wall mounting
  • multi-tap transformer allows use with 70V or 100V commercial distributed audio systems
  • 70-volt transformer taps at 3.7, 7.5, 15, 30, and 60 watts
  • 100-volt transformer taps at 7.5, 15, 30, and 60 watts
  • bypass setting for use with traditional home audio receivers and amps
  • 8-ohm impedance
  • sensitivity 92 dB
  • built-in 150Hz low-pass crossover
  • cabinet and grille can be painted to match your decor
  • 11-1/16"W x 16-5/8"H x 12-3/8"D
  • weight: 20 lbs.
  • warranty: 5 years
  • MFR # 097149000001

What's in the box:

  • Black outdoor subwoofer with removable mounting bracket
  • 2 Lock-nuts
  • Owner's Manual
  • Warranty Card
  • "Lock-nuts" note

Customer reviews for Klipsch CA-800-TSW

Loading reviews...

Average review:

4.5 out of 5 stars
23 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Klipsch CA-800-TSW

Russ B.

Features & specs

Drivers per speaker 1
Woofer Size (inches) 8
Tweeter Size (inches) N/A
System Frequency response 51-135
Maximum SPL 111 cont.
Power Handling
Power rating 150
Peak Power rating 0
Width (inches) 11-1/16
Height (inches) 16-5/8
Depth (inches) 12-3/8
Weight 20 lbs

Product Research


Commercial Outdoor Sub: The Klipsch CA-800-TSW is an all-purpose, all-weather subwoofer that delivers low frequency sound in outdoor applications. This subwoofer has been designed to complement the Klipsch CA Series and other small to medium-sized full-range speaker installations. The CA-800-TSW can deliver strong bass response in a variety of applications.

8" Woofer: The CA-800-TSW's 8" woofer is constructed form UV-resistant, glass-reinforced polypropylene and is durable against the elements. The Klipsch CA-800-TSW delivers a deep, accurate bass through its 8-inch, long excursion driver that has a high-temperature voice coil attached to an IMG cone which is light weight and offers excellent rigidity and water resistance. The 8" woofer can handle up to 150 watts.

Crossover: The CA-800-TSW incorporates a built-in low-pass crossover that ensures a seamless blend between the subwoofer and your high-frequency outdoor speakers. The Klipsch all-weather subwoofer features an integrated 12dB/Octave low-pass fixed at 150Hz.

Vented Weather Resistant Enclosure: The 8" woofer is housed inside a bass-reflex, UV-resistant, all-weather ABS enclosure for added efficiency and bass response. The Klipsch CA-8000TSW's enclosure is paintable and features a rustproof aluminum grille, which is also paintable. The grille stays securely fastened and incorporates a new paint formulation for increased weather resistance and years of maintenance-free protection regardless of the climate or environment.

Multi-Tap Transformer: The CA-800-TSW includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8-ohm operation for installations that do not require a transformer. The switch is on the back of the speaker and can be set using a small flat-head screwdriver.

Connections: The Klipsch CA-800-TSW is equipped with 4 barrier-strip, gold-plated connectors for connecting the subwoofer to your amplifier.

Placement:  The Klipsch all-weather subwoofer is perfect for patios, decks, swimming pools, porches, or an other place where exposure to the elements make conventional loudspeaker usage unsuitable. The CA-800-TSW can be installed in a variety of locations due to bass frequencies being less directional than high frequencies. You will achieve better results if it is installed in  a corner or near a wall where additional energy can be reflected from the walls.

Mounting: The Klipsch CA-800TSW comes supplied with a removable C-style mounting bracket. The included heavy-gauge powder-coated zinc C-bracket provides added mounting strength. This bracket attaches to the subwoofer with the supplied low profile knobs that thread onto the top and bottom studs protruding from the cabinet.  This allows the subwoofer to be angled to the left or right when mounted vertically, or up and down when mounted horizontally. The additional 3/8"-16 threaded insert allows for use with optional mount brackets to offer even better placement flexibility.

Loading accessories...

Customer Q&A

4 questions already asked

Can I pair this sub with my KHO -7s? I'm also using the Klipsch Powergate amp. Would I need to get anything else?
steve  Nov 25, 2019
1 answer
We have a specialized group of advisors that handles commercial audio gear. You should reach out to them at 800-315-2758.
thomas  Dec 16, 2019 (Staff)
How do I wire this with a pair of existing aw650 speakers?
reid  Sep 19, 2019
1 answer
If you purchased the product from Crutchfield, feel free to contact our Tech Support team. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
kristina  Sep 26, 2019 (Staff)
I am concerned with the SPL considering it's only a 8" sub. I am not looking for a Boom'y sound or anything but have never purchased anything smaller than a 10" Before, with 12" being my 'norm' How does this sound compared to a 'normal' Sub?
vincent  Jan 01, 2019
5 answers
Yes, buy it you will love it !!! I have had it about a year. Dennis
dennis  Jan 08, 2019
For me. I am using it to fill in the low end between 2 Bose 251 outdoor speakers. They seemed a little bright. Within 10 feet of this sub you can hear it bark. Like port noise.It's awful. But from 10 to 70 feet away it makes a huge difference in giving me the low end. But by no means does it give me a hard hitting in my book like my JLAUDIO gives me in my vehicles. I used the recommended russound amp. But the port noise is really bad. I am considering replacing it this season.
greg  Jan 02, 2019
I forgot to add that I am using a separate subwoofer amp to power my outdoor sub. That makes the sub work best.
j.t.  Jan 02, 2019
I am using this sub outdoors on my patio. It gave me the bass I needed to balance my outdoor system. It has some "boom" but you will find that it's not going to rattle windows like your 12" sub. I have a Klipsch SW 120 on the surround sound in my family room that provides as much (or more) bass as I need and you know you have something special when it's cranked up. I am very happy with the outdoor sub you are asking about. The 800 is built to take the weather so that is a great choice for an outside system.
j.t.  Jan 02, 2019
For an outdoor sub it works great. Placement is key
daniel  Jan 01, 2019
I am having a problem connecting and getting any kind of sound out of my sub. It is connected to an onkyo receiver and a Russound 75 amplifier. I also have 2 Atrium 5 speakers attached. I called Crutchfield and got 2 separate set of advice and sad to say it still does not work ( I think it's me)?
garth a  Jun 10, 2017
3 answers
Hi Garth. Are you connecting the Klipsch CA-800-TSW using a Voltage Source or connecting it to a Subwoofer Power Amp? I connected my Klipsch CA-800-TSW using a Danton Audio SA230 Subwoofer Power Amp. I stood the Klipsch CA-800-TSW on end with the Klipsch Label on the Face Plate down, connected the Positive (+) Wire to the Top Positive (+) Terminal on the speaker and the Negative (-) Wire to the Bottom Negative (-) Terminal on the speaker. It is Very Important that you MUST Make Sure that the Rotary Switch on the Back of the Speaker is Set to The BYPASS POSITION. If you are using the setup that I am using (Klipsch CA-800-TSW setup as a Passive Speaker and being powered with a Subwoofer Power Amp), make sure that your Subwoofer Power Amp is capable of running a 4 ohm Speaker. Best of luck Ron
ronald  Jun 12, 2017
Yes I do thank you for your response. However Crutchfield was able to help me the switch on the sub needed to be moved to the "bypass" position once that was done great music and sounds
garth a  Jun 11, 2017
This may be a dumb question but do you have a cable connecting the reciever to the Russound amp
mark  Jun 10, 2017
