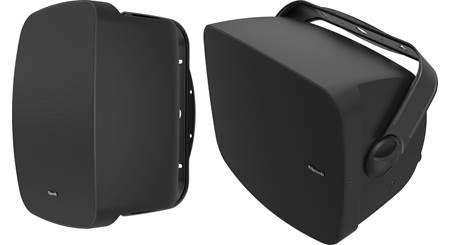

About the Klipsch RSM-800
Product highlights:
- 8" injection-molded polypropylene woofer
- 1" titanium compression driver
- Tractrix® Hyperfold Port™ for clear, powerful bass
- frequency response 52-20,000 Hz (±4dB)
- sensitivity: 92 dB
- impedance: 8 ohms
- handles up to 100 watts of continuous power
- paintable cabinet made of all-weather ABS plastic
- IPX6-rated weather-resistant
- five-way binding posts
- detachable grilles with set-screws for a secure fit
- rotating logo for horizontal or vertical installation
- adjustable "C-style" bracket for easy wall-mounting
Dimensions and warranty:
- 11-7/8"W x 15-1/2"H x 11-5/16"D (including bracket)
- weight: 15.75 lbs.
- warranty: 5 years
- MFR # 1072017
- Item # 714RSM800B
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Klipsch RSM-800 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Outdoor loudpeakers (black)
- 2 Grilles (pre-installed)
- 2 Mounting brackets (pre-installed)
- 4 Bracket knobs (pre-installed)
- Four 6mm screws
- Owner's Manual
More details on the Klipsch RSM-800
Features & specs
| Installation & setup | ||
|---|---|---|
| Type | Surface Mount | |
| Built-in amplification | No | |
| Bluetooth | No | |
| Wall-mountable | Yes | |
| Bracket included | Adjustable bracket | |
| Connector type | Spring post | |
| Driver details | ||
| Tweeter type | Horn-loaded dome | |
| Tweeter size (inches) | 1 | |
| Midrange size (inches) | N/A | |
| Woofer size (inches) | 8 | |
| Woofer composition | Polypropylene | |
| Woofer surround | Rubber | |
| Audio specs | ||
| Power range (watts) | up to 100 | |
| Sensitivity | 92 dB | |
| Impedance (ohms) | 8 | |
| Frequency response | 52-20k Hz | |
| Enclosure | Ported | |
| Dimensions & other info | ||
| Height (inches) | 11-7/8 | |
| Width (inches) | 15-1/2 | |
| Depth (inches) | 11-5/16 | |
| Weight (pounds) | 15.75 | |
| Parts warranty | 5 Years | |
| Labor warranty | 5 Years | |
Product Research
Features
IPX6 Rated: The Klipsch RSM-Series RSM-800 outdoor loudspeaker is IPX6-rated, making it water and weather resistant. It its protected against the most challenging weather conditions; including heavy rain fall, snow, sleet, and ice. the RSM-Series speaker can be used in outdoor or indoor applications.
Note: The RSM-800 outdoor loudspeaker is water and weather resistant, but should never be submerged into water.
2-Way Driver Design: The Klipsch RSM-800 loudspeaker utilizes a 2-way driver design that features a horn-loaded 1" titanium dome tweeter and an 8.0" polypropylene cone woofer for dynamic, full-range sound.
- 1" Titanium Dome Tweeter: The RSM-800 outdoor speaker features an all-new 1" horn-loaded titanium dome tweeter mounted on a floating driver bridge in the center of the woofer. Using Klipsch patented mumps technology and a wide dispersion phase plug, the horn-loaded titanium dome tweeter delivers a 100 x 100 degree dispersion pattern for a much wider soundstage.
- 8.0" Polypropylene Cone Woofer: The Klipsch outdoor loudspeaker also houses a 8.0" polypropylene cone woofer for articulate midrange and deep bass performance outdoors.
Tractrix Hyperfold Port: The RSM Series outdoor speaker utilizes Klipsch's all-new patented Tractrix Hyperfold Port engineered to extend port length for maximum bass power via a proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas
ABS Enclosure With Aluminum Grille: The RMS-800 loudspeaker employs a rugged ABS enclosure for high performance outdoor sound. The included aluminum grille is mounted to the speaker cabinet with sets screws to ensure a secure fit regardless of the outdoor environment. The RMS-800 is available in a black or white finish. However, you can paint the enclosure and grille to better match your outdoor space.

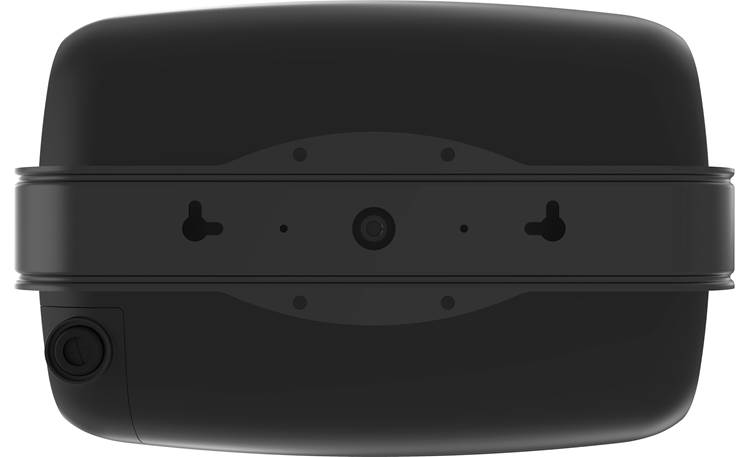

Spring Post Terminals: The Klipsch RSM-800 outdoor speaker is outfitted with a set of spring post terminals that will accommodate bare wire (up to 12AWG). The spring post terminals are located on the back of speaker enclosure behind the mounting bracket and are protected by a removable cover. The cover features a rubberized opening for the speaker wire to pass through.
Mounting Options: The Klipsch RSM-800 speaker can be mounted outdoors or indoors using the included bracket system. The mounting bracket system is corrosion resistant powder coated zinc and offer great placement flexibility. It allows you to rotate the speaker almost 180 degrees after it's been mounted, letting you direct the sound to different areas as needed. If the speaker is mounted vertically, the bracket allows it to swivel side to side. If the speaker is mounted horizontally, the bracket allows it to swivel up and down. The speaker's shape and mounting bracket design even makes corner placement easy.
- Speaker & Bracket Dimensions: 15.5" (w) x 11.875" (h) x 11.3125" (d)
- Speaker Only Dimensions: 15.375" (w) x 11.875" (h) x 9.375" (d)
- Weight: 15.75 lbs
Note: There is also a 3/8" threaded insert on the back of the speaker cabinet that can be used with other types of wall-mount brackets (sold separately - not available at Crutchfield).
Loading...
Loading accessories...
Customer Q&A
2 questions already asked
Loading...
Loading articles...
Upgraded from AW-650 which were great patio speakers for 13 years. I was looking to improve sound. RSM800 has cleaner highs, better dispersion and more bass. The porting helps with punchier bass at lower volumes. They are larger than AW650 but the sound is bigger.
Bryan from Clarendon Hills, IL
