Definitive Technology DC-80 PRO In-ceiling speaker

Name: Definitive Technology DC-80 PRO
Brand: Definitive Technology
SKU: 735DC80PRO
Price: 379.0 USD
Availability: InStock

Item # 735DC80PRO

The DC-80 PRO's 8-inch woofer produces more life-sized sound than you'll hear from most in-ceiling models.

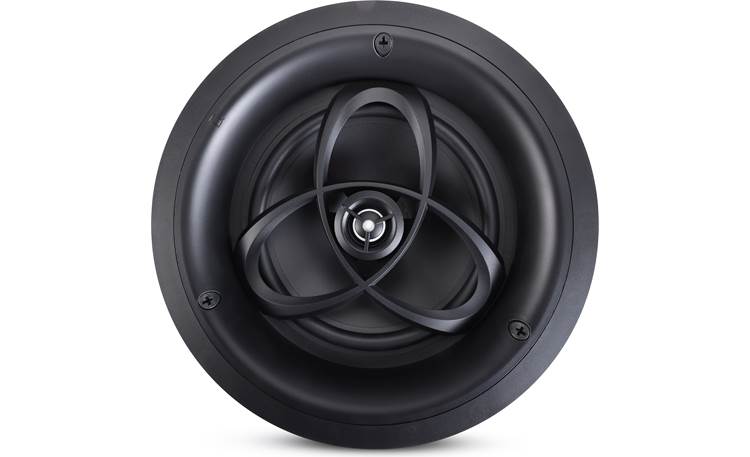

Front

1/9

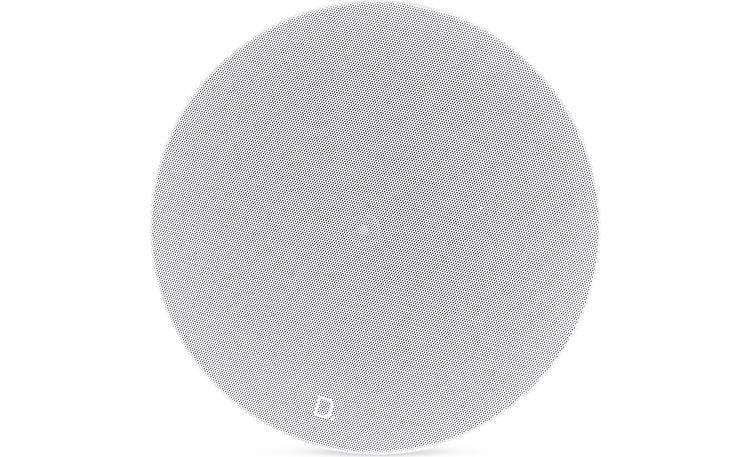

Shown with magnetic grille

2/9

Only at Crutchfield

3/9

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

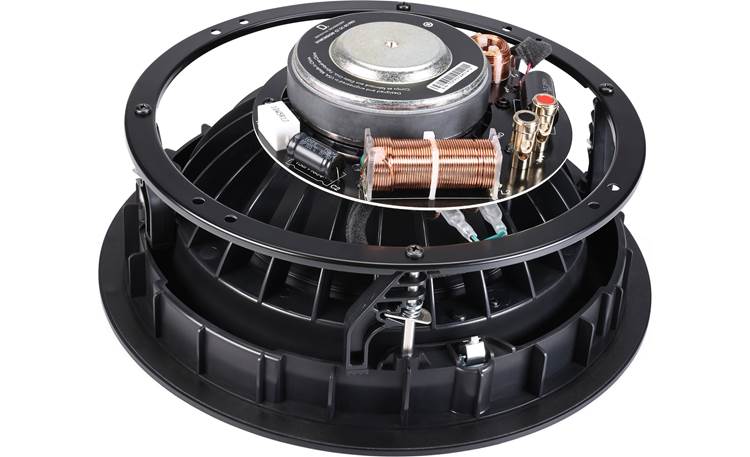

Back

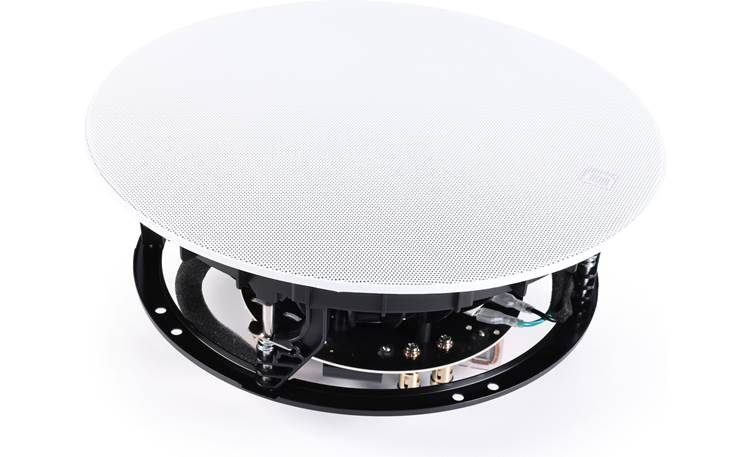

Paintable magnetic grille

Low-profile, paintable grille

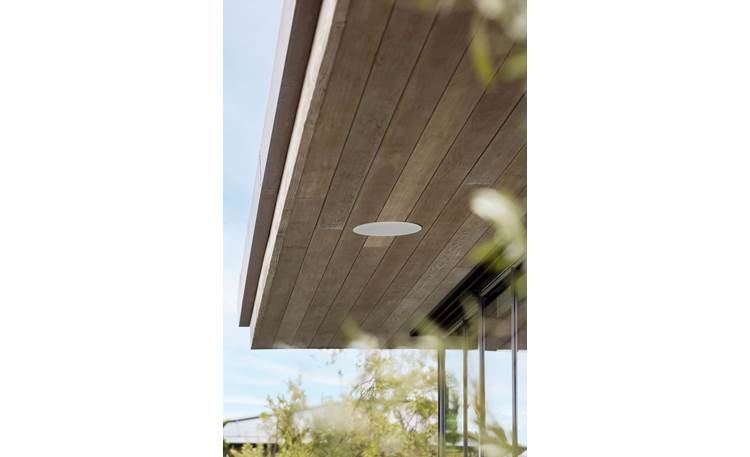

IP55 rating for dust and water exposure

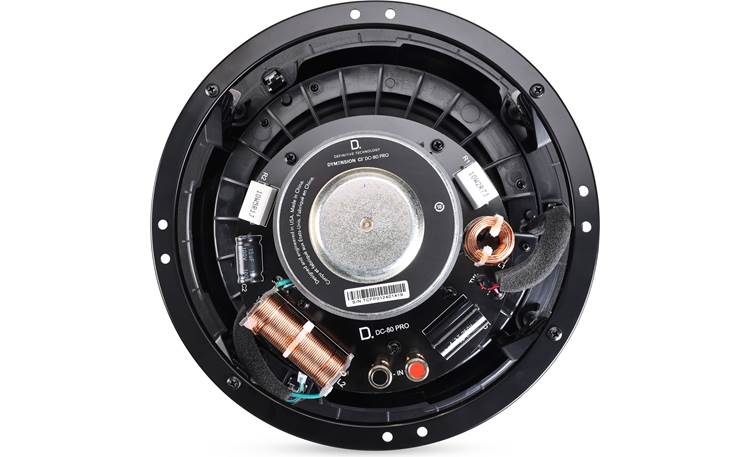

Back

Definitive Technology DC-80 PRO Shown with magnetic grille

Definitive Technology DC-80 PRO Only at Crutchfield

Definitive Technology DC-80 PRO Paintable magnetic grille

Definitive Technology DC-80 PRO IP55 rating for dust and water exposure

The DC-80 PRO's 8-inch woofer produces more life-sized sound than you'll hear from most in-ceiling models.

Item # 735DC80PRO

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$379.00 each

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Steve Kindig

Full-bodied sound from an in-ceiling speaker

The DC-80 PRO is part of Definitive Technology's new Dymension CI series of in-wall and in-ceiling speakers. It pairs a 1" aluminum oxide dome tweeter with an 8" poly mid/woofer for clean highs and full-bodied bass. Its punchy sound can bring music and movies to life, even in larger rooms. The pivoting tweeter lets you aim the sound directly towards your listening area, so you can fine-tune your system's sound.

Tool-free mounting for easier installation

Def Tech designed a simple two-piece mounting system with pivoting "dog" arms that installs effortlessly — no tools, no hassles. With its paintable, low-profile grille and hidden flange, the DC-80 PRO is practically invisible. And its IP55 rating means it's not afraid of a little dust or water.

Building a system

You can use the DC-80 PRO as part of a multi-room music system, or in a home theater system. It's voice-matched with Def Tech's Mythos and Dymension speakers.

Product highlights:

1" pivoting aluminum oxide dome tweeter
8" mineral-filled poly woofer
frequency response 42-25,000 Hz (−3dB)
handles up to 120 watts
sensitivity 88 dB
impedance: 6 ohms
discreet design includes paintable low-profile magnetic grille
IP55-rated protection against dust and low-pressure water streams
cutout diameter: 10-5/8"
mounting depth: 5"
overall dimensions: 11-13/16" diameter x 5-1/4" depth
warranty: 5 years
MFR # 300819-01-00-005
Item # 735DC80PRO

Separate amplifier required.

What's in the box:

Definitive Technology DC-80 PRO owner's manual

In-ceiling speaker
Grille
Installation Instructions
Important Product Information
Cutout Template

Researched by Crutchfield's Stacey B.

Features & specs

Features
Quantity in Package	---
Tweeter	Hard-Dome
Aimable Tweeter	Yes
Woofer Composition	Mineral-filled polypropylene
Woofer Surround	Rubber
Connector Type	Spring post
Bi-Amp Inputs	No
Built-in Back-box	No
Moisture Resistance
Indoor (Moisture-resistant)	Yes
Outdoor (Partial Exposure)	Yes
Outdoor (Full Exposure)	No
Specs
Tweeter Size	1
Midrange Size	N/A
Speaker Shape	Round
Woofer Size	8
Cutout Width	10.625
Cutout Height	10.625
Mounting Depth	5
Power Range (Watts)	20-120
Sensitivity	88 dB
Impedance (Ohms)	6
Frequency Response	42-25kHz
Parts Warranty	5 Years
Labor Warranty	5 Years

Product Research

Features

2-Way Driver Design: Definitive Technology Dymension CI Series DC-80 PRO employs a 2-way driver design featuring a 1" pivoting aluminum oxide dome tweeter and 8.0" mineral-filled polypropylene cone woofer for clear, consistent sound in both home and commercial audio systems.

1" Pivoting Aluminum Oxide Dome Tweeter: The pivoting aluminum oxide 1" dome tweeter delivers lifelike high frequencies. Its pivoting design allows you to aim the high frequency sound for crisp, clear sound where you need it most in the room.
8.0" Mineral-Filled Polypropylene Woofer: The light, rigid, mineral-filled polypropylene 8.0" woofer reproduces smooth bass and natural midrange frequencies for clear music and movie soundtracks..

Sophisticated Crossover: The DC-80 PRO utilizes a sophisticated crossover network for optimal driver performance with a seamless transition between high and low frequencies.

IP55-Rated: With IP55-rated protection against dust and low-pressure water streams, trust that you can bring premium sound to any space, including high-humidity environments and outdoor areas.

Spring-Post Terminals: The Dymension CI Series DC-80 PRO is outfitted with a set of spring-post terminals that accept bare wire (up to 12AWG), pin-connectors, and banana plugs (single or dual).

Micro-Perforated Magnetic Grille: A micro-perforated magnetic grille is included. The grille features a white finish, but can also be painted to match the color of your ceiling.

Two-Piece Mounting System: A simple, two-piece system with frame and pivoting "dog-leg" clamps installs Dymension CI Series DC-800 PRO effortlessly in the ceiling. The DC-80 PRO requires a circular cutout that measures 10.625" (diameter) x 5.0" (depth) in the ceiling. There needs to be at least 0.75" of clearance around the inside of the cutout to accommodate the "dog-leg" clamps. The "dog-leg" clamps support a 0.25" to 1.0" thick ceiling.

Note: Make sure to select a mounting location for the speaker that has sufficient clearance above the ceiling to avoid any interference with electrical wiring, plumbing or other fixtures.

Timbre-Matching: Combine Definitive Technology's timbre-matched Dymension, Dymension CI, and Mythos speakers and Descend Series subwoofers to design a high-performance home theater, stereo music, or distributed audio system.
