About the Bowers & Wilkins ISW3
Product highlights:
- ideal for a discreet home theater or stereo music system
- dual 6-1/2" hybrid paper/aramid fiber woofers
- frequency response: 27-120 Hz (±3 dB)
- impedance: 8 ohms
- recommended amplification: up to 250 watts
- non-resonant, bass-reflex enclosure with front-firing port
- designed to install between two 16" on-center wall studs or ceiling joists
- includes paintable grille to match your décor
- includes mounting bracket and hardware
- overall dimensions: 13-5/8"W x 19-1/2"H x 9-3/8"D
- weight: 27.6 lbs.
- warranty: 5 years
- MFR # FP31127
- Item # 749ISW3
What's in the box:
Bowers & Wilkins ISW3 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- In-wall/In-ceiling passive subwoofer
- Louvre fascia
- Louvre
- Cowl extension
- Support bar
- 4 Angle support brackets
- Eight #8x12mm screws
- Two M3x35mm screws
- Three #4x10mm screws
- Ten #6x25mm screws
- 2 Gasket strips
- Cutout template
- Custom Installation booklet
More details on the Bowers & Wilkins ISW3
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Single | |
| Tweeter | --- | |
| Aimable Tweeter | No | |
| Woofer Composition | Paper/Aramid fiber | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | Yes | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | No | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | N/A | |
| Midrange Size | N/A | |
| Woofer Size | 6.5 | |
| Speaker Shape | Rectangle | |
| Cutout Width | 13.1875 | |
| Cutout Height | 3.125 | |
| Mounting Depth | 10 | |
| Power Range (Watts) | up to 250 | |
| Sensitivity | 0 dB | |
| Impedance (Ohms) | 8 | |
| Frequency Response | 27-120Hz | |
| Parts Warranty | 5 Years | |
| Labor Warranty | 5 Years | |
Product Research
Features

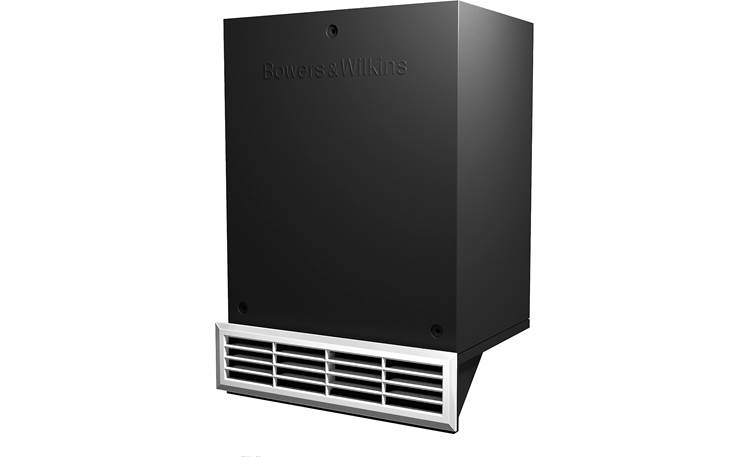

Custom Install Passive Subwoofer: The Bowers & Wilkins ISW-3 is an incredibly versatile and compact passive subwoofer, capable of providing high-quality bass output in spaces that may have not been possible before. It can be placed in a variety of locations without causing vibrations. The ISW-3 houses two 6.5" paper/aramid fiber cone woofers with rubber surrounds and requires an external subwoofer power amplifier (sold separately).
Installation Options: The Bowers & Wilkins ISW-3 passive subwoofer offers four possible installation applications - In-Ceiling, In-Wall, Under-The-Floor, or Kitchen-Cabinet. Four angled "L"-brackets will secure the passive subwoofer enclosure in place.
- In-Ceiling: The passive subwoofer will fit between joists with standard 16" or greater spacing, such that the visible louvre straddles the gap between them. A clearance of 10" or greater behind the underside face of the joists is required.
- In-Wall: The passive subwoofer is too deep to fit into a standard nominal 4" thick wall, but may be fitted into custom furniture or closet that accommodates its depth and that has studs with standard 16" or greater spacing. In most situations, the visible louvre will be required to be low on the wall, just above the skirting board. In that case, the cabinet will be oriented with the cowl at the bottom.
- Under-The-Floor: The speaker will fit between joists with standard 16" or greater spacing, such that the visible louvre straddles the gap between them. A clearance of 10" or greater behind the top of the joists is required. This subwoofer is not recommended if the floor is to be covered by a thick carpet. Very short pile carpet, such as carpet tiles, may be accommodated with care.
- Kitchen-Unit: The subwoofer will rest on the bottom shelf of the kitchen cabinet and vent through the toe-kick panel below the door.
Note: See the "Custom Installation" booklet for further installation instructions and details.
Gold-Plated Spring-Post Terminals: The B&W ISW-3 passive subwoofer is outfitted with gold-plated, spring-post terminals that will accommodate bare speaker wire (up to 12AWG), pin connectors, and banana plugs (single only). The gold-plated terminals provide excellent audio signal transfer and resists corrosion.
