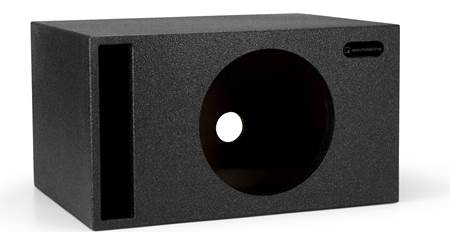

Sound Ordnance™ Bass Bunker Ported single 12" subwoofer enclosure (Model BB12-200V)

Item # 77712200V

The BB12-200V ported enclosure holds one 12" subwoofer and offers an internal volume of 1.83 cubic feet.

The BB12-200V ported enclosure holds one 12" subwoofer and offers an internal volume of 1.83 cubic feet.

Item # 77712200V

Ships free

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
Temporarily out of stock
Ship date unknown
$109.99

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Sound Ordnance™ Bass Bunker

Bob Bihlmayer

Product highlights:

  • ported hatchback style enclosure for one 12" subwoofer
  • 5/8" MDF (medium-density fiberboard) with black carpet covering
  • cutout size: 11-1/8"
  • internal volume: 1.83 cubic feet
  • dimensions: 20-3/8"W x 14-1/2"H x 15-5/8"D1 x 12-5/8"D2
  • warranty: 1 year
  • MFR # BB12-200V
  • Item # 77712200V
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

  • Single hatchback-style enclosure for 12" subwoofer with spring-post terminal

More details on the Sound Ordnance™ Bass Bunker

Pat M.

Product Research

Features

Materials: The Sound Ordnance BB12-200V Bass Bunker is an unloaded, hatchback-style ported enclosure for one 12" subwoofer. It is constructed of 5/8" MDF (medium-density fiberboard), covered in black carpet.

Internal Box Volume: The enclosure has 1.83 cubic feet of airspace.

Port Dimensions:

  • Triangle Sides: 3.8" x 4.1" x 5.6"
  • Length: 12"

Terminals: The BB12-200V is equipped with a pair of spring-post speaker terminals mounted in the rear panel. The spring terminals will accept bare wire up to 10 gauge, pin connectors, and single banana plugs, but are spaced too far apart for dual banana plugs. Inside the enclosure the terminal has an attached 24" length of speaker wire for connecting the subwoofer.

Brackets: Brackets for securing the enclosure to your vehicle are recommended.

The Sound Ordnance™ Bass Bunker replaces these items:


Adding...
Sound Ordnance™ Bass Bunker

Sound Ordnance™ Bass Bunker

Ported single 12" subwoofer enclosure (Model BB12-200V)
  • 5/8" MDF (medium-density fiberboard) with black carpet covering
  • internal volume: 1.83 cubic feet
  • dimensions: 20-3/8"W x 14-1/2"H x 15-5/8"D1 x 12-5/8"D2

Loading accessories...

Customer Q&A

17 questions already asked

Q
What kind of screw do I use? For the box
roberto  Jun 23, 2025
1 answer
A
The Metra HWP-0001 pan head screws in the link below are perfect for use with the Sound Ordnance Bass Bunker subwoofer boxes, Roberto. https://www.crutchfield.com/p_120HWP0001/Metra-HWP-0001.html
bo  Jun 23, 2025 (Staff)
Q
What is the port area?
griffin  Mar 27, 2025
1 answer
A
Each port opening measures 3.8" x 4.1" x 5.6" and is 12" long. It yields a tuning frequency of 34 Hz
jason  Mar 27, 2025 (Staff)
Q
This drawer works on a P2D2 12 ?
emar  Feb 05, 2025
1 answer
A
Greetings Emar. Thank you for checking first. Yes the BB12-200V is a recommended enclosure for the 12 inch Punch P2D2 subwoofer.
thomas  Feb 05, 2025 (Staff)
Q
I'm looking for the most ideal ported enclosure for the Alpine X-W12, Would this be the right fit? Additionally would the Apline X-W12D4 fit the Cutout Diameter? Alpine X-W12D4: 11 1/16" Sound Ordnance Bass Bunker: 11 1/8"
brandon  Dec 10, 2024
1 answer
A
Greetings Brandon. Thank you for your question. The box volume is extremely close, the sub will fit in the box's cutout, there is no depth issue either.
thomas  Dec 11, 2024 (Staff)
Q
Would this work for an Alpine S2? According to the manual for the 12 inch this box is .1 ft³ larger Gross volume than their max recommended size. Thanks.
kevin  Aug 29, 2024
1 answer
A
Hey Kevin, being that the box is just a bit bigger, technically there is a chance the box will now give you as tight due to there being too much space for the air to move around in. If you wanted to optimize the hit just a bit more , I would look at this box from SPL Boxes that we carry and that has 1.5cu.ft. of airpace which puts us more in range for an optimized ported output: https://www.crutchfield.com/I-rET1c402/p_419SB112V/SPL-Boxes-SB112V.html
red  Aug 29, 2024 (Staff)
Q
Will this box fit behind the seat in a 2dr jk?
aaron  May 27, 2024
1 answer
A
This subwoofer box is too deep to fit into the rear cargo area of that Jeep Wrangler. We do have subwoofer boxes that can fit and advisors who can be reached by calling 1-800-324-9695 to give a personal recommendation on a sub box
jason  May 28, 2024 (Staff)
Q
Will this box fit a kicker comp c 12 inch?
noah  Apr 27, 2022
2 answers
A
Yes it will absolutely fit. The speaker box is also made of great quality! I highly recommend
justin  Apr 27, 2022
A
Yup, thats what I run in mine!
richard  Apr 27, 2022
Q
What gauge wire will the terminals take?
andrew  Apr 26, 2022
1 answer
A
4 gauge and smaller 0 gauge just to big
terry  Apr 26, 2022
Q
Will a Pioneer TS-D12D2 12â?? fit the depth and cut out hole for mounting to this box?
george  Jan 22, 2022
2 answers
A
Sure, it will fit. However for the optimum performance out of any subwoofer you would ideally want to find, build or have someone build an enclosure accurate to the speaker manufacturer's recommendations for that specific speaker. Just Google search the speaker and you will find the enclosure requirements. Then, look up the box and see of you have a match. If you just want a little extra bass in your vehicle which, I can tell from the speaker you're asking about that this is the case, it will be fine for your vehicle. You can buy a cheap Amp for about $100 from a pawn shop where the watt output matches your speakers output and have someone install it for you. Good luck!
jesse  Jan 24, 2022
A
Yes it'll fit
kc  Jan 23, 2022
Q
Should this be good for p3d4?
kamuela  Dec 11, 2021
1 answer
A
Find the inner space measurements of the box. Compare with the box requirements of that speaker. My opinion is, it depends on exactly what you're looking for. If you want to be heard down the block, you want the T-series by Rockford Fosgate. They cost $1,000.00+ per speaker. If you just want to add to your factory system, this is a good choice. Hope that helps.
jesse  Dec 16, 2021
Q
Wod this box be a good choice for a skar svr 12? Or would the 150V be better?
2kold  Jul 31, 2021
2 answers
A
Easy answer my friend.. Get the Skar ported 12" box. It's solid as FranK Thomas, the HOF DH /1Bman from the White Sox. IDK how I got to this point in a knuckleballing Tangential review, but his name nickname was " The Big Hurt'. And that fits perfectly to describe the box. Could be Skar's best musical instrument(depends...) but it's <$100, dbl baffled, 40ish+pounds,tuned @32-34ish,it's really well made. & (finally ??) it(SVR) is a perfect match cuz it can even make the SDR sound like caged fury til the fresher SDR decides to fry it's coil on a 75 watt talk show hiccup..True story ??.
micah  Mar 16, 2022
A
We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
thomas  Aug 03, 2021 (Staff)
Q
Will an orion hcca 12 fit in this?
martel  Sep 17, 2020
1 answer
A
We have not received any answers from other customers on your question. I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They should be able to help answer your question.
thomas  Oct 08, 2020 (Staff)
Q
Is 1.83 cu ft. the gross (including the space for the ports) or net (does not include the space for the ports) cubic square feet? Thank you
melvin g  Sep 14, 2020
1 answer
A
That is total box volume or gross volume which does count the air in the port tubes too.
jason  Sep 27, 2020 (Staff)
Q
Overall how does an Alpine R-W12D2 sound in this enclosure? Is it near optimum for it? Any negatives? Thanks alot.
lanny  Aug 03, 2020
1 answer
A
I have this exact setup. I bought this box because it nearly matched the specifications. I think it sounds pretty good. The extremely low frequencies aren't quite there but I believe that is just due to the sub itself and using a LPF. Overall it's a nice box and well built. And it's a good match for the sub.
steven  Aug 03, 2020
Q
How does this box pair up with a JL 12w3v3?
jeff  Jul 06, 2020
1 answer
A
It will pair up nicely and pound with clarity if you use a quality mono amp or 5 channel.
damara  Jul 07, 2020
