About the iDatastart RF2652A

Product highlights:
- RF remote control for iDatastart digital remote start systems
- package includes TR2650 LCD remote/transmitter, TR2410A 2-way remote, and AN2400A antenna
- LoRa technology enables range up to one mile
- notification via LED flashes and audible chirps
- functions include remote start/stop, lock/unlock, arm/disarm, or open trunk or hatch
- warranty: 1 year
- MFR # RF2652A
- Item # 794RF2652A

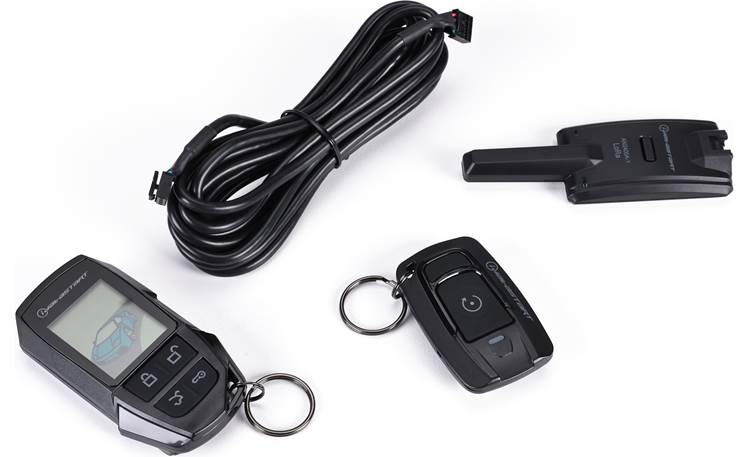

What's in the box:
- One TR2650 5-button transmitter (installed CR2450 battery)
- One TR2410A 1-button remote (installed CR2450 battery)
- AN2400A 3.5" antenna with 3M adhesive backing
- Owner's card (QR code for instructions)
- ID Sticker
More details on the iDatastart RF2652A

Product Research
Features
Overview: The ADS RF2652A kit provides long-range, 2-way communication for activating your iDatastart HCX or VWX remote start module (both sold separately). The system includes a 5-button remote with LCD display, and a 1-button companion remote. The RF2652A system uses long-range FM technology, letting you activate your remote start and lock/unlock your doors from up to 1 mile away.
Functions:

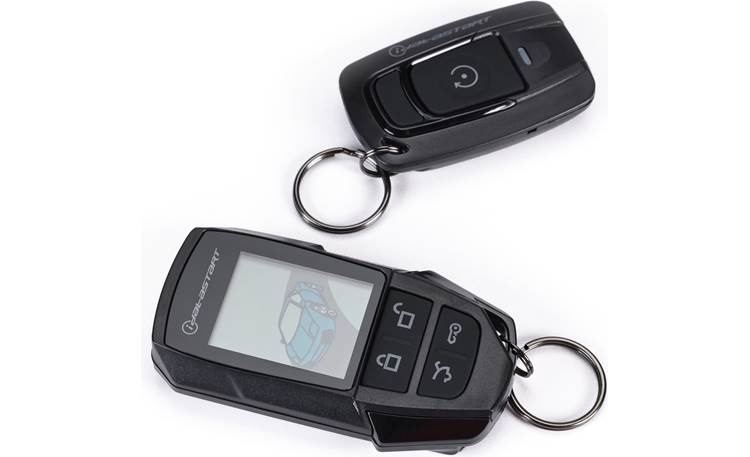

- 5-Button Remote: The RF2652A 5-button/2-way remote features 4 main buttons along the front panel, which are pre-programmed for Lock/Arm, Unlock/Disarm, Trunk/Hatch Release, engine Start/Stop, and a 5th Function button (F) on the side of the remote that's used for multi-button functions. An LCD screen will light when a button is pressed, displaying both a transmission icon and an activation confirmation icon once the command has been performed. Other LCD icons will display the current Lock/Arm status, remote Battery Level, the current Time, and more. The remote can be programmed for up to 30 functions, all accessed using combinations of the 5 buttons. Additional features include; Valet Mode, Panic, Silent Lock/Unlock, Passive Lock&Arm, Ignition Lock, Extended Runtime, Turbo Mode (allows engine to cool down before shutting engine off), and more.
- 1-Button Remote: The RF2652A 1-button/2-way remote features a single button on the front side which is pre-programmed for Lock/Arm, Unlock/Disarm, and Engine Start/Stop. A single LED at the top of the remote will light to confirm when the button is pressed and a command was sent to the remote start module, and will light afterwards to confirm that that command was performed. A single press of the button will Lock/Arm or Unlock/Disarm while pressing and holding the button will activate Engine Start or Engine Stop if the engine is already running.

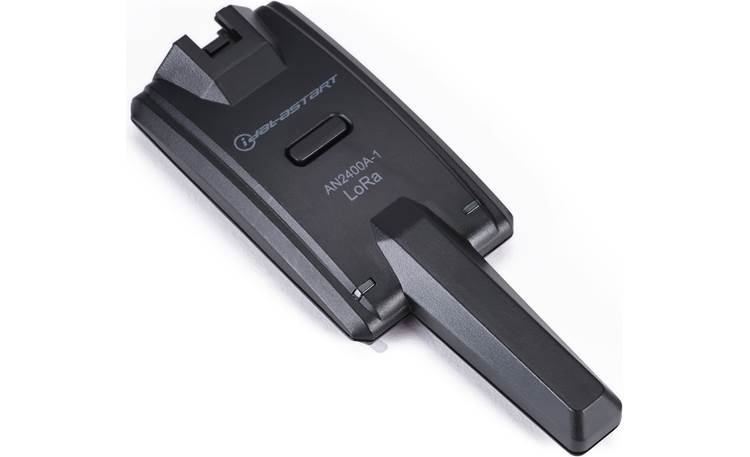

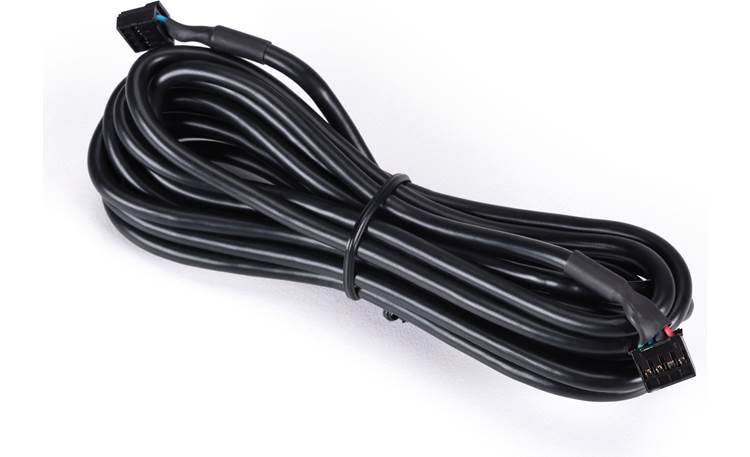

Antenna: Included with the RF2652A remote control kit is a 3-1/2" long-range antenna for achieving a maximum transmit/receive range of up to 6000 feet (approximately 1 mile). The antenna features an adhesive backing, for mounting it high up on a dash or console, and an 8' cord that plugs directly into the iDatastart module. Two LEDs and a small push-button on the antenna are used to program additional or replacement remote controls. Up to 4 remotes can be programmed to the iDatastart module.
Owner's Card: Operating instructions for the RF2652A remotes can be accessed via the included Owner's Card. This features a QR code that can be scanned with a smartphone or tablet and will pull up the online instruction manual.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Works great known good for 7 tenths of a mile and works from my desk at work so no more going out to a cold vehicle
John from Harrah, OK
