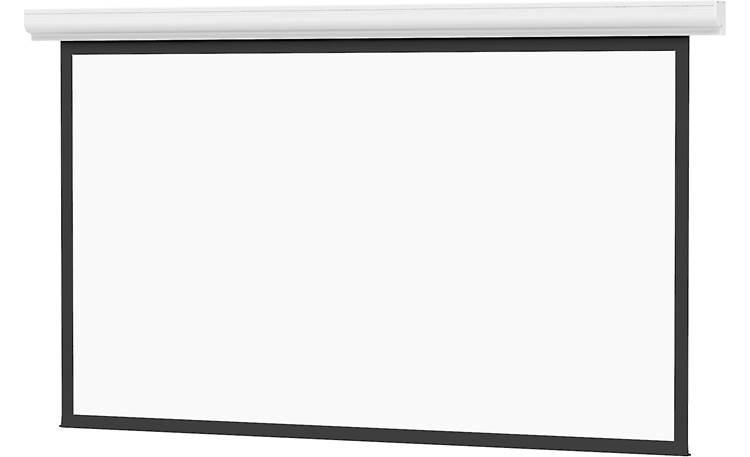

About the Da-Lite Designer Contour Electrol 14427
Show time
Show time
A big screen can give us cinema-like movie nights at home, but that doesn't mean we want a giant white rectangle on display all the time. A motorized retractable screen like the Da-Lite Contour Electrol offers a perfect solution. Most of the time, it's tucked away in its discreet wall-mounted case. When it's show time, just touch a button and the screen quietly lowers into position.
This screen features Da-Lite's Matte White surface, which is a versatile and uniform-looking surface for front projection that works well when you can control your room's ambient light level. Matte White combines wide viewing angles with accurate color reproduction. Black borders around the viewing area make the picture appear brighter and more vibrant.
Product highlights:
- 92" diagonal image size (16:9 aspect ratio)
- viewing area: 80"W x 45"H
- Matte White surface with screen gain of 1.0
- suitable for lamp-based projectors with standard throw lenses
- optimal viewing angle range is 60° half-angle, 120° total
- black border around viewing area enhances perceived picture brightness and contrast
- Agility Battery Motor offers wire-free installation
- battery lasts over 200 cycles on a single charge
- micro USB adapter can stay connected for constant power or be used to recharge as needed
- includes wall-mountable 3-button switch (wall plate sold separately)

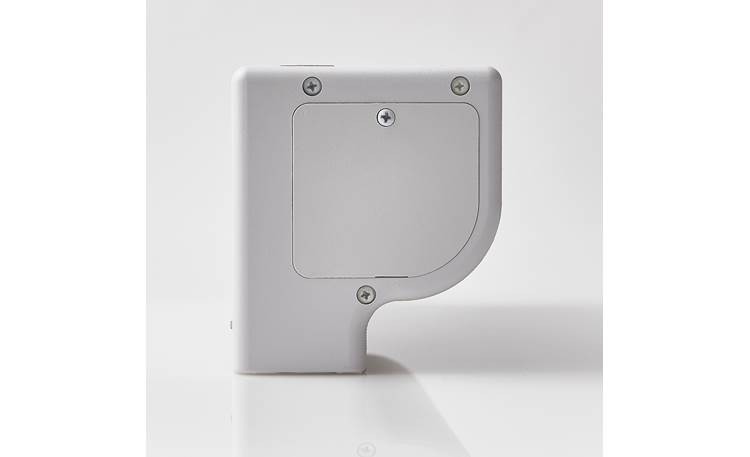

- aluminum case with white powder-coated finish
- case dimensions: 93-1/4"W x 4-5/8"H x 4-1/8"D
- made in USA
- warranty: 5 years
- MFR # 14427
What's in the box:
- Retractable projection screen
- microUSB-to-USB cable
- AC/USB power adapter
- Remote control (CR2450 3V battery)
- Mounting hardware
- Instruction Manual
Reviews (0)
Customer reviews for Da-Lite Designer Contour Electrol 14427
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Da-Lite Designer Contour Electrol 14427
Product Research
Features
Designer Contour Electrol Series: The Designer Contour Electrol Series is a ceiling or wall-mounted electric screen offering simple installation with the benefit of a smaller housing. With all the benefits of an electric screen but the flexibility of wire-free installation, there's now an alternative for challenging wired screen installations. The standard Agility Battery Motor is ideal for no-fuss installations or where flexibility is required to retrofit historic buildings or environments when wiring electricity becomes project prohibitive. This screen features a lithium-ion battery, lasting over 200 cycles on a single charge via microUSB port. It also comes with a wall switch controller.
Note: Screen travel is stopped automatically in the down and up positions by the limit switches that are preset at the factory. If it's necessary to adjust for more or less drop, follow the steps in the Instruction Manual. The case cover must be removed to access the motor limit switches.
Matt White: Matte White is a front projection screen surface designed for standard resolution. Suitable for lamp based projectors with standard throw lenses, its neutral white color provides everyday image quality. This economical surface is ideal for projects with large venue and basic projection needs and is GREENGUARD and GREENGUARD Gold certified to meet and exceed stringent standards for indoor air quality. Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.
- Half Angle: 60 degrees
- Gain: 1.0
Rechargeable Battery: The motor has a 12V built in lithium-ion battery pack with integrated charge management. Max power input for recharging is 5V/2A. Before first use, charge the motor for 6 hours using the included microUSB-to-USB cable and AC/USB power adapter. With a full charge the screen can operate for approximately 200 up/down cycles.
Remote Control: The included RF remote control provides wireless operation of the projection screen. It has a wireless range of up to 60'. Because the remote is RF (Radio Frequency) and not IR (Infrared), it does not have to be pointed directly at the projector screen. Control functions include Up, Down, and Stop.
