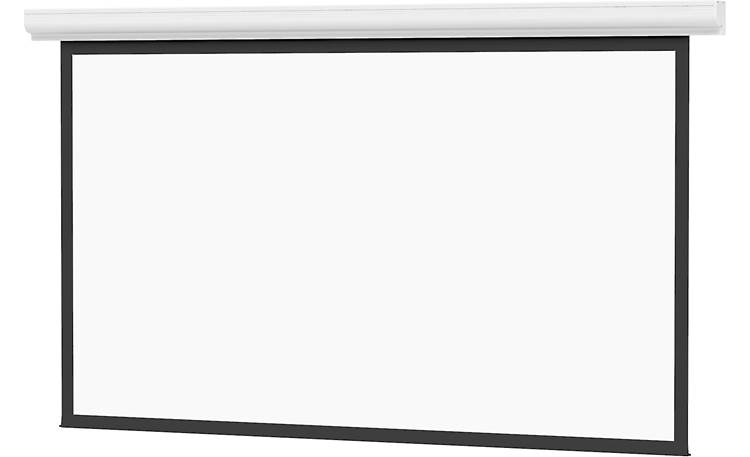

Da-Lite Designer Contour Electrol 14429 Motorized projector screen with Matte White fabric (110")

Item # 80914429

Extend your screen when you need it, and hide it away when you don't — at the push of a button.

Extend your screen when you need it, and hide it away when you don't — at the push of a button.

Item # 80914429

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
$1,416.80

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Da-Lite Designer Contour Electrol 14429

Emily S.

Product highlights:

  • 110" diagonal image size (16:9 aspect ratio)
  • viewing area: 96"W x 54"H
  • Matte White surface with screen gain of 1.0
    • suitable for lamp-based projectors with standard throw lenses
    • optimal viewing angle range is 60° half-angle, 120° total
  • black border around viewing area enhances perceived picture brightness and contrast
  • Agility Battery Motor offers wire-free installation
    • battery lasts over 200 cycles on a single charge
    • micro USB adapter can stay connected for constant power or be used to recharge as needed
  • includes wall-mountable 3-button switch (wall plate sold separately)
  • aluminum case with white powder-coated finish
  • case dimensions: 109-1/4"W x 4-5/8"H x 4-1/8"D
  • made in USA
  • warranty: 5 years
  • MFR # 14429
  • Item # 80914429

What's in the box:

  • Retractable projection screen
  • microUSB-to-USB cable
  • AC/USB power adapter
  • Remote control (CR2450 3V battery)
  • Mounting hardware
  • Instruction Manual

More details on the Da-Lite Designer Contour Electrol 14429

Stacey B.

Product Research

Features

Designer Contour Electrol Series: The Designer Contour Electrol Series is a ceiling or wall-mounted electric screen offering simple installation with the benefit of a smaller housing. With all the benefits of an electric screen but the flexibility of wire-free installation, there's now an alternative for challenging wired screen installations. The standard Agility Battery Motor is ideal for no-fuss installations or where flexibility is required to retrofit historic buildings or environments when wiring electricity becomes project prohibitive. This screen features a lithium-ion battery, lasting over 200 cycles on a single charge via microUSB port. It also comes with a wall switch controller.

Note: Screen travel is stopped automatically in the down and up positions by the limit switches that are preset at the factory. If it's necessary to adjust for more or less drop, follow the steps in the Instruction Manual. The case cover must be removed to access the motor limit switches.

Matt White: Matte White is a front projection screen surface designed for standard resolution. Suitable for lamp based projectors with standard throw lenses, its neutral white color provides everyday image quality. This economical surface is ideal for projects with large venue and basic projection needs and is GREENGUARD and GREENGUARD Gold certified to meet and exceed stringent standards for indoor air quality. Matte White can be cleaned with mild soap and water, is flame retardant and mildew resistant.

  • Half Angle: 60 degrees
  • Gain: 1.0

Rechargeable Battery: The motor has a 12V built in lithium-ion battery pack with integrated charge management. Max power input for recharging is 5V/2A. Before first use, charge the motor for 6 hours using the included microUSB-to-USB cable and AC/USB power adapter. With a full charge the screen can operate for approximately 200 up/down cycles.

Remote Control: The included RF remote control provides wireless operation of the projection screen. It has a wireless range of up to 60'. Because the remote is RF (Radio Frequency) and not IR (Infrared), it does not have to be pointed directly at the projector screen. Control functions include Up, Down, and Stop.

Loading accessories...

Customer Q&A

3 questions already asked

Q
Can I get a typical wiring diagram for an older screen that is motorized, up, down and stop? No remote. It will not go down and trying to figure out your circuit to correct the problem. Do not want to go 14' in the air to figure it out.
jack  Nov 08, 2024
1 answer
A
We do not research this enough to know if one wiring scheme was used for all screens but we do now that often that information is found in the owner's manual for the screen. We often have PDF copies of the manuals for the projector screens we offer. I recommend contacting us by calling 1-800-324-9695 to check if we have a manual for your motorized projector screen
jason  Nov 08, 2024 (Staff)
Q
is this screen HD rated?
paul s  Dec 17, 2022
1 answer
A
This Designer Contour Electrol 14420 110" is not 4K rated, Paul. Sticking with Da-lite, you would want to use the 29671LS in the link below for a full 4K rated screen. https://www.crutchfield.com/p_80929671LS/Da-Lite-Tensioned-Contour-Electrol-29671LS-110.html
bo  Dec 17, 2022 (Staff)
Q
can this be ceiling mounted?
scott  Dec 07, 2021
1 answer
A
We confirmed with Da-Lite that this screen can be ceiling mounted.
jeff  Mar 29, 2022 (Staff)
