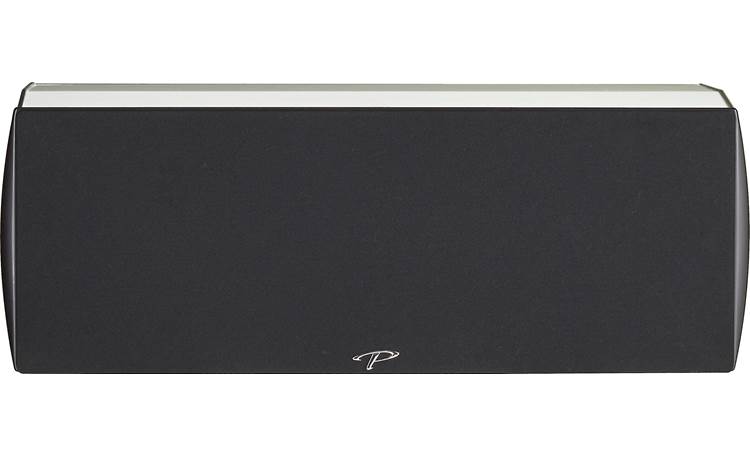

About the Paradigm Premier 500C

Product highlights:
- 1" X-PAL pure aluminum dome tweeter with PPA (Perforated Phase-Aligning) lens
- 4" black anodized X-PAL midrange driver with PPA lens
- two 5-1/2" carbon-infused polypropylene bass drivers
- frequency response: 73-25,000 Hz (±3dB)
- power handling: up to 120 watts RMS
- sensitivity: 92 dB
- impedance: 8 ohms
- acoustic suspension (sealed) speaker enclosure
- made in Paradigm's state-of-the-art Canadian facility
- magnetic grille included
- dual 5-way binding posts allow bi-amping or bi-wiring
- furniture-grade gloss white finish
- dimensions (measured by Crutchfield): 20-1/16"W x 7-1/2"H x 12-11/16"D
- weight: 26 lbs.
- warranty: 5 years
- MFR # 1230000051
- Item # 819P500CGW
What's in the box:
Paradigm Premier 500C owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Center-channel loudspeaker
- Grille
- 2 Binding-post jumpers (pre-installed)
- 4 Rubber feet
- Owner's Manual
- Online Registration Card
More details on the Paradigm Premier 500C

Features & specs
Cabinet & design | ||
---|---|---|
Enclosure | Sealed | |
Color | Gloss White | |
Wall-mountable | No | |
Bracket included | No | |
Connector Type | Binding post | |
Driver details | ||
Tweeter type | Hard-Dome | |
Tweeter size (inches) | 1 | |
Midrange size (inches) | 4 | |
Number of woofers | 2 | |
Woofer size (inches) | 5-1/2 | |
Audio specs | ||
Power range | 15-120 | |
Sensitivity | 92 dB | |
Impedance (ohms) | 8 | |
Frequency response | 73-25k Hz | |
Dimensions & other info | ||
Height (inches) | 7-7/16 | |
Width (inches) | 20-1/16 | |
Depth (inches) | 12-11/16 | |
Weight | 26 lbs | |
Parts warranty | 5 Years | |
Labor warranty | 5 Years |
Product Research
Features
3-Way Center-Channel Loudspeaker: The Paradigm Premier 500C center-channel loudspeaker incorporates a 3-way driver design with a 1" X-PAL dome tweeter, 4" X-PAL cone midrange driver, and two 5.5" carbon-infused polypropylene cone woofers for full-range sound. A distinctive perforated lens in front of the tweeter and midrange driver increases and smooths output without coloring the sound, while also protecting the drivers from getting damaged.
- X-PAL Dome Tweeter & Midrange Driver: The 1" X-PAL dome tweeter and 4" X-PAL cone midrange driver each feature Paradigm's exclusive Perforated Phase-Aligning (PPA) Lens that protects the delicate pure-aluminum tweeter dome and midrange cone, plus acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high and midrange frequencies with incredible detail and higher output.
- Dual Carbon-Infused Polypropylene Woofers: The two 5.5" carbon-infused polypropylene woofers feature a lightweight, and extremely durable high-excursion Nomex spider design that delivers a longer life of flexibility and performance. Nomex is 10xstronger than industry-standard cotton-based spider material. A super-strong die-cast basket features integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.
Active Ridge Technology (ART) Surrounds: The bass drivers feature Paradigm's patented Active Ridge Technology (ART) surrounds, made in-house and overmolded directly onto each woofer cone. This design achieves greater excursion, for a 3dB gain in output and 50% reduction in distortion. Crafted from injection-molded thermoplastic elastomer, ART surrounds are more durable and more reliable, ensuring a lifetime of superior sound.
Acoustic Suspension MDF Enclosure: The Premier 500C utilizes an acoustic suspension (sealed) enclosure for tight, accurate bass response. The enclosure features heavy duty, non-resonant 3/4" MDF construction , with optimally placed interior bracing, and reinforced front baffles to ensure high-quality audio performance. The smooth front baffle enhanced with 1" MDF reduces diffraction and improves sound radiation characteristics. In addition, the tapered design of the speaker cabinet eliminates internal resonances, improves bass intensity, and adds to the elegance of the enclosure profile. The included cloth grille magntically attaches to the enclosure's front baffle.
Dual Binding Posts: The Premier 500C is outfitted with two sets of sturdy binding posts allowing to bi-amp or bi-wire the bookshelf loudspeaker. These binding posts ensure a secure connection to many types of cable and connectors. The binding post terminals will accept banana plugs (single only), pin-connectors, spade-lugs and bare wire (up to 10AWG). Two plastic caps will need to be removed to use banana plugs.
- Bi-Wiring: Bi-wiring can provide noticeable improvements in the overall transparency of your loudspeakers. Run separate speaker wires to the low & high frequency drivers from a single amplifier (the upper set of binding posts are for the high frequency drivers; the lower set of binding posts are for the low frequency drivers).
- Bi-Amping: Bi-amping allows you to use separate amplifiers for the high & low frequency sections of your loudspeaker for greater dynamic range & lower distortion. We recommend that your separate amplifiers have identical gain to preserve the speaker's voicing balance.
Mounting & Placement Options: The Premier 500C center-channel speaker can be mounted on stand (sold separately - see Accessories Tab), shelf, table, or other piece of furniture with a flat tabletop surface. Self-adhesive rubber feet are included to isolate the speaker from the mounting surface. The self-adhesive rubber feet add approximately 0.3125" to the overall height of the speaker.
- The Paradigm Premier Series center speaker is designed to cover a large, wide listening area, allowing listeners throughout the room to hear center-channel information with unprecedented clarity and intelligibility. Placing the center-channel speaker below the TV will ensure the best possible clarity and intelligibility. Position the speaker flush with the front of the TV or speaker shelf to minimize unwanted sound reflections. Make sure the center-channel speaker is approximately the same distance away from the primary listening position as your front speakers.
- Paradigm Premier Series speakers are designed to provide exceptional sound in a wide variety of applications and domestic settings. However, it is important to note that listening room construction, dimensions and furnishings all play a part in the quality of sound you will ultimately achieve. Your listening room will impose its own character on the performance capabilities of any speaker system. The extra care you take in correctly positioning the speakers will result in greater listening enjoyment.
Note: The Premier 500C does not included any brackets, keyhole slots, or threaded inserts to wall-mount the speaker.
Crafted In Canada: The Premier Series loudspeakers are designed, engineered and manufactured in Paradigm's state-of-the-art Canadian facility. Paradigm is partnered with Canada's world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
Premier Series: Paradigm's Premier Series is a line-up of affordable high-performance loudspeakers consisting of two floorstanding models (800F / 700F), two bookshelf models (200B / 100B), and two center-channel models (600C / 500C). The Premier Series from Paradigm features exclusive audio technologies back by fundamental industry-leading audio research for a high-quality audio performance.
Optional Powered Subwoofer: Add a Paradigm Defiance Series powered subwoofer (sold separately) to the Premier Series loudspeaker for even more dynamic, bigger, and deeper bass response.
