Yamaha VS6 6-1/2" commercial weather-resistant surface mount speakers (Black)

Item # 845VS6

Ships free today

In stock
$314.98 pair

Other options

About the Yamaha VS6

Eric A.

Get started with
a free system design

After we gather your information, we'll send you a detailed system plan. It will include a link to a pre-filled shopping cart. Ordering is easy, and delivery is fast.

Give us a call
1-800-315-2758
Submit a design request
Tell us about your space

Yamaha Commercial Audio logo

Tough indoor/outdoor speakers

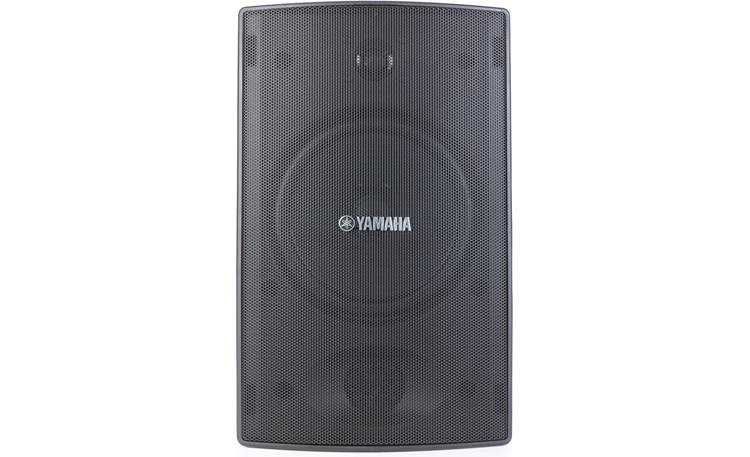

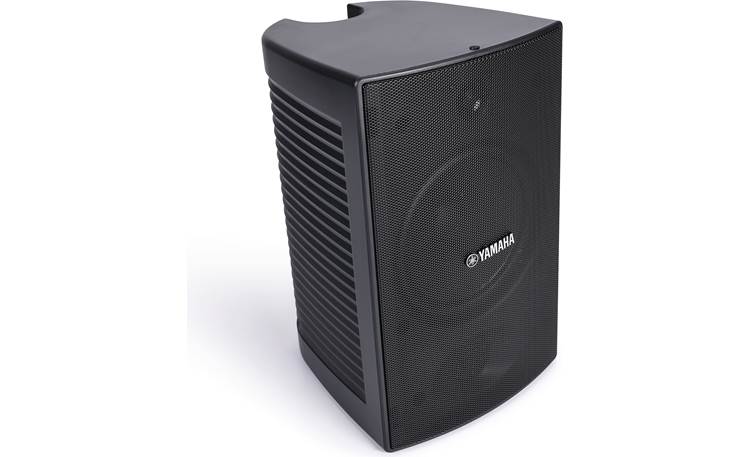

This Yamaha VS6 speaker provides background music and live paging for small businesses, and it's tough enough to be mounted outdoors. It has a 6-1/2" woofer and 1" dome tweeter for wide coverage and exceptional voice clarity. It features a multi-tap transformer for 70-volt or 100-volt audio systems, and an 8-ohm bypass setting that lets it work with standard home audio receivers and amps.

Product highlights:

  • surface-mount speaker with 6-1/2" woofer and 1" dome tweeter
  • coverage: 90° x 90°
  • frequency response: 80-20,000 Hz
  • 50 watts program power
  • maximum SPL: 110 dB
  • sensitivity: 90 dB
  • multi-tap transformer for 70V or 100V systems
    • 3.1, 6.3, 12.5, and 25-watt taps
    • 8-ohm bypass setting for use with regular home audio receivers and amps
  • wall-mount hardware included
  • paintable grilles
  • 7-1/2"W x 12-1/8"H x 8-5/8"D
  • weight: 6.2 lbs.
  • warranty: 1 year
  • MFR # VS6

What's in the box:

  • Two 70/100V speakers

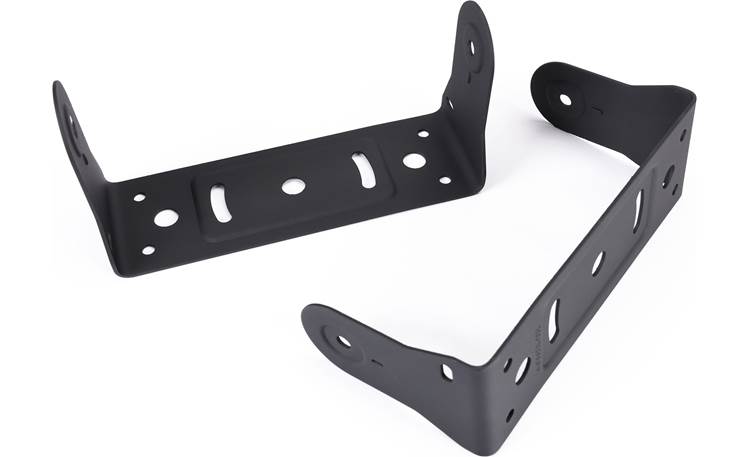

  • 2 Wall-brackets

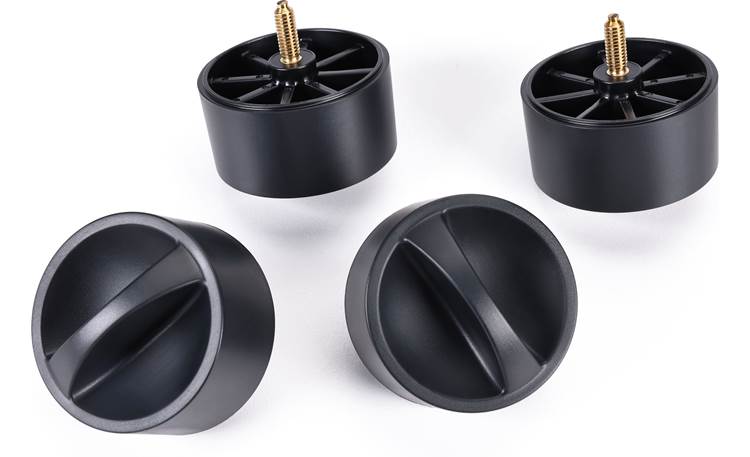

  • 4 Retaining knobs

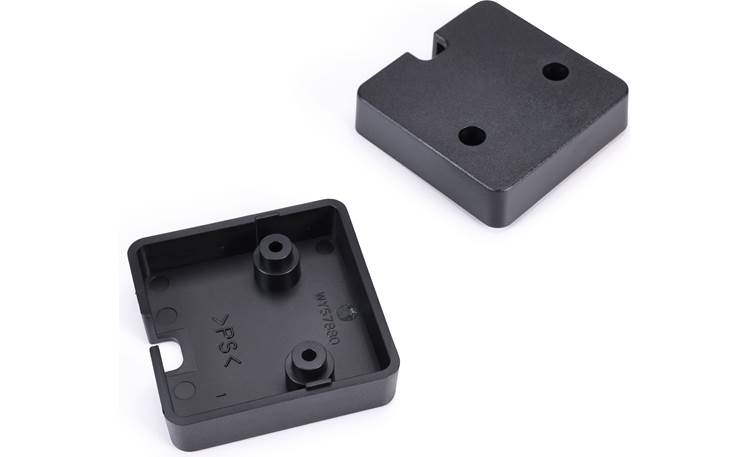

  • 2 Terminal covers
  • Four 15 mm Phillips-head screws
  • Installation guide (Eng / Fren / Span / Others)
  • Specification chart (English)

Customer reviews for Yamaha VS6

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Yamaha VS6

Russ B.

Features & specs

General
Drivers per speaker 2
Woofer Size (inches) 6.5
Tweeter Size (inches) 1
System Frequency response 80-20,000
Maximum SPL 110 dB
Power Handling
Power rating 50
Peak Power rating ---
Specs
Width (inches) 7-1/2
Height (inches) 12-1/8
Depth (inches) 8-3/4
Weight 6.2 lbs

Product Research

Features

Overview: The Yamaha VS6's are 70/100 V speakers designed for high-quality sound in a compact and aesthetically functional format that can be used in a variety of indoor and outdoor applications. They feature a 6.5" woofer and a 1" balanced dome tweeter mounted in a weather-proof enclosure that has a built-in transformer for 70 or 100 volt operation. The speakers can be surface mounted either vertically or horizontally and have a nominal coverage area of 110˚ in both orientations.

Enclosure and Mounting: The VS6 speaker enclosures are made of High Impact Polystyrene with a perforated metal grill, both of which can be painted to match the surroundings. Their waterproof construction meets the IEC60529 IPX3 weatherproof rating requirements for outdoor use under cover. The included mounting brackets allow the speakers to be surface-mounted, either vertically or horizontally, and hold the speakers in place with hand-tightened retaining knobs allowing the speakers to quickly and easily be re-oriented. The mounting brackets allow for 81˚ of swivel or tilt in either direction for a total of 162˚ of travel. The Yamaha logo can be rotated to match the speaker's orientation.

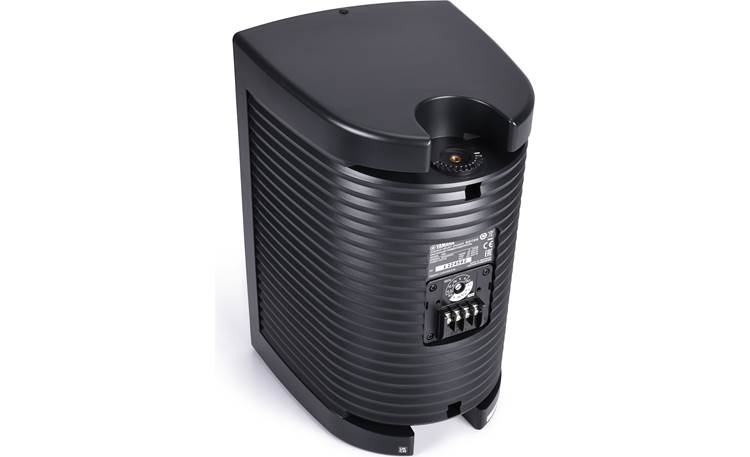

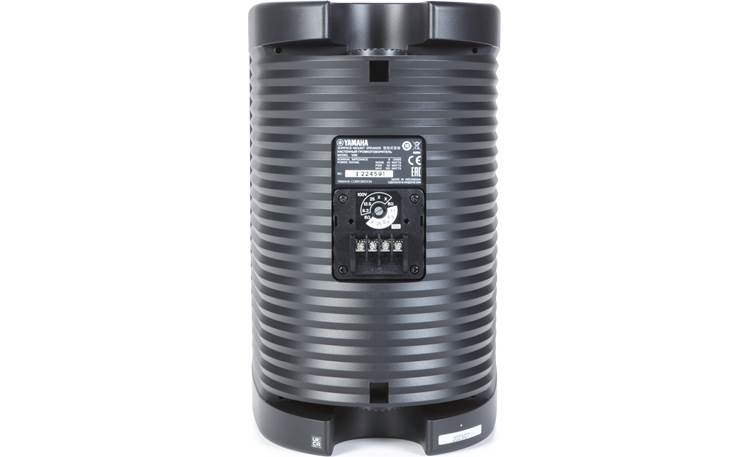

70/100V: The VS6's built-in transformer is compatible with both 70 and 100 volt systems. A rear-panel tap setting allows different wattages to be selected for either 70 or 100 volt and  includes an 8Ω bypass setting. The speakers can handle 50 watts of program power and 100 watts peak power. Two sets of set-screw terminals are provided, both wired in parallel, allowing one set for the input and the other to daisy-chain the signal to other speakers. Terminal covers are provided, that attached with the provided Phillips-head screws, to help protect the terminals from weather and provide a clean look. The following tap settings are available:

  • 70 V: 3.1 W, 6.3 W, 12.5 W, and 25 W
  • 100V: 6.3 W, 12.5 W, and 25 W

Specifications:

  • Frequency Range (-10 dB): 80 Hz - 20 kHz
  • Nominal Coverage:
    • Horizontal: 90˚
    • Vertical: 90˚
  • Drivers:
    • LF: 6.5" cone woofer
    • HF: 1" balanced dome tweeter
  • Crossover: 15 kHz
  • Power Rating:
    • Program: 50 W
    • Peak: 100 W
  • Nominal Impedance: 8Ω
  • Sensitivity: 90 dB SPL / 110 dB SPL (Peak)
  • Transformer Taps:
    • 70 V: 3.1 W, 6.3 W, 12.5 W, 25 W
    • 100 V: 6.3 W, 12.5 W, 25 W
  • I/O Connectors: 2 pairs of set-screw terminals (parallel-wired, screw size: M3, terminal space: 6 mm)
  • Enclosure: High Impact Polystyrene, 94-HB
  • Outdoor Use: IEC60529 IPX3 splash proof rating
  • Mounting Hardware: U-bracket for surface mounting (included)
  • Dimensions: Width - 7.50", Height - 12.125", Depth - 8.750"
  • Weight: 6.2 lbs.

Loading accessories...

Customer Q&A

1 question already asked

Q
Why there are 4 connections point at the back?
jawad ahmed  Dec 17, 2021
2 answers
A
Simple answer is one pair receives the signal and the next pair sends it on to the next speaker. Crutchfield techs can go in depth on the why, they are easy and great to work with.
barry  Dec 17, 2021
A
If you were using them in the 70/100v configuration and that type of amp then you could use the 2nd set to parallel another speaker then from that one to another and so on to create a circuit of speakers in a daisy-chain fashion. This is typical of a paging or building background music system.
mathew  Dec 17, 2021
