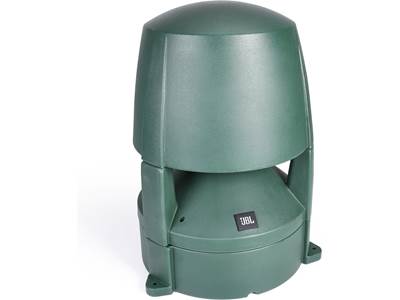

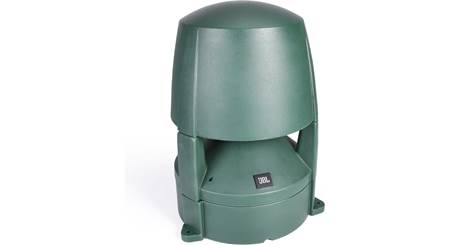

About the JBL Control 85M
Product highlights:
- in-ground weatherproof outdoor speaker designed to blend into landscaped areas
- handles 160 watts program power
- frequency response: 65-16,000 Hz
- 2-way speaker with 5-1/4" polypropylene woofer and 3/4" PEI soft dome tweeter
- 360° horizontal coverage angle
- multi-tap transformer for 70V systems
- 3.8, 7.5, 15 and 30 watt taps
- sensitivity: 86 dB
Dimensions and warranty:
- 11-1/2" diameter x 17" high
- weight: 12 lbs.
- warranty: 5 years speakers, 2 years enclosure
- MFR # CONTROL 85M
- Item # 855CTL85M
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JBL Control 85M owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Landscape speaker (top and bottom halves pre-mounted) w/ 43" attached bare-ended speaker wire
- 2 Gland nuts
- Cover plate
- 3/4" Security screw
- Screw cap
- Four 1/2" counter-sunk screws
- 2 Wire nuts
- Phillip-head screwdriver
- Installation instructions
More details on the JBL Control 85M
Features & specs
| General | ||
|---|---|---|
| Drivers Per Speaker | 2 | |
| Woofer Size (inches) | 5.25 | |
| Tweeter Size (inches) | 0.75 | |
| System Frequency Response | 65Hz-16kHz | |
| Maximum SPL | 105 | |
| Number of Speakers Included | 1 | |
| Power Handling | ||
| Power Rating | 160 | |
| Peak Power Rating | --- | |
| 70V Transformer Taps (watts) | 30W, 15W, 7.5W, 3.8W | |
| 100V Transformer Taps (watts) | 30W, 15W, 7.5W | |
| 8-ohm Bypass | Yes | |
| Specs | ||
| Width (inches) | 13 | |
| Height (inches) | 16-3/4 | |
| Depth (inches) | --- | |
| Weight | 12 lbs | |
Product Research
Features
Overview: The JBL Control 85M Mushroom Landscape speaker is a highly weather-resistant landscape speaker that can be mounted on-ground or partially in-ground and provide high quality sound with 360˚ of horizontal coverage. The Control 85M features a compact design that's unobtrusive and easily blends in with its surroundings, making it ideal for a variety of applications such as shopping malls, theme parks, sports venues, casinos, resorts, restaurants, entrance ways, hospitality venues, and more.
Drivers: The Control 85M includes an 5.25" woofer driver made with a polypropylene cone, polyurethane surround, a Kapton former, and a 1.4" voice-coil. The Control 88M also features a 0.75" Polyetherimide (PEI) dome tweeter. Both drivers are mounted in the top section of the enclosure in a down-firing orientation. Both drivers are highly weather-resistant for year-round outdoor use.
Enclosure: The JBL outdoor speaker features a tough polyethylene enclosure, with a powder coated stainless steel grille, that's resistant to both weather and abuse from lawn care equipment. The top section of the enclosure, that contains the drivers, uses a twist-lock method of attaching to the bottom section, making installation and removal easy. A security screw with hole-plug are provided for keeping the enclosure secure. The bottom section can be mounted on-ground or in-ground and includes mounting holes for security anchors (not included). The enclosure's color extends throughout the material so the speaker will maintain its color even when scraped or scratched.
70/100V/8Ω: The Control 85M includes a built-in transformer and can be wired for either 70V, 100V, or 8Ω operation. The outdoor speaker can handle up to 160W continuous program power (320W peak power). A 43" section of pre-attached wire is included along with 2 gland nuts and 2 gel-filled wire nuts for water-tight wiring. A tap dial on the upper section allows easy selection of the power setting with the following selections available:
- 70V: 30W, 15W, 7.5W, and 3.8W.
- 100V: 30W, 15W, and 7.5W.
- 8Ω
Specifications
- Drivers: 5.25" Woofer, 3/4" dome tweeter
- Frequency Response (±3dB): 65Hz-16kHz
- Frequency Range (-10dB): 55Hz-18kHz
- Power Rating: 160W Program power/320W peak power.
- Sensitivity: 86dB @ 1W
- Nominal Coverage Angle: 360˚ H / 160˚V
- Maximum SPL: 105dB @1M
- Dimensions: Diameter = 13.0", Height = 16.75"
- Net Weight: 12 lbs.
