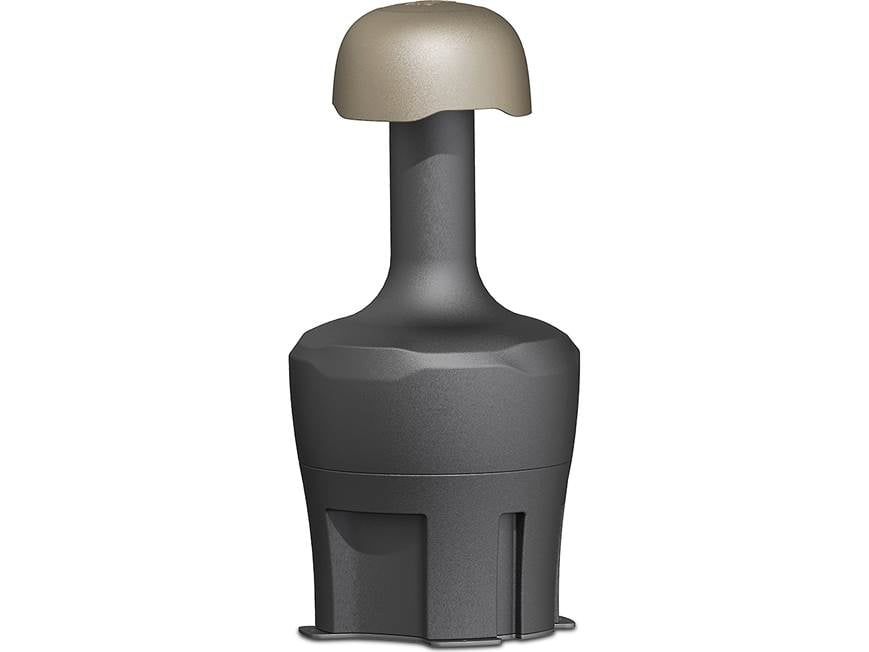

JBL GSB12 Weatherproof in-ground 12" subwoofer (Tan)

Name: JBL GSB12
Brand: JBL Pro
SKU: 855GSB12TN
Price: 715.0 USD
Availability: InStock
Rating: 3.5 (2 reviews)

Item # 855GSB12TN

It installs in your landscaping to deliver deep bass for an outdoor commercial sound system.

Front

1/2

Only at Crutchfield

2/2

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

It installs in your landscaping to deliver deep bass for an outdoor commercial sound system.

Item # 855GSB12TN

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$715.00 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Eric A.

A burial-rated subwoofer with big-time bass

The JBL GSB12 installs underground in your lawn or garden area, adding deep, powerful bass to your outdoor commercial sound system. Burying this sub leaves only its top-mounted port cap visible above the ground. It pairs perfectly with JBL's GSF commercial landscape speakers for a discreet-looking installation.

The GSB12's 12" woofer handles up to 900 watts program power (450 watts RMS), and its 70/100-volt transformer allows convenient integration with distributed commercial audio systems. The woofer is protected by a composite enclosure, and its port cap is weatherproof so the sub can stand up to the elements.

Product highlights:

12" woofer in weatherproof, burial-rated enclosure
900 watts continuous program power, 450 watts RMS
built-in transformer for use with 70-volt commercial systems
- 70-volt taps at 50, 100, and 200 watts
- 100-volt taps at 100 and 200 watts
- 6-ohm bypass
frequency response: 39-107 Hz (±3dB)
maximum SPL: 118 dB
sensitivity: 85.5 dB
omnidirectional coverage pattern
IP66 weatherproof rating
built-in grab handles for easier installation

Dimensions and warranty:

15-15/16" diameter x 32-15/16" height
weight: 35.7 lbs.
warranty: 5 years woofer, 2 years enclosure
MFR # JBL-GSB12-TN
Item # 855GSB12TN
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

JBL GSB12 owner's manual

In-ground 12" subwoofer enclosure (tan) w/attached 40" bare-ended speaker wire
Base plate
Eight 20mm counter-sunk screws
7 Wire nuts
Installation guide
Specificaton sheet

Researched by Crutchfield's Russ B.

Features & specs

General
Drivers Per Speaker	1
Woofer Size (inches)	12
Tweeter Size (inches)	---
System Frequency Response	39-107Hz
Maximum SPL	118
Number of Speakers Included	1
Power Handling
Power Rating	450
Peak Power Rating	---
70V Transformer Taps (watts)	50W, 100W, 200W
100V Transformer Taps (watts)	100W, 200W
8-ohm Bypass	Yes
Specs
Width (inches)	15-15/16
Height (inches)	32-15/16
Depth (inches)	---
Weight	35.7 lbs

Product Research

Features

Overview: The JBL GSB12 In-Ground Landscape Subwoofer is designed to compliment JBL GSF full-range landscape speakers to provide rich, full-range sound in the lawn and garden areas of hospitality, corporate, and retail spaces.

Design & Installation: The JBL GSB12 features a 12" subwoofer driver mounted in a fully-composite enclosure with a weatherproof port cap. The enclosure's bandpass design can deliver deep, low-end extension, with only the port cap and port tube visible above the ground. The port cap features a down-facing opening that's protected by heavy screen mesh, keeping out dirt and insects. An included Base Plate can be attached to the bottom of the enclosure, providing added stability. It also adds additional security by making the subwoofer more difficult to pull out of the ground. The GSB12 subwoofer can be mounted to a flat horizontal surface; additional screw holes on the base plate can be used to attach it to a deck or flooring.

Note: The JBL GSB12 will require a hole to be dug approximately 22" in diameter and 26" deep for installation.

Power: The JBL GSB12 landscape subwoofer can handle 450W of RMS power (1800W peak) and can be wired for 6-ohm, 70V, or 100V operation. Connection to the enclosure is made through an installed 40" input harness consisting of bare-ended 14 ga. speaker wire that's protected by a heavy-duty outer sheath. Voltage taps are determined by the color of wire connected to your amplifier;

70V: 50W, 100W, 200W
100V: 100W, 200W
6-Ohm: Bypass

Dimensions:

Overall Height: 32.88"
Above-Ground Height (exposed): 10.0"
Port Tube Height: 10.0" (top of enclosure to bottom of port cap)
Port Cap Diameter: 10.75"
Body Diameter: 15.88"
Base Diameter: 13.25"
Base Plate Diameter: 15.0"
