About the Monitor Audio Gold On-Wall 6G

Product highlights:
- MPD III folded ribbon tweeter for uncolored and extended high-frequency response
- 6" mid-bass driver with C-CAM® (Ceramic-Coated Aluminum/Magnesium) cone material for high efficiency and low distortion
- woofer utilizes HDT (Hexagonal Diaphragm Technology) for improved rigidity and reduced driver weight
- machined aluminum drive unit trims
- ported cabinet design using HiVe® II port technology and through-bolt technology
- port tuning: 44 Hz
- rotatable tweeter (up to 90 degrees) for use as a center speaker
- nominal impedance: 4 ohms
- recommended amplifier power: 130-300 watts RMS
- frequency response: 38-60,000 Hz (-6dB)
- sensitivity: 88 dB
- removable magnetic grill included
- 11-13/16"W x 18-5/16"H x 4-7/8"D (including grilles and binding posts)
- weight: 19.88 lbs
- warranty: 5 years
- MFR # G6GOWMC
- Item # 893G6OWCM
What's in the box:
Monitor Audio Gold On-Wall 6G owner's manual
If you need assistance accessing this owner's manual, please give us a call.- On-wall loudspeaker
- Grille
- 4 Rubber feet
- Hex-key
- Quick Setup Guide
- Important Safety Instructions
More details on the Monitor Audio Gold On-Wall 6G

Features & specs
Enclosure | Ported | |
Number of Speakers | 2 | |
Wall mount | Fixed keyhole mount | |
Tweeter Type | MPD III (Ribbon) | |
Tweeter Size (inches) | --- | |
Midrange Size (inches) | N/A | |
Woofer Size (inches) | 6 | |
Woofer Composition | C-CAM | |
Woofer Surround | Rubber | |
Connector Type | Binding post | |
Power Range | 130-300 | |
Sensitivity | 88 dB | |
Impedance (Ohms) | 4 | |
Height (inches) | --- | |
Width (inches) | --- | |
Depth (inches) | --- | |
Weight (pounds) | 18.75 | |
Parts Warranty | 5 Years | |
Labor Warranty | 5 Years |
Product Research
Features
Multi-Purpose Loudspeaker: The Monitor Audio Gold On-Wall 6G is a multi-purpose loudspeaker that can be used as a front, center, or surround channel loudspeaker in a home theater system. It feature integrated keyhole slots on the back of the cabinet that allow you to mount the speaker to your wall (wall-mount screws not included and sold separately at your local hardware store). Self-adhesive bumpers are included that attach to the back of speaker to help isolate the speaker from your wall's mounting surface and protect your wall from damage.
- As front speakers in a home theater system, the listening position and the Gold On-Wall 6G speakers should form an equilateral triangle. Ideally the speakers should be positioned approximately 6' to 10' apart and mounted at ear level when in your main seated listening position.
- As surround speakers, the Gold On-Wall 6G speaker should be positioned directly to the side of the main listening position and facing each other. As surround back speakers, the Gold On-Wall 6G speaker should be located behind the main listening area and facing the front of the room. The surround or surround back speakers should be mounted at ear level or slightly above ear level when in your main seated listening position.
Note: The Gold On-Wall 6G speaker cannot be tabletop mounted due its design and down-firing ports located on the bottom of the cabinet.

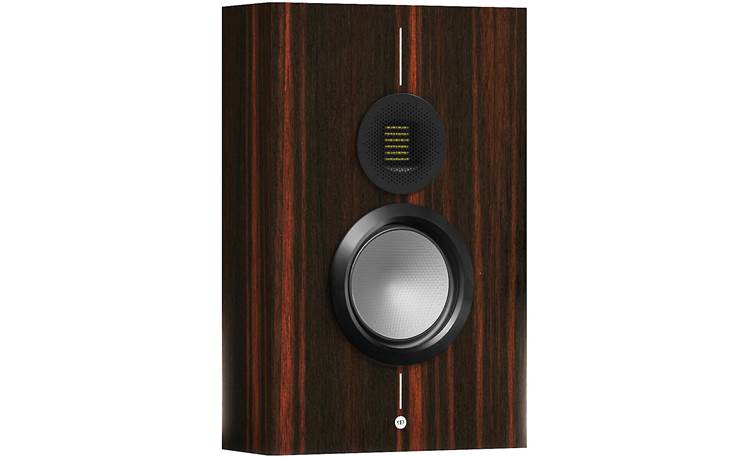

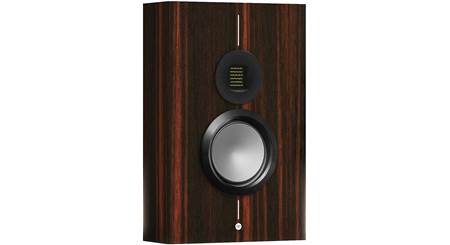

2-Way Driver Design: The Monitor Audio Gold On-Wall 6G loudspeaker delivers impressive high-fidelity sound with purity & precision thanks to its 2-way driver design that consists of MPD III high-frequency transducer alongside a HDT, C-CAM 6" mid-bass woofer.
- MPD III Tweeter: The result of an extensive development proc/ess to refine and achieve even greater performance, the latest generation of Monitor Audio’s MPD III (Micro Pleated Diaphragm) transducer delivers precise high-frequency sound with greater consistency, clarity and accuracy. The detail achieved makes your music sound more lifelike, crisp and real.
- 6" Mid-Bass Woofer: With the new HDT, C-CAM cone, FEA-optimized surround and spider designs, plus increased voice coil length, the 6" mid-bass woofer exhibits greater linearity, reducing distortion for cleaner and punchier low end. Rigidly secured in place by a new cast aluminum, light-weight chassis design, it provides the optimum structure with maximum airflow around the drive unit.
HDT, C-CAM Driver Technology: Monitor Audio's Gold Series 6G boasts a totally new metal cone technology in the form of HDT (Hexagonal Diaphragm Technology). The new HDT cone employs a hexagonal pattern to disrupt symmetries in the cone breakup. The use of C-CAM (Ceramic-Coated Aluminum/Magnesium) over standard aluminum also results in a stronger, more fatigue-resistant cone. This means that Gold Series 6G drivers perform exactly as Monitor Audio's engineers intended, delivering dynamic passages with exceptional precision for true high-fidelity playback.
Technically Accurate Crossover Design: The technically accurate crossover network of the Gold Series 6G has been developed using high-quality capacitors and undergone hundreds of hours of listening by Monitor Audio's acoustics team to ensure the smoothest, cleanest audio signal is delivered to each driver unit
High Quality Cabinetry: The Gold Series 6G speaker cabinet is designed to form the most rigid structure as possible, which allows the drivers to perform to their optimum capabilities. Coupled with cleverly calculated geometry and advanced bracing techniques, the cabinet is a crucial element of Monitor Audio's Transparent Design Philosophy. Finished in a beautiful, but subtle black, white, or wood veneer with machined aluminum trim, the Gold Series 6G speaker blends in with almost any room decor.
- Single Through-Bolt Mount: Each driver is fixed to the cabinet with single through-bolt mounts. The single through-bolt design provides mechanical decoupling for the drivers, plus acts as rigid cross bracing system to prevent unwanted resonance.
- HiVe II Port: The speaker cabinet employs Monitor Audio's HiVe II port technology with two bottom-firing ports for the bass driver. Rifled grooves inside the HiVe II port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.

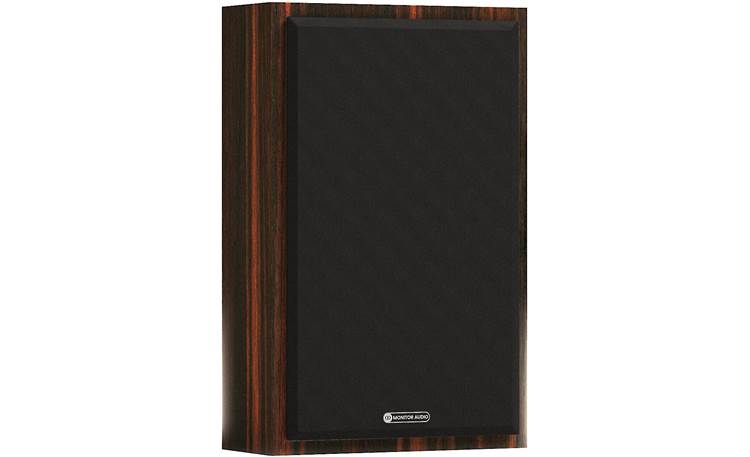

- Acoustic Transparent Grille: An acoustic transparent black cloth grille attaches magnetically over the tweeter and mid-bass woofer.

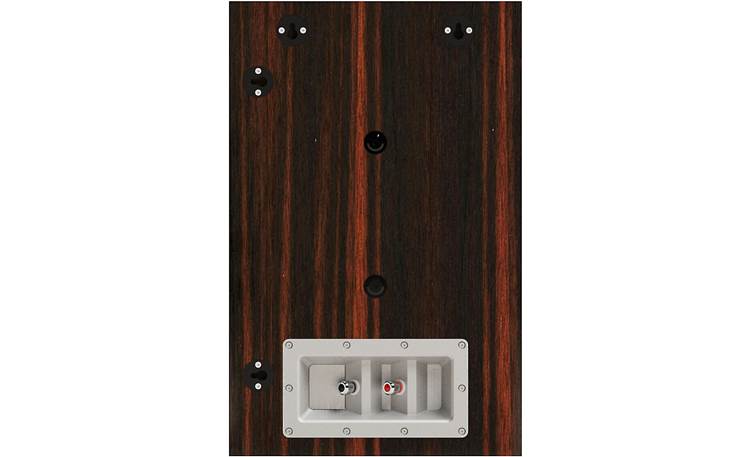

Binding Post Terminals: The Gold On-Wall 6G loudspeaker is outfitted with a set of binding posts that will accept bare wire (up to 10AWG), pin connectors, & banana plugs (single only). Plastic inserts within the binding posts will need to be removed to connect banana plugs.
Gold Series 6G: Monitor Audio's Gold Series 6G is comprised of six highly-distinctive models. Each of which is crafted to celebrate Monitor Audio's legendary sound, while adding innovative acoustic technologies that enhance performance and heighten your listening experience. The all-new Gold Series 6G is built upon an R&D philosophy of maintaining a balance between design and technology. One is never allowed to overpower the other and both play a vital role in delivering on our promise of musical neutrality and acoustic transparency.
- Floorstanding Models: Gold 500 6G, Gold 300 6G
- Bookshelf/Stand-Mount Models: Gold 100 6G, Gold 50 6G
- Center-Channel Model: Gold C250 6G
- On-Wall Model: Gold On-Wall 6G
Note: Break-in the Gold Series 6 loudspeakers by playing your music at low-to-mid listening levels for approximately 50-70 hours. You may find the sound will continue to improve even after the 70 hour mark. This can be done naturally over time, or done by setting up a continuous loop for music playback.
Optional Subwoofer: For even bigger and more immersive bass, combine the Gold Series 6G loudspeakers with a Monitor Audio powered subwoofer (sold separately).
