Features

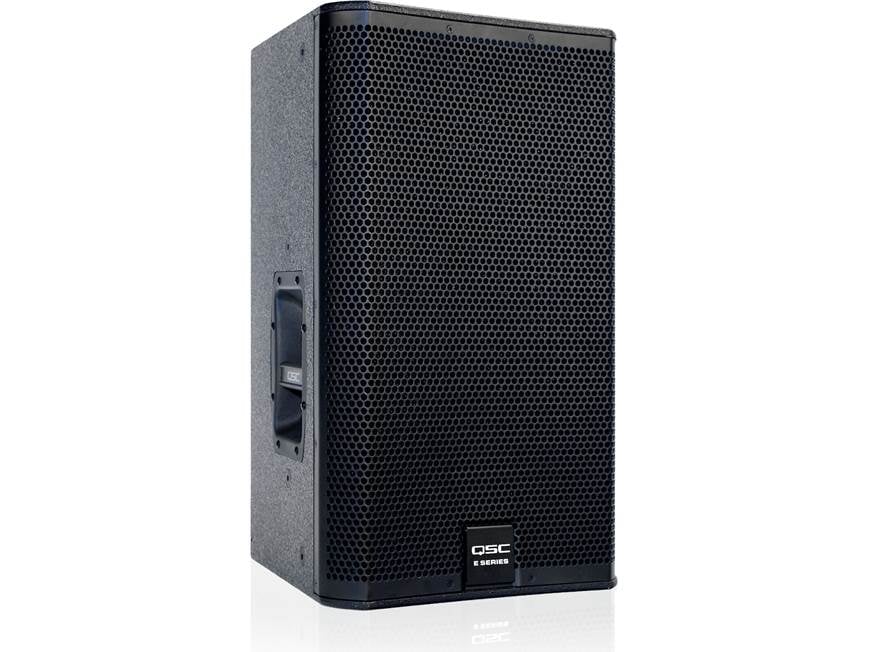

Overview: The QSC E112 is a passive, two-way loudspeaker with a multi-purpose design that can be used either as a stage monitor or as a main PA speaker. It features a 12" woofer, with a die cast frame and a 3" voice-coil, along with a 1" compression driver, housed in a durable plywood enclosure that's coated in tour-grade textured paint and includes a foam-lined perforated steel grill. The E112 is capable of outputting 400 watts of continuous and 1600 watts peak power.

Mounting: The E112's multi-purpose design allows it to be used for a wide variety of applications including for touring musicians, houses of worship, rental and production companies and more. Two sets of rubber feet allow the speaker to be seated either upright or on its side as a stage monitor. This second option lets the speaker to sit at a 55˚ angle, allowing it to be placed right in front of a performer when used on a crowded stage. Multiple threaded mounting points are located on the top, bottom, and sides of the speaker for use with the optional E-Series Yoke Mount or M8 Eyebolt kit. The Yoke Mount bracket can mount the speaker to a wall or ceiling, while the M8 Eyebolt kit allows it to be suspended or "flown" upright or on its side. The E112 includes two 35 mm sockets for pole-mounting. One mounts the speaker level while the other socket provides a 10˚ down-angle for improved audience coverage. An integrated carry-handle on the top of the speaker makes for easy portability.

DSP: QSC E-Series loudspeakers can be used with any high quality, appropriately powered amplifier, but can achieve greater performance when used in a complete E-Series Entertainment System. QSC GXD and PLD series amplifiers, as well as TouchMix digital mixers, feature built-in DSP (Digital Signal Processing) that's matched to the speakers, greatly enhancing the overall sound from the system.

Wiring: The E112 includes a 2-terminal barrier strip, for a direct speaker wire connection, as well as two NL4 (Speakon) connectors that are wired in parallel. One acts as the input to the speaker while the other is a pass-through for daisy-chaining multiple speakers together.

Specifications:

• Frequency Response (-6 dB): 64 Hz - 20 kHz
• Frequency Range (-10 dB): 46 Hz - 20 kHz
• Power Handling (program/peak): 800 W / 1600 W
• Sensitivity: 95 dB, 1 W @ 1 m
• Coverage Angle: 85˚ Conical
• Peak Output: 126 dB SPL @ 1 m
• Drivers:
  • LF: 12" driver with 3" voice-coil
  • HF: 1" compression driver with 1.75" voice-coil
• Nominal Impedance: 8Ω
• Crossover: 1.8 kHz
• Connectors: (2) NL4 (Speakon), (1) barrier-strip
• Enclosure: Plywood with black textured paint finish. Perforated powder-coated steel grill with foam lining. Top-mounted handle
• Mounting and Suspension: 4 x M8 suspension points, dual 35 mm pole-sockets (one with 10˚ angle)
• Net Weight: 51 lbs.
• Dimensions: Width - 14.25", Height - 24.25", Depth - 14.625"
