Leica M10-R (no lens included) 40-megapixel full-frame mirrorless camera body with Wi-Fi

Features

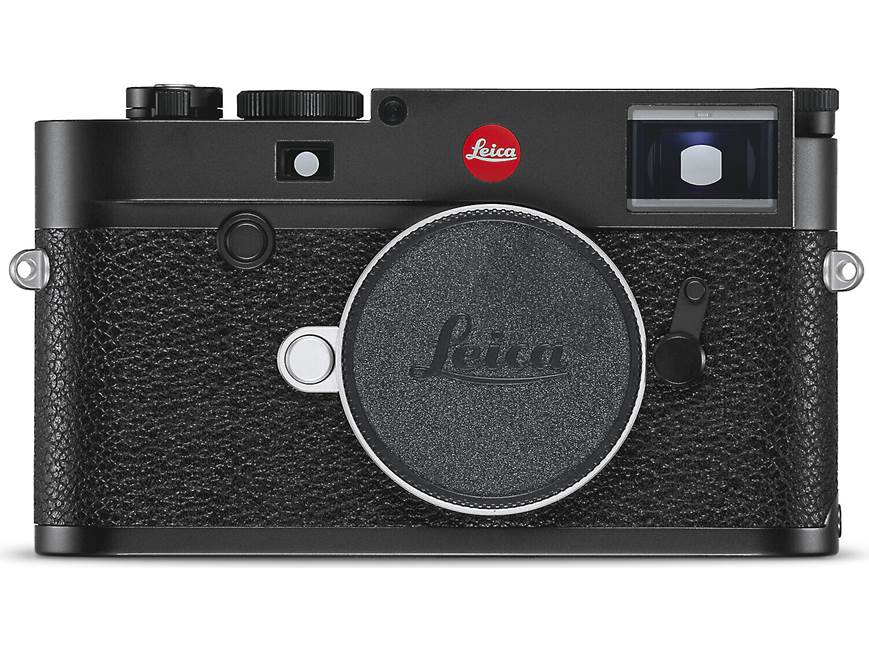

Overview: The Leica M10-R digital rangefinder camera (model 20002-black chrome) has a 40MP full-range CMOS image sensor for capturing high resolution images. With the Maestro II image processor, the camera delivers beautiful color photographs with wide dynamic range and increased sensitivity. The M10-R has the same slim body style as Leica's film cameras, making it easy to handle. The camera features a magnesium alloy chassis with solid brass top and bottom plates, and a black chrome-plated finish. Strategically placed rubber seals help to keep out moisture and dust. The M10-R comes with a rechargeable battery, a battery charger, and shoulder strap. No lenses are included in this "body only" package.

Lenses: The M10-R features the Leica M bayonet mount which accepts Leica M lenses. With an optional adapter, you can attach Leica R-series lenses, as well.

Viewfinder/Rangefinder: The camera has a large optical viewfinder with 0.73x magnification for composing and focusing your shots. The viewfinder is calibrated to -0.5 dpt, and corrective lenses from -3 to +3 diopter are available. The camera is also equipped with a rangefinder which displays split or superimposed bright field images for accurate manual focusing control. An optional Leica Visoflex EVF (electronic viewfinder) can be attached to the accessory shoe to provide additional features, including a diopter adjustment and the transfer of GPS data to the camera.

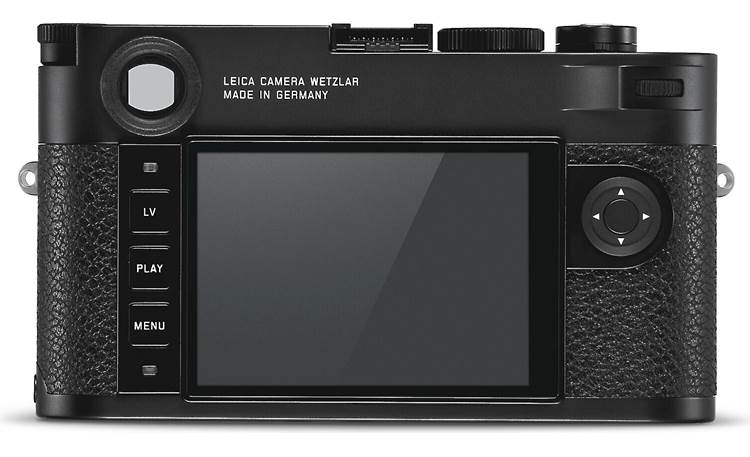

Monitor: On the rear panel is a 3" TFT LCD panel with 1,036,800 dots and touch control. The monitor has a Gorilla Glass cover to protect the panel from light impacts and scratching.

Full-frame Image Sensor: The camera features a full-frame (24 x 36mm) CMOS color image sensor with 40.89 effective megapixels with a 3:2 aspect ratio.

Accessory Shoe: The M10-R is equipped with an ISO accessory shoe for attaching accessories, such as the SF60 or SF40 flash units. The shoe has additional contacts for the optional Leica Visoflex EVF.

Still Images: The M10-R can take JPEG still images in 3:2 aspect ratio only in three sizes: Large (40.64MP): 7840 x 5184 pixels, Medium (20MP): 5472 x 3648 pixels, or Small (6MP): 2976 x 1984 pixels. You can save your JPEG images in color or monochrome. In addition, you can capture lossless DNG (digital negative) images using the raw data from the image sensor (7864 x 5200 pixels -- 40.89MP) and 14-bit color depth. You'll need to convert the raw data to JPEG or other format files using Adobe Photoshop Lightroom.

Memory Cards: The camera has a single slot that will accept SD, SDHC, and SDXC memory cards up to 512 GB.

Drive Modes: The menu offers the following drive modes:

• Single: Normal, single image recording.
• Serial Exposures: You can choose from Continuous High Speed (approx 4.5 fps) or Low Speed (approx 3 fps).
• Interval: For shooting a series of photos over an extended period, you can set the camera to record a specific number of images over a set amount of time. In the menu, you can select the Number of Frames and the Interval Between Frames.
• Self Timer: You can set the self timer to 2 seconds (to avoid camera shake) or 12 seconds (to allow the photographer time to get into the picture)
• Exposure Bracketing: Exposure Bracketing lets you take 3 or 5 images, each with different exposure compensation. Bracketing range is ±3 EV in 1/3 EV increments.

Focusing Methods: The M10-R lets you focus in Live View Mode or via the Rangefinder. Using the Rangefinder, you can use the superimposed image (double image) method or split image method. For portraits, you can focus on the eyes, turning the focus ring on the lens until the contours are aligned exactly in the metering field. For architectural photographs, you can aim the rangefinder at a clearly defined vertical line and turn the focus ring until the split images line up. In Live View mode, you can view the target image in the LCD monitor, using a zoomed in portion of the screen to bring your item into focus. You can also focus using a Focus Peaking assist function which shows the focused areas of the selected target inside a colored frame.

ISO Sensitivity: You can set the ISO sensitivity between ISO 100 and ISO 50000. There are 28 total ISO settings, selectable in the menu in 1/3 EV increments. On the ISO setting wheel, you can quickly set the camera to ISO 100 to ISO 6400. The sensitivity can be set manually or automatically.

White Balance: The Leica M10-R lets you select the white balance using four different methods: automatic control, fixed presets, manual setting via metering, and direct setting of the color temperature. The presets include Daylight, Cloudy, Shadow, Tungsten, HMI, Fluorescent Warm, Fluorescent Cool , and Flash. The color temperature settings can be selected in the menu between 2000 K and 13100 K.

Exposure Modes: There are two exposure modes: Aperture Priority or Manual. Aperture Priority sets the exposure automatically according to the manually selected aperture. Once you set the aperture value (on the attached lens), the camera automatically selects the appropriate shutter speed to obtain the exposure you desire. Low aperture settings provide a narrower depth of field to make your subject stand out against an unfocused background. A high aperture setting gives you a wider depth of field with items in the foreground and background in focus.

Exposure Compensation: You can adjust the metered exposure to make an image lighter or darker. Exposure compensation can be set in the range of -3EV to +3EV in 1/3EV increments.

Shutter Speeds: The camera offers shutter speeds that can be set automatically (in Aperture Priority mode), or manually. Shutter speeds are available from 1/4000 to 16 minutes in Aperture Priority. Manual shutter speeds can be set from 8 seconds to 1/4000, and from 8 to 16 seconds in half steps. Fixed shutter speeds above 8 seconds are available. Bulb settings are available up to 16 minutes (depending on the ISO setting) while the shutter button is held down. When the Time Function is enabled, the shutter button doesn't have to be held down. The Time exposure starts when you press and release the shutter button, and ends when you press and release the shutter button a second time.

Auxiliary Displays: To help you with your images, you can view the auxiliary displays. The Clipping Display marks bright areas of your image in flashing red and dark areas in flashing blue. A Level Gauge shows the orientation of your shot along horizontal and vertical axes. Zero positions are shown with green lines, and tilted positions are shown in red. When shooting in portrait orientation, the camera will automatically switch the aspect of the level gauges. You can choose between two grid overlays (3x3 and 6x4) to divide the image into multiple fields to facilitate picture composition. There is also a histogram display that represents the brightness distribution of the image.

Battery: The M10-R is powered by the supplied BP-SCL5 Lithium-ion rechargeable battery (7.4V 1100mAh). The battery charges in the supplied BC-SCL5 charger (output: 7.4V 1000mA). The charger comes with an AC power cord, as well as an in-car charger cable. The input voltage automatically switches between 100-240V AC 50/60Hz 300mA to 12V DC 1.3A. No battery life specs were provided by the manufacturer.

Review Mode: In Review Mode, you can view the stored recordings one at a time, or multiple thumbnails simultaneously. Pressing the Play button brings up the last picture taken. The images are visually arranged on a horizontal reel, and you can scroll left to right using the directional buttons or by swiping the touchscreen with your finger. Tapping an image allows you to view the camera settings in the header and footer lines. You can zoom into any section of the image for closer inspection using a two-finger pinch/spread action or button control. You can view 12 (3 rows of 4 images) or 20 (4 rows of 5) thumbnail images to make photos easier to find.

Wi-Fi: The camera can connect wirelessly to your local network (802.11 b/g/e) through the Leica FOTOS app. When connected, you can take pictures remotely via the mobile device, change image settings, and transfer data to the mobile device. The Leica FOTOS app is available for iPhone, iPad, and iPod touch running iOS 12.0 or later. It is also compatible with Android devices running version 6.0 and up.

Other Specifications:

• Dimensions: Width: 5.472", Height: 3.15", Depth:1.516"
• Weight: 23.81 ounces (with battery)
