About the Leica 8x20 Monovid

Product highlights:
General:
- 8x monocular with Leica AquaDura® lens coating to protect the optics from water, dust and dirt
- nitrogen-filled waterproof and fogproof design for use in all weather conditions
- HDC® multicoating increases contrast and provides true color rendition
- roof-prism design with phase-correcting P40 coating
- die-cast aluminum body
- sliding eyecup provides comfortable viewing with or without eyeglasses
- durable leather armor exterior offers non-slip grip
Specifications:
- magnification: 8x
- objective lens diameter: 20mm
- objective angle of view: 6.3°
- linear field of view at 1,000 yards: 330 feet
- internal focus via lens barrel ring
- close focus distance: 5.9 feet
- close focus distance with included close focusing lens: 9-13/16"-11-13/16" inches (25cm-30cm)
- exit pupil: 2.5mm
- eye relief: 15mm
- twilight factor: 12.7
- 1-3/8" diameter x 3-13/16"L
- weight: approximately 3.95 oz. (monocular); 4.44 oz. (with close focus lens)
- warranty: 10 years
Supplied Accessories:
- close focus conversion lens
- leather case with belt loop and silent magnetic closure
- wrist strap
- eyepiece protection cover
- MFR # 40390
- Item # 91040390
What's in the box:
Leica 8x20 Monovid owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 8x20 Monocular (black)
- Eyepiece cover (installed)
- Closeup lens
- Wrist strap
- Leather case
- Instructions
- Guarantee Card
- Serial number card
More details on the Leica 8x20 Monovid

Product Research
Features

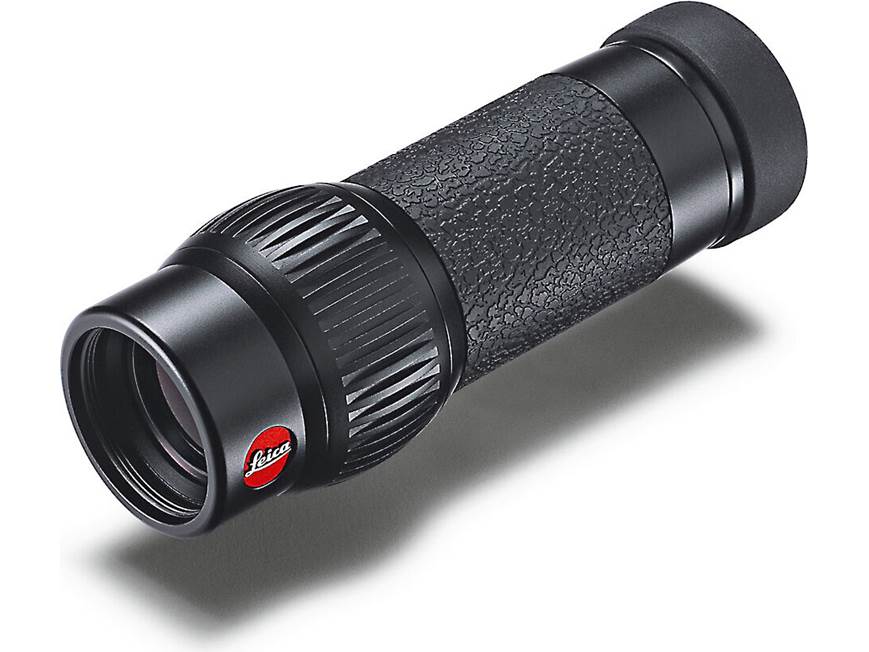

Overview: The Leica Monovid 8x20 (#40390) monocular is lightweight and easy to carry in your pocket or purse. It has 8x magnification, and comes with an accessory closeup lens for viewing objects as close as 10-12 inches. The Monovid 8x20 also comes with a wrist strap, eyepiece cap, and a genuine leather carrying case.
Waterproof: The Monovid 8x20 is water-tight to a depth of 5 meters (16.5 feet). The aluminum housing is filled with nitrogen to prevent fogging and condensation forming on the internal elements.
Premium Leica Optics: The Monovid monocular features premium Leica optics for sharp, high-contrast images with superior color fidelity. Leica's High Durable Coating (HDC) protects the outer lenses from scratches, and the AquaDura Coating makes water and oil bead up for easier cleaning. Internally, the roof prism is treated with P40 phase correction coating.
Closeup Lens: The Monovid 8x20 monocular includes a closeup lens that screws into the inner thread of the objective lens for viewing objects at a closer distance. The normal close-focusing distance is 5.9 feet. With the closeup lens installed, you can view items as close as 9.84" to 11.81" (25-30 cm) away.
Eyecup: The adjustable rubber eyecup makes it easy to position your eye at the correct eye-point for the greatest comfort. The eyecup can be extended for non-eyeglass wearers, or retracted to accommodate eyeglass wearers. The eye relief is 15mm.
Leica Warranty: This Leica Monovid monocular is covered by a 10-year warranty for its optics and mechanics.
Specifications:
- Model: Noctivid 8x20 (#40 390)
- Magnification: 8x
- Objective Diameter: 20 mm
- Close Focusing Distance: 5.9 feet (1.8 meters)
- Field of View at 1000 meters: 110 meters
- Exit Pupil: 2.5 mm
- Eye Relief: 15 mm
- Objective angle of view: 6.3°
- Twilight Factor: 12.7
- Dimensions: Diameter 1.394", Length 3.805"
- Weight: 3.95 ounces (4.44 ounces with closeup lens)
