MATCH MEC BTHD-UP10 Extension card — adds Bluetooth® streaming to your UP 10DSP amp/processor

Item # 975BTHDUP1

Do you use MATCH's UP 10DSP amp/processor? If so, this MATCH MEC BTHD-UP10 Extension Card allows you to...

Do you use MATCH's UP 10DSP amp/processor? If so, this MATCH MEC BTHD-UP10 Extension Card allows you to...

Item # 975BTHDUP1

Ships free

On backorder
Expected: 4/26/2024
$150.00

About the MATCH MEC BTHD-UP10

Buck Pomerantz

Add Bluetooth streaming to the mix

Do you use MATCH's UP 10DSP amp/processor? If so, this MATCH MEC BTHD-UP10 Extension Card allows you to wirelessly stream music directly into your sound system from your compatible Bluetooth device. Your smartphone or tablet becomes a high-quality music player that streams its digital content directly into your system with no degradation of the signal by another digital-to-analog conversion.

Add Bluetooth streaming to the mix

Do you use MATCH's UP 10DSP amp/processor? If so, this MATCH MEC BTHD-UP10 Extension Card allows you to wirelessly stream music directly into your sound system from your compatible Bluetooth device. Your smartphone or tablet becomes a high-quality music player that streams its digital content directly into your system with no degradation of the signal by another digital-to-analog conversion.

High-fidelity

This extension card uses Qualcomm® aptX™ Bluetooth codec and the A2DP profile, which means you'll get near-CD quality sound for your musical entertainment. In addition, the extension card features an optical digital output, so you can send high-quality signals to another device with no degrading analog conversion necessary.

Mounts inside the amp

To install this MATCH extension card, you'll need to remove the side panel of your amp and replace it with a new side panel that comes with the module. MATCH includes step-by-step instructions and an installation tool to help you mount the extension card inside your MATCH UP 10DSP.

Note: This Bluetooth extension card only works for streaming music and does not support hands-free calling.

READ LESS

Product highlights:

  • Bluetooth input interface for a MATCH UP 10DSP
  • Bluetooth v5.0
    • A2DP profile
    • Qualcomm aptX codec
  • range: up to 10m (33')
  • SPDIF optical digital output (96 kHz, 24 bit)
  • replacement side panel, installation tool, and instructions included
  • warranty: 2 years
  • MFR # MEC BTHD-UP10

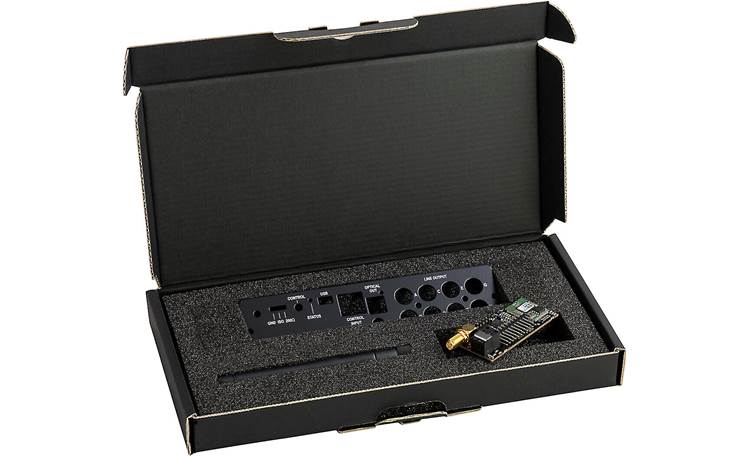

What's in the box:

  • Bluetooth input/optical output extension card
  • 4.25" Antenna
  • Replacement side-plate
  • Instructions

Customer reviews for MATCH MEC BTHD-UP10

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the MATCH MEC BTHD-UP10

Mark G.

Product Research

Features

Overview: The Match BT HD Extension Card is an optional add-on module for the Match UP 10DSP amplifier/processor (sold separately). The MEC BT card adds Bluetooth audio streaming capability, including HD, as well as an optical digital output in S/PDIF format. The BT HD Extension Card comes with a detachable 4.25" swivel-antenna and a replacement side-panel for the DSP amplifier which provides the extra slots needed.

Compatibility: The Match BT Extension Card is compatible with the Match UP 10DSP DSP amplifier (sold separately).

Bluetooth 5.0+EDR: The BT HD supports High-Definition audio up to 576 kbps and 24 Bit/48 kHz sampling rate. The Extension Card sends HD Bluetooth signals directly to the amplifier's DSP without additional conversion, allowing for lossless processing and higher sound quality.

Profiles & Codecs: The BT HD Extension Card supports A2DP, AVRCP, and SPP profiles along with SBC, AAC, aptX, aptX HD codecs.

Optical Digital Output: The Match BT HD Extension Card includes a S/PDIF optical digital output that lets you send unprocessed input signals or DSP-processed signals out to additional equipment. The optical digital output can send uncoded stereo PCM audio in either 96 kHz/24 bit or 48 kHz/24 bit, depending on the sampling rate of the designated device.

Wireless DSP Tuning: The Match BT HD lets you wirelessly configure the DSP for your compatible amplifier using the DSP PC-Tool V5 software installed on your Bluetooth-enabled PC (Windows 10 & 11, 32/64 bit).

Control Commands: The BT HD supports control commands - Play/Pause, Track Forward/Back, Connecting/Disconnecting, and Pairing, when your compatible Match amplifier is connected to an optional Helix/Match remote control, such as the Conductor or Director (both sold separately). When used with the Director, the current artist & title, and audio codec will be displayed.

Specifications:

  • Bluetooth standard: v5.0 + EDR
  • Bluetooth profile: A2DP, AVRCP, SPP
  • Bluetooth codec: SBC, AAC, Qualcomm aptX, Qualcomm aptX HD
  • Number of paired devices: 8
  • Wireless frequency range: 2402 - 2480 MHz
  • Bluetooth range: Up to 10m (33 feet)
  • Digital optical output: S/PDIF 96 kHz/24 Bit or 48 kHz/24 Bit
  • Antenna length: 4.25"
  • Card Dimensions:
    • Width: 0.62"
    • Height: 1.06"
    • Depth: 2.72"
