AtlasIED WTSD-MIX41K

Features

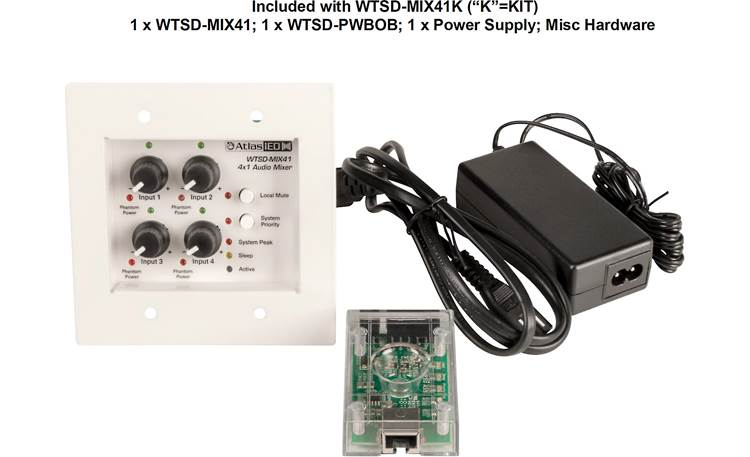

Overview: The Atlas WTSD-MIX41K is a 4x1 in-wall mixer with 4 balanced XLR mic/line inputs and a single balanced line output. The MIX41K (kit) includes a MIX41 mixer and a PWBOB (Power Break-Out Box) interface module. This provides both power for the mixer and the balanced audio line output via a 6-pin Phoenix (Euroblock) connector. The MIX41K is designed for use indoors or can be installed outdoors using the optional WTSD-COVER (sold separately). This optional stainless steel cover features weather-resistant gaskets and a built-in lock, providing tamper-proof operation indoors or outdoors. The WTSD-MIX41K is an ideal choice for sports complexes, school gymnasiums and rally areas, hotel ballrooms, community centers, industrial facilities and more.

Note: A CAT 5 or CAT 6 cable is required to connect the MIX41 to the PWBOB and must be purchased separately.

System Configuration: The Atlas WTSD-MIX41K system includes a MIX41 in-wall mixer and a WTSD-PWBOB interface module. The PWBOB interface provides power to the system, using the included +24VDC/2500mA AC power supply, as well as providing a balanced line-level output for running to an outboard amplifier. Connection from the PWBOB to the MIX41 is done via a single CAT 5 or CAT 6 cable (not included) that carries power, audio signal, and control signals. The mixer can be located up to 400' from the PWBOB's location. The MIX41 includes a second rear-panel RJ-45 socket for daisy-chaining up to 3 MIX41 modules or 2 MIX41 mixers and a WTSD-XLR4 XLR input panel (sold separately).

Balanced/Unbalanced Inputs: The MIX41 includes 4 balanced 3-pin Phoenix (Euroblock) connectors that can accept line- or mic-level signals. Each input can provide +22VDC of phantom power for condenser mics (selectable) if needed.

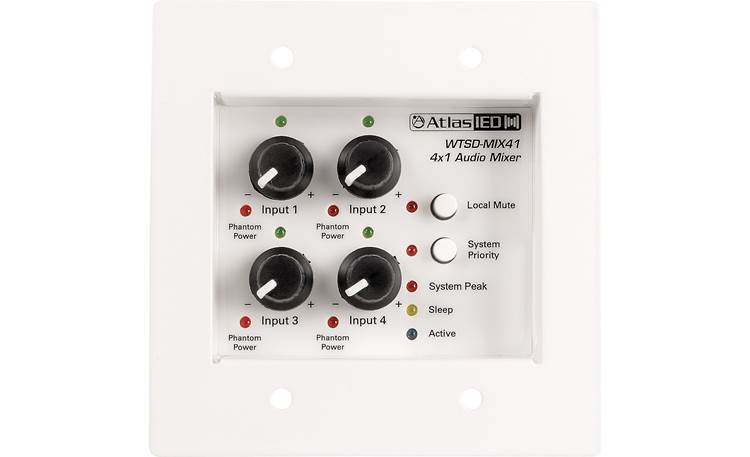

MIX41 Front Panel:

• Input 1-4 Level: Four rotary control provide the level adjustment for Inputs 1-4. Four corresponding LEDs will light green when the input signal reaches 25mV.
• Phantom Power Indicator: Four LEDs indicate if phantom power is activated for that Input.
• Local Mute: A push-button lets you quickly mute all local inputs on the MIX41. A corresponding LED will light red when Local Mute is engaged.
• System Priority: When this button is pressed, the MIX41 sends a command to the connected PWBOB interface module which sends a 12VDC trigger to an external device. This can be used to mute an external amplifier or power a piece of equipment On or Off. When activated, a corresponding LED will light red.
• Additional LED Indicators:
  • Active: Lights blue when the mixer receives +24VDC of power.
  • Sleep: The mixer will automatically go into Sleep mode when no audio has been detected for 1 hour. The LED will light yellow.
  • System Peak: Lights red when the input signal reaches 3dBV below the clipping point. Occasional flashing is normal. Input level should be reduced if LED lights continuously.

MIX41 Rear Panel:

• RJ-45 (To): This RJ-45 socket connects to the included PWBOB interface module via a CAT 5/6 cable (not included). All power for the MIX41 mixer is supplied from the PWBOB interface.
• RJ-45 (From): This RJ-45 socket connects to additional (optional) MIX41 modules in a daisy-chain configuration. Up to 3 MIX41 mixers can be daisy-chained together, with a maximum CAT 5/6 cable length of up to 400' between the farthest mixer and the PWBOB interface.
• Inputs: Four 3-pin Phoenix connectors provide the balanced/unbalanced, line- or mic-level signal inputs.
• DIP Switch Matrix: Five DIP switches provide the configuration for each input.
  • DIP #1 (Phantom): Activates +22VDC of phantom power for use with condenser mics.
  • DIP #2 (Mic/Line): Sets the corresponding Input for either line- or mic-level signals.
  • DIP #2 (Mic Pad): When in the up position, the mic gain setting will be the most sensitive. When in the down position, a 10dB pad is engaged.
  • DIP #3 (Mic HPF): When On, engages a 125Hz/12dB per oct. high-pass filter to reduce low frequencies. The filter can be applied to either Mic- or Line-level signals.
  • DIP #4 (Sleep): When in the down position (On), Sleep Mode will be activated when the mixer hasn't detected any audio signal for 1 hour.

PWBOB Connections & Indicators:

• RJ-45: Provides the CAT 5/6 connection from the PWBOB interface to the MIX41 mixer.
• 2-Pin Phoenix: Connects the included +24VDC/2500mA power supply.
• 6-Pin Phoenix: Provides connections for a balanced line-level audio output, along with the following additional connections:
  •  SYS Peak Logic Port: Provides a minimum +1VDC output when the Peak LED is illuminated.
  • Sleep Mode Logic Port: Outputs +22VDC when the mixer goes into Sleep mode.
  • Priority Logic Port: Used for muting outboard signals when paging is activated.
• 5 LEDs: Light to indicate Power, Signal, Sleep, Priority, and Sys. Peak.

Installation: The Atlas MIX41 is designed to be installed in a standard 2-gang electrical box (sold separately). The mixer has a depth of 2.31", but should have 3" of space to accommodate wiring.
