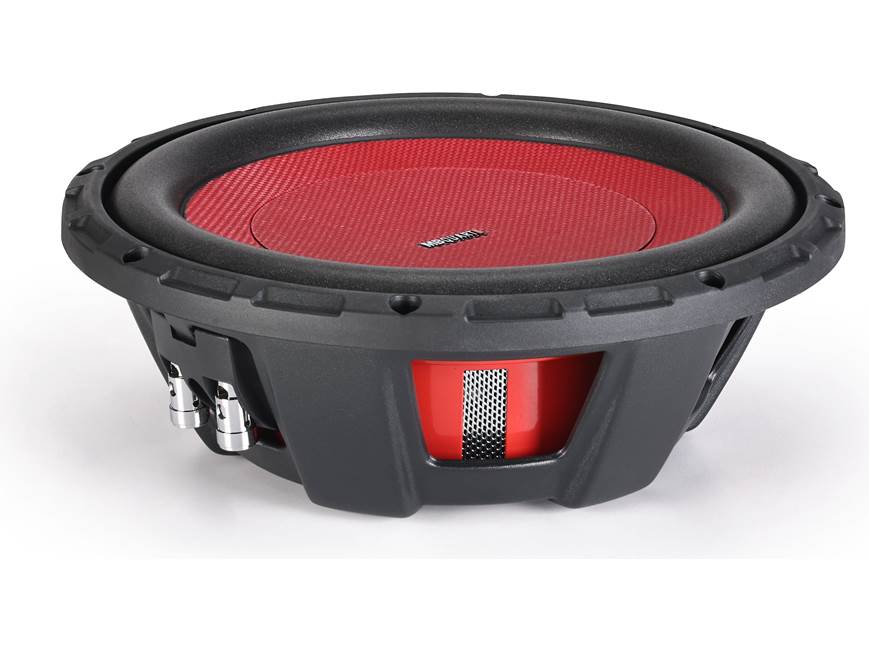

About the MB Quart DS2-254

Product highlights:

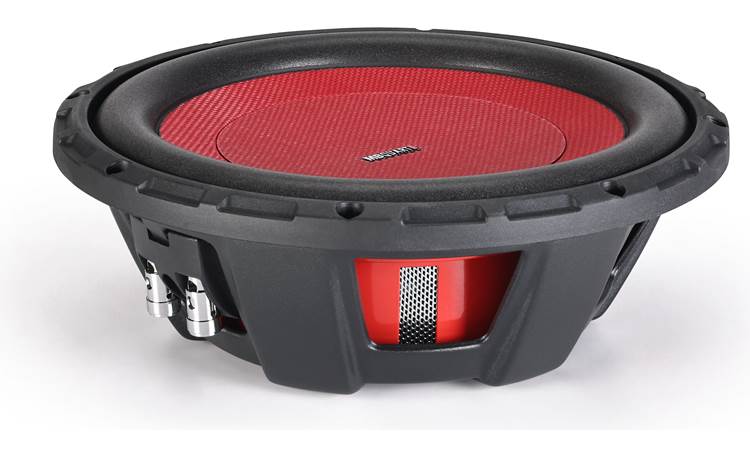

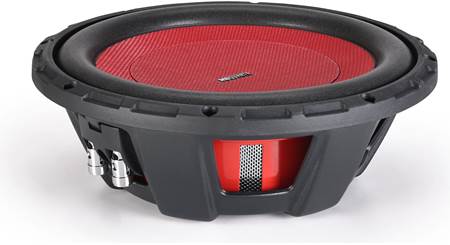

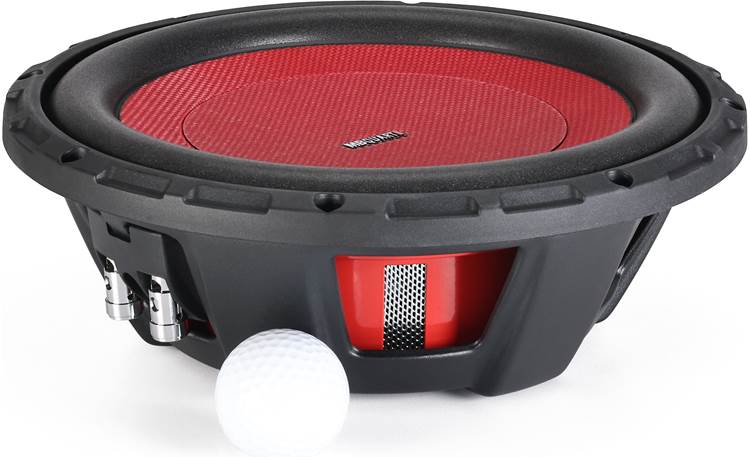

- 10" shallow-mount subwoofer with dual 4-ohm voice coils

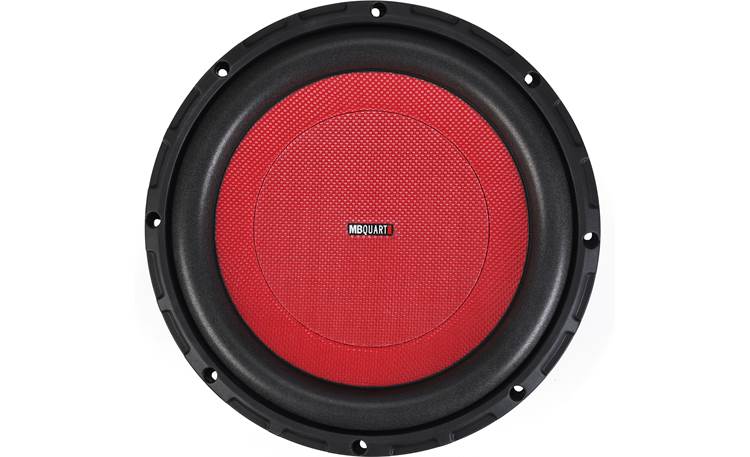

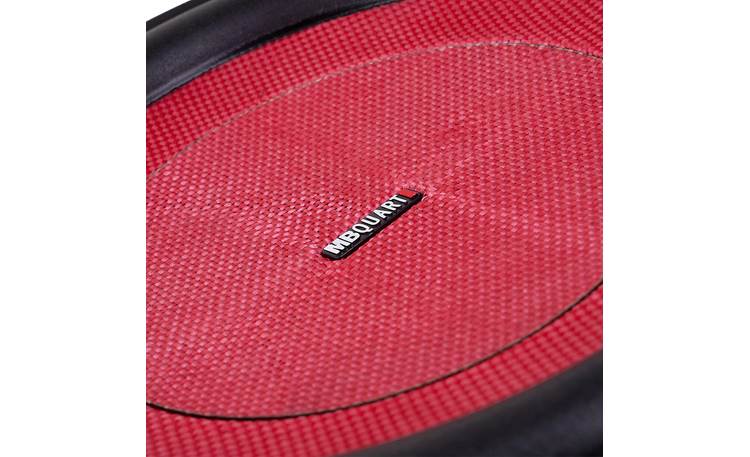

- lightweight woven fiber cone with foam surround and poly cotton spider
- stamped steel basket
- can be wired for 2-ohm or 8-ohm impedance
- power handling: 300 watts RMS (600 watts peak)
- frequency response: 27-300 Hz
- sensitivity: 85 dB
- mounting depth: 3.05"
- cutout diameter: 9.1"
- sealed box volume: 0.65 cubic feet
- warranty: 1 year
- MFR # DS2-254
- Item # 049DS2254
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
MB Quart DS2-254 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" Dual 4-ohm voice coil subwoofer
- Rubber trim ring/gasket (installed)
- Quick Start/Installation Guide
More details on the MB Quart DS2-254

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 2, 8 | |
Cone Material | Woven Fiber | |
Surround Material | Foam | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
85 dB at 1 watt | |
Frequency Response | 27 - 300 Hz | |
Max RMS Power Handling | 300 | |
Peak Power Handling (Watts) | 600 | |
Top Mount Depth (inches) | 3 1/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 9 1/8 | |
Frame Width | 10.265 | |
Frame Length | 10.265 | |
Vas (liters) | 34.92 | |
Fs (Hz) | 39 | |
Qts | 0.88 | |
Xmax (millimeters) | 8.7 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 0.65 | |
Minimum Sealed Box Volume (cubic feet) | N/A | |
Maximum Sealed Box Volume (cubic feet) | N/A | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Dual 4Ω Voice Coils: The dual 4Ω voice coils offer wiring flexibility; when the voice coils are wired in parallel the woofer presents a 2Ω load, when wired in series the woofer presents an 8Ω load.

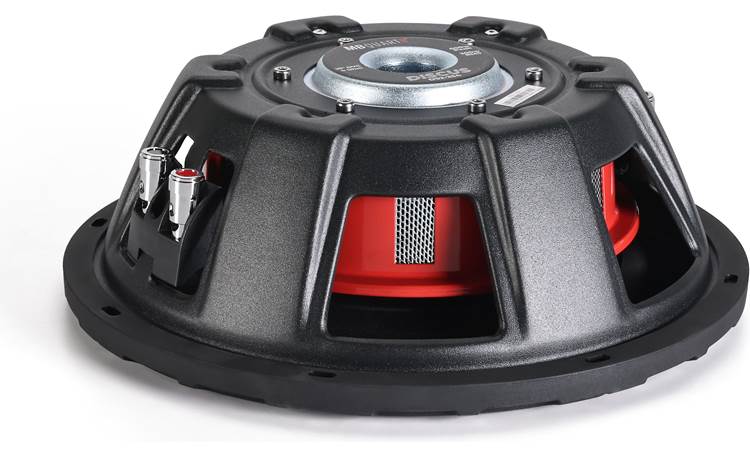

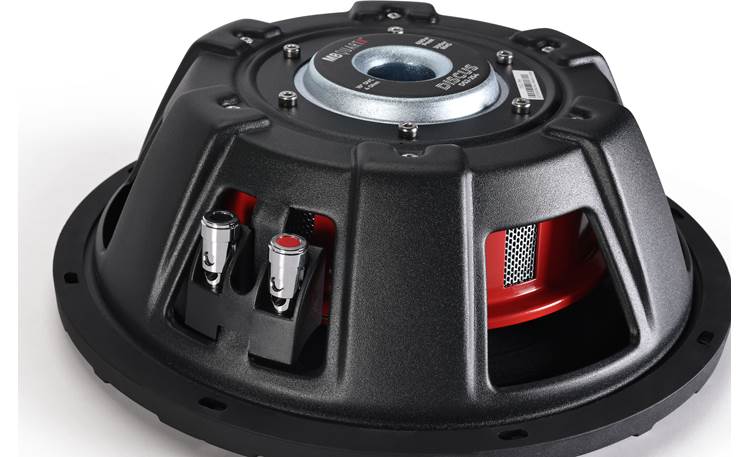

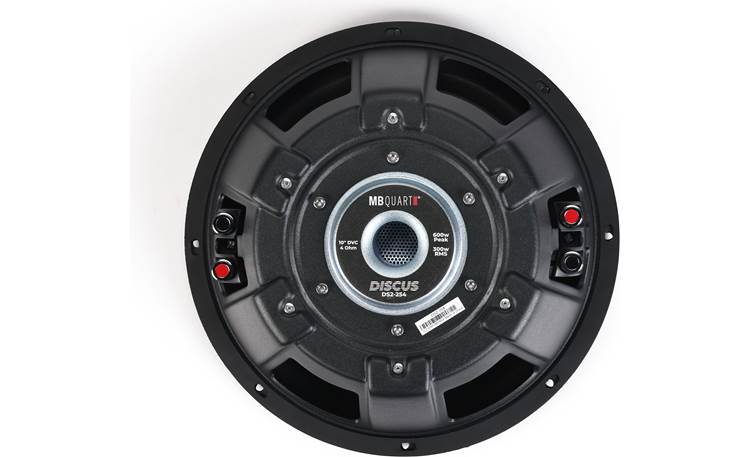

Terminals: The two sets of spring post terminals will accommodate single banana plugs and bare speaker wire up to 10-gauge.
Enclosure: MB Quart recommends this woofer be mounted in a sealed enclosure, the ideal volume being 0.65 ft³. Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music.
