Name: T-Spec v12 Series VDB2
Brand: T-Spec
SKU: 120VDB2
Price: 19.99 USD
Availability: InStock
Rating: 4.5 (15 reviews)

Overview

by Crutchfield's Buck Pomerantz

Distributes power securely and neatly

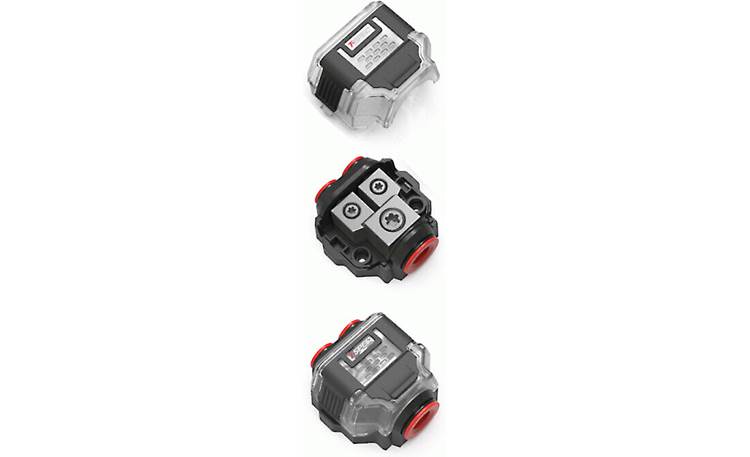

T-Spec designed their VDB2 distribution block to handle the high-current power distribution for two amplifiers, while keeping your wiring connected securely and looking neat. You can also use this hefty little block to combine the ground wires of two amps to a single grounding point. Solid black nickel-plated brass construction ensures reliable power flow, and an impact-resistant polycarbonate cover protects your connections from the weather. T-spec's Universal Screw Design for securing the wire to the block works with a variety of tools. Warranty: 1 year.

What's in the box:

v12-Series distribution block with one 1/0 set-screw input and two 4 or 8 AWG set-screw outputs
Plastic cover (attached)
3 Rubber grommets and sleeves (pre-installed on input and outputs)
Two 1/2" screws

MFR #VDB2

Reviews (15)

Loading reviews...

Average review:

15 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

filterStar

Customer photos

Customer provided image, click to load a larger version.

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Was this helpful?

<< >>

Details

Researched by Crutchfield's Mark G.

The T-Spec v12 Series VDB2 replaces these items:

T-Spec DB-1124

Product Research

Features

Overview: The T-Spec VDB2 compact 1 in/2 out distribution block is constructed of solid black nickel-plated brass for maximum conductivity. The distribution block features a translucent, impact-resistant polycarbonate cover with TPE (Thermoplastic Elastomer) grips for easy cover removal. The distribution block has a small footprint, with two holes in the base for mounting, either with the provided screws or with wire ties (not included).

Configuration: The distribution block has one input that can accommodate a 1/0 AWG wire, and two 4 or 8 AWG outputs. A rubber grommet and sleeve is provided on the input as well as the 2 outputs. The output grommets can be removed, with only the rubber sleeve installed, allowing 4 ga. wire to be inserted. These provide a tight seal against dirt or particle ingress with either size input wire.

Set Screws: Input and output connections are secured with Torx T-20 set screws. A T-20 Torx driver is required to tighten or loosen the set screws.

Optional Ferrules: Install Bay (Metra) wire ferrules (sold separately) are designed to crimp onto your power, ground, or speaker wire and provide a clean, solid connection to your terminal block or amplifier with set-screw connections. Bare wire is slid into the length of the ferrule and then crimped onto the wire. This keeps all copper strands held tightly together, with no splaying while tightening the terminal connection. Install Bay wire ferrules can be found here.
