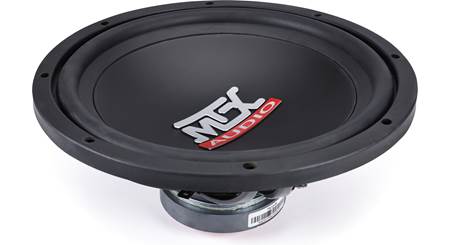

About the MTX TN12-02

Product highlights:
- 12" 2-ohm subwoofer
- polypropylene woofer cone with rubber surround
- power range: 100-200 watts RMS (400 watts peak power)
- frequency response: 24 Hz - 160 Hz
- sensitivity: 86.4 dB
- top mount depth: 5.44"
- cut out diameter: 11.08"
- volume displacement: 30.92 cubic inches
- sealed box volume: 1.25 cubic feet
- ported box volume: 2.00 cubic feet
- grille not included
- warranty: 2 years
- MFR # TN12-02
- Item # 236TN1202
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- One 12" Single voice coil subwoofer
- Specifications and wiring instructions
More details on the MTX TN12-02

Features & specs
Features and Specs | ||
---|---|---|
Size | 12-inch | |
Impedance (Ohms) | 2 | |
Cone Material | Polypropylene | |
Surround Material | Rubber | |
Basket Material | --- | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
93 dB at 2.83 volts 86.4 dB at 1 watt | |
Frequency Response | 24 - 160 Hz | |
Max RMS Power Handling | 200 | |
Peak Power Handling (Watts) | 400 | |
Top Mount Depth (inches) | 5 7/16 | |
Bottom Mount Depth (inches) | 5 15/16 | |
Cutout Diameter or Length (inches) | 11 1/8 | |
Frame Width | 12.491 | |
Frame Length | 12.491 | |
Vas (liters) | 65.95 | |
Fs (Hz) | 33.2 | |
Qts | 0.7 | |
Xmax (millimeters) | 9.4 | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 1.25 | |
Minimum Sealed Box Volume (cubic feet) | N/A | |
Maximum Sealed Box Volume (cubic feet) | N/A | |
Ideal Ported Box Volume (cubic feet) | 2 | |
Minimum Ported Box Volume (cubic feet) | N/A | |
Maximum Ported Box Volume (cubic feet) | N/A | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Enclosure Compatibility
Features
Spider Plateau Venting: Heat from the voice coil is vented through vents that surround the back of the spider. As the woofer travels back and forth, cool air is pulled in and heated air is pushed out.
Asymmetrical Linear Drive System (ALDS): The Asymmetrical Linear Drive System consists of a flat, progressive spider that improves suspension and an extended pole piece that smoothes out the cone's linear motion. The result is high output and low distortion.
Enclosure Compatibility
Sealed Box: For the best possible sound quality where space is a premium MTX recommends a sealed enclosure with an internal volume of 1.25 ft³. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Vented Box: The recommended vented box has a net internal volume of 2.0 ft³ with a slot port 14" x 2" x 16-3/4". Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power.
Loading...
Loading accessories...
Customer Q&A
3 questions already asked
Loading...
Loading articles...
I installed the MTX subwoofer with the previous settings of my amp and head unit and I might say it sounded way better and improved the sounds in my car as well than my previous amps I had installed. Amps: 4ch Sound Ordinance, 2ch US Acoustic Speakers: Polk audio
KDC from Canyon Country, CA
