Q&A: JL Audio RD900/5 5-channel amplifier
Answers to common questions about this JL Audio amplifier
This content was created with the help of AI to summarize our data, then edited and revised by a Crutchfield writer.
The JL Audio RD900/5 is a powerful 5-channel amplifier that delivers clean, reliable power to your entire car audio system. With its sleek design, user-friendly controls, and JL’s NexD™ Class D technology, this amp is built to perform. Let’s walk through the most important questions shoppers ask — starting with setup and moving into features.
Read our Car Amplifier Buying Guide for more shopping tips.
How do I set up the JL Audio RD900/5 in my system?
The RD900/5 is designed to power a complete car audio system with four speakers and a subwoofer. Feed the audio signal from your stereo to the amp via either RCA cables or speaker-level inputs, then set the gain controls and crossovers. JL’s top-mounted controls make this easier, with clear markings and a clipping indicator to help you dial in clean sound.
Quick take
- 5-channel amp powers 4 speakers + 1 sub
- Works with aftermarket or factory radios
- Easy-access top-mounted controls
What makes the RD900/5 different from other amps?
The RD900/5 packs five channels of JL Audio's "NexD™" Class D power into a compact chassis. In the past, this system upgrade required two amplifiers — one for your speakers and one for the bass. Now, this single amplifier simplifies installation while delivering serious output. Customers note that it runs cool, even at high volumes, and doesn’t take up much space.
Quick take
- NexD™ Class D tech = clean power, small size
- One amp runs your whole system
- Efficient design runs cool under load
- Compact chassis for easier installation
How much power does this amp really deliver?
JL rates the RD900/5 at 100 watts RMS x 4 channels + 500 watts RMS x 1 channel at 2 ohms. That means your front and rear speakers get strong, distortion-free power, and your subwoofer gets a serious 500-watt kick. Even at 4 ohms, you’ll see 75 watts per channel and 300 watts for the sub. Customers report that their systems sound dramatically clearer and louder without strain.
Quick take
- 100W RMS x 4 + 500W RMS x 1 @ 2 ohms
- 75W RMS x 4 + 300W RMS x 1 @ 4 ohms
- Perfect match for aftermarket speakers and subs

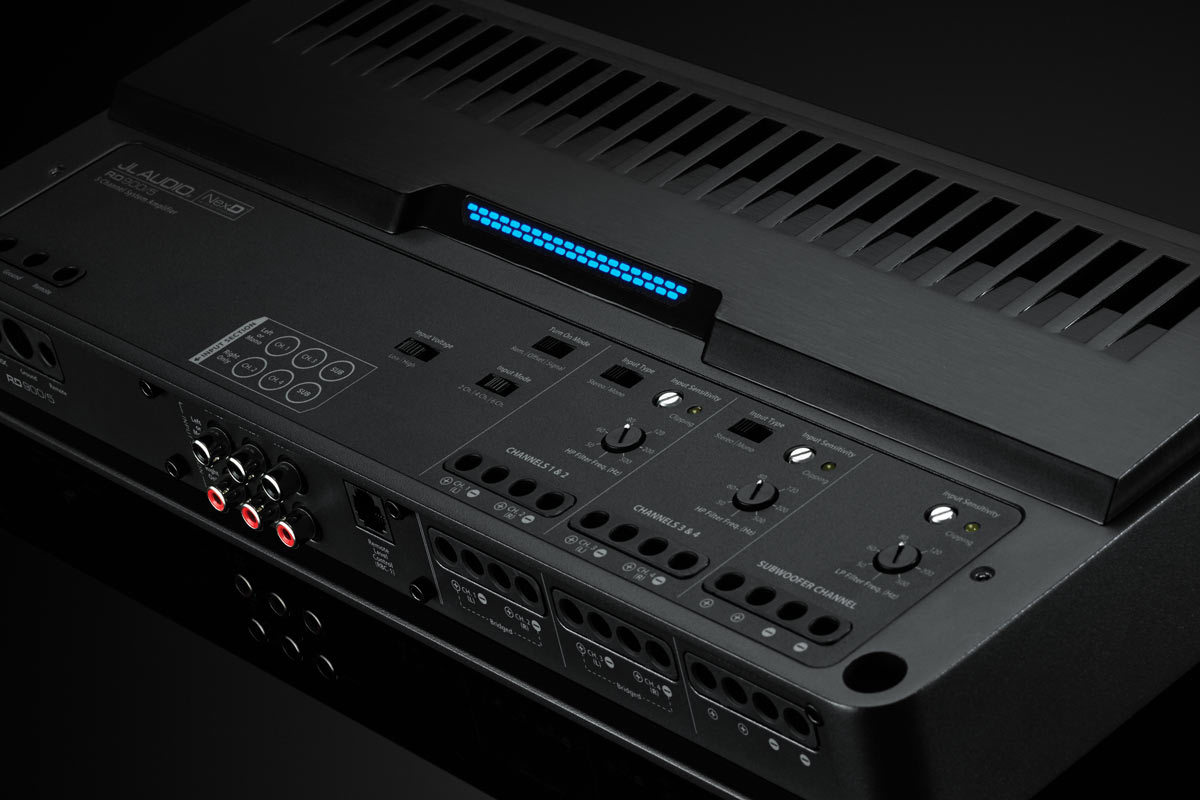

What controls and adjustments are included?
The amp includes high-pass filters for the speaker channels, a low-pass filter for the subwoofer channel, and a bass boost option for the low frequencies. The clipping indicator light ensures you don’t push your system into distortion. Controls are recessed to prevent accidental changes, yet easy to reach on the top panel.
Quick take
- High-pass and low-pass crossovers
- Bass boost on the subwoofer channel
- Clipping indicator helps you tune for clean sound
- Top-mounted, recessed dials
How do customers rate the sound quality?
Reviews highlight crystal-clear sound and tight, punchy bass. Many note that their music feels more alive, with mids and highs shining through without distortion. The subwoofer channel, in particular, gets high marks for depth and accuracy. Shoppers also praise the amp's reliability over time.
Quick take
- Praised for clarity and detail
- Strong, accurate bass performance
- Clean power at all volume levels
- Long-term reliability
Will the JL Audio RD900/5 fit in my vehicle?
The RD900/5’s compact footprint (14-11/16"W x 2"H x 7"W) makes it easier to install under seats, in trunks, or in other tight spaces. It includes removable connection plugs to simplify wiring. Most installers find it flexible enough for a wide range of vehicles.
Quick take
- Compact footprint for easier fit
- Works in sedans, trucks, and SUVs
- Removable connection plugs
- Stays cool in tight installations
Additional features at a glance
- Speaker-level inputs with auto turn-on for factory radio compatibility
- Cast aluminum chassis for durability and heat management
- Optional remote level control (sold separately)
Watch our video review
Ready to upgrade your sound?
The JL Audio RD900/5 5-channel amplifier is a one-amp solution for powering your entire system with clarity and authority. If you have questions about whether it’s the right fit for your vehicle, contact us — our Advisors are here to help.
