Q&A: JL Audio JD500/1 mono subwoofer amplifier
Answers to common questions about this JL Audio amp
This content was created with the help of AI to summarize our data, then edited and revised by a Crutchfield writer.

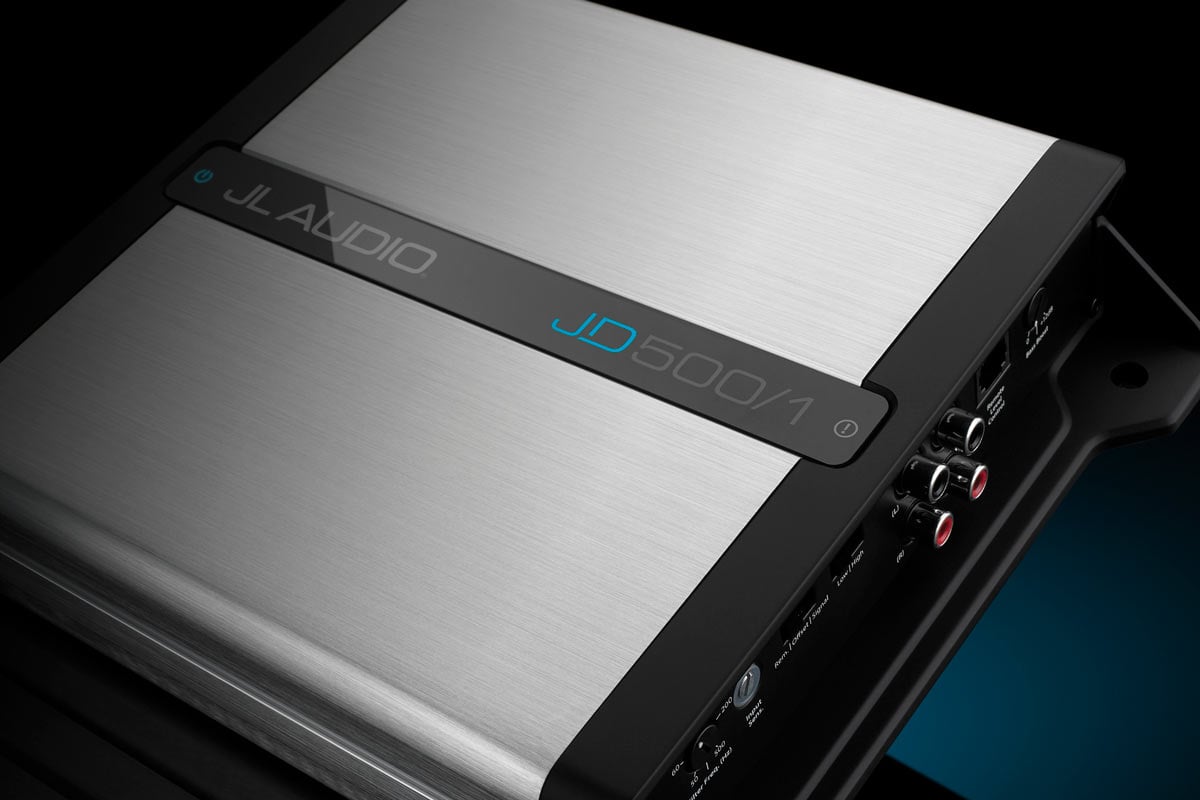

The JL Audio JD500/1 is a compact Class D mono amplifier designed to deliver clean, reliable power for a wide range of subwoofer systems. It produces 500 watts RMS at 2 ohms, making it a popular choice for space-conscious installations and factory-integration builds. Thoughtful setup features and JL Audio’s efficient NexD™ design help it balance strong output with sound quality and reliability.
Read our Car Amplifier Buying Guide for more shopping tips.
How easy is the JL Audio JD500/1 to install?
The JD500/1 is designed with installation flexibility in mind, whether you’re adding it to an aftermarket head unit or integrating it into a factory system. Dual-range inputs allow it to accept line-level or speaker-level signals, so a line output converter isn’t always required when working with factory radios. Its compact chassis also makes it easier to mount under a seat or in other tight spaces.
Quick take
- Accepts RCA or speaker-level inputs
- Compact footprint for tight installations
- Clear connection layout for power and signal wiring
What wiring and power connections does the amp require?
JL Audio recommends 4-gauge power and ground wire for the JD500/1, along with a 50-amp fuse installed close to the battery. The amplifier does not have onboard fuses, so proper external fuse protection is critical. Several Crutchfield customers specifically note the importance of planning for the correct fuse type and size during installation.
Quick take
- 4-gauge power and ground wiring recommended
- 50-amp external fuse required
- No internal or onboard fuses
Can the JD500/1 turn on automatically with a factory radio?
Yes. In addition to a traditional 12-volt remote turn-on, the JD500/1 supports signal sensing and DC offset-sensing turn-on, which can be useful in factory-radio installations. These options allow the amp to power up when it detects an audio signal or voltage offset, reducing the need for extra wiring in some vehicles.
Quick take
- Conventional remote turn-on supported
- Signal-sensing turn-on available
- DC offset-sensing option for factory systems
How do you set the gain correctly on the JD500/1?
The JD500/1 features a clip-detect LED ring around the input sensitivity control, making gain setup more straightforward than using a multimeter or test equipment. When the LED begins to illuminate, it indicates clipping, helping you dial in clean output. Customers frequently mention this feature as a practical tool during setup.
Quick take
- Built-in clipping indicator
- Simplifies gain adjustment
- Helps reduce distortion risk
What kind of subwoofers work best with this amplifier?
This amp is rated for 2-ohm or 4-ohm loads, delivering maximum output at 2 ohms. It works with single- or dual- voice coil subs and in either sealed or ported enclosures. Many Crutchfield reviewers note strong output and clean bass with JL subwoofers in everyday systems.
Quick take
- Stable at 2 ohms and 4 ohms
- 500 watts RMS at 2 ohms
- Flexible match for many subwoofer setups
Learn more about sub/amp wiring configurations with our subwoofer wiring diagrams.
Does the JD500/1 include built-in bass controls?
Yes. The amplifier includes a 12 dB/octave low-pass filter with adjustable crossover frequency and a variable bass boost. These controls allow you to fine-tune how the subwoofer blends with the rest of your system. A compatible remote level control (sold separately) can be added to adjust bass level from the driver’s seat.
Quick take
- Adjustable low-pass crossover
- Variable bass boost control
- Optional remote bass control compatibility
How reliable is the JD500/1 in daily use?
Customer feedback on Crutchfield consistently highlights long-term reliability, cool operation, and clean sound quality, even in demanding installations. Crutchfield’s lifetime tech support is frequently mentioned as a major plus when assistance is needed.
Quick take
- Strong reliability track record
- Efficient Class D operation
- Backed by Crutchfield lifetime tech support
Key features at a glance
- JL Audio NexD switching technology and differential-balanced inputs for noise rejection and clean sound
- Preamp outputs for easy system expansion
- Compact aluminum chassis design
Ready to pump up your system?
If you’re unsure whether the JL Audio JD500/1 is the right fit for your vehicle or subwoofer, our Crutchfield Advisors are always ready to help with system matching, wiring questions, and setup advice—before and after you buy.
Check out our full selection of mono amps for more bass options.
