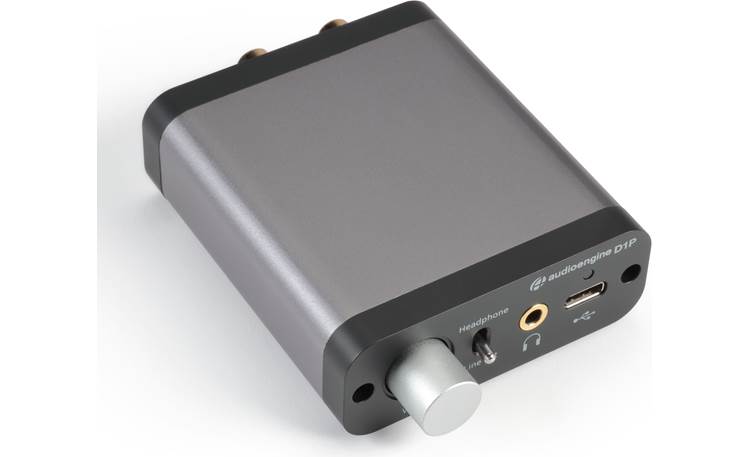

About the Audioengine D1P
Product highlights:
- portable USB digital-to-analog converter
- ESS Sabre ES9219C 32-bit/384kHz DAC chip with Hyperstream® II QUAD DAC™ architecture
- supported sample rates:
- PCM: up to 32-bit/384kHz; optical up to 24-bit/192kHz
- DSD: up to 11.2 MHz (DSD256)
- MQA renderer up to 8x
- works with most USB-C devices, including iPhone®, Android™ smartphones, and Windows® and Mac® computers
- Lightning® adapter also included (for a compatible iPhone)
Other info:
- 2.05-volt RMS output
- 3.5mm output for connecting DAC to headphones
- stereo analog RCA output for connecting to receivers, amplifiers, and more
- optical digital input for connecting TVs and home theater components
- no battery; uses USB source device for power
- onboard volume knob for smooth level adjustments
- sampling rate indicator verifies source quality
- white: PCM 32kHz-48kHz
- green: PCM 88.2kHz-192kHz; DSD64
- blue: PCM 352.8kHz-384kHz; DSD128
- purple: MQA
- headphone/speaker output switch
- frequency response: 20-40,000 Hz ±0.1 dB
- signal-to-noise ratio: 121 dB
Dimensions and warranty:
- 3"W x 1"H x 2-1/2"D
- weight: 0.85 lbs.
- warranty: 3 years
- MFR # D1P
- Item # 772D1P

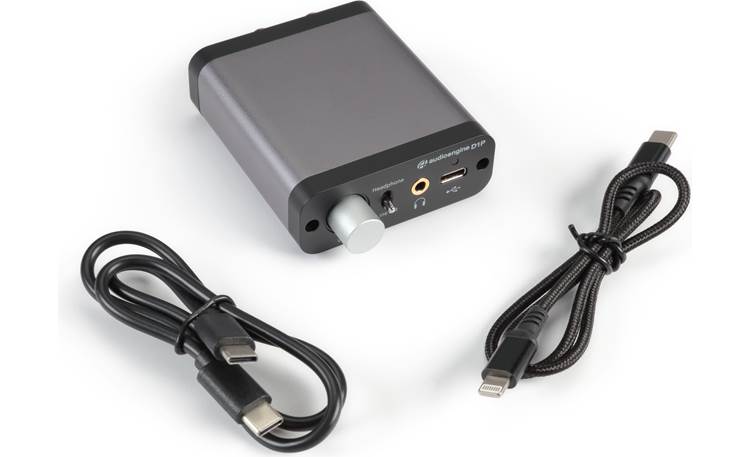

What's in the box:
Audioengine D1P owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Portable headphone amplifier/DAC
- 19" USB-C to Lightning cable
- 20" USB cable (USB-C plugs on both ends)
- Microfiber pouch
- Quick Start Guide
- Audioengine brochure
More details on the Audioengine D1P
Features & specs
| Design | ||
|---|---|---|
| Type | Portable | |
| Built-in Rechargable Battery | No | |
| Built-in Headphone Amplifier | ||
| Output Power | 2.05V | |
| Output Impedance (Unbalanced) | --- | |
| Output Impedance (Balanced) | --- | |
| Audio Specs | ||
| Bit Depth (USB) | 32 | |
| Max Sampling Rate (USB) | 384kHz | |
| Bit Depth (S/PDIF) | 24 | |
| Max Sampling Rate S/PDIF | 192kHz | |
| S/N Ratio (Unbalanced, in dB) | 121 | |
| S/N Ratio (Balanced, in dB) | --- | |
| THD (Unbalanced) | Not given | |
| THD (Balanced) | Not given | |
| Supported File Types | ||
| PCM | up to 384kHz | |
| DSD | DSD 256 | |
| DXD | --- | |
| MQA | Yes | |
| Inputs | ||
| Total Inputs | 2 | |
| USB | USB-C | |
| Optical Digital | 1 | |
| Coaxial Digital | None | |
| 3.5mm Digital | None | |
| Stereo RCA Analog | None | |
| Stereo 3.5mm Analog | None | |
| Stereo XLR Analog | None | |
| Headphone Outputs | ||
| 3.5mm Unbalanced | 1 | |
| 1/4-inch Unbalanced | None | |
| 4.4mm Balanced | None | |
| XLR4 Balanced | None | |
| Other Headphone Outs | None | |
| Line Level & Digital Outs | ||
| RCA Line Out | 1 | |
| 3.5mm Line Out | None | |
| XLR Line Out | None | |
| Subwoofer Out | None | |
| Optical Digital Out | None | |
| Coaxial Digital Out | None | |
| Wireless Connectivity | ||
| Bluetooth | No | |
| Wi-Fi | No | |
| Apple-compatible | --- | |
| Android-compatible | --- | |
| General Info | ||
| Width (inches) | 2-9/16 | |
| Height (inches) | 1 | |
| Depth (inches) | 3-13/16 | |
| Weight | 0.244 lbs. | |
| Parts Warranty | 3 Years | |
| Labor Warranty | 3 Years | |
Product Research
Features
Overview: The Audioengine D1P Digital-to-Analog Converter (DAC) is a portable headphone amp and 32-bit DAC to provide a premium listening experience. It can be used with your smartphone, or with your computer to bypass its internal soundcard. It is compatible with Android and iOS devices, as well as Windows and macOS computers. It has USB-C and Optical Digital (Toslink) inputs, plus 3.5mm mini-jack and stereo RCA analog outputs. The DAC comes with a USB-C cable, a USB-C to Lightning cable, and a microfiber storage pouch. The D1P DAC is covered by a 3-year Limited Warranty.
Design: The D1P is built with premium components to provide superior performance and sound quality. It has a Savtech SA9312 USB chip, an ESS ES9219C digital-to-audio converter, and a Cirrus Logic CS8416 optical input. The D1P supports a wide variety of high-res audio formats:, including FLAC, PCM, DSD, and MQA.
MQA Renderer: The Audioengine D1P uses MQA Renderer technology to an MQA Core signal and complete the final unfold of an MQA file. MQA (Master Quality Authenticated) audio files are stored original master recordings that can be downloaded or streamed, to give you audio the way the artist intended.
LED Indicator: The front panel has an LED indicator that glows to indicate the status, format, and sampling rate (see Note below):
- White: PCM 32kHz to 48kHz
- Green: PCM 88.2kHz to 192kHz, DSD 64, Optical
- Blue: PCM 352.8kHz to 384kHz, DSD 128
- Purple: MQA Rendering
Power Requirements: The D1P is powered through the USB port (5V) and has a minimal power draw. It can be powered by your mobile device or computer. If you are using the optical input, any 5V DC USB-C power supply will suffice.
Break-in Period: The D1P will sound better over time. Although it will sound great out ot the box, Audioengine recommends you play the DAC for 40 to 50 hours before doing any critical listening. This "break-in" period will allow the internal components to reach their peak performance.
Specifications:
- Frequency Response: 20 Hz to 40 kHz, +/-0.1dB
- S/N Ratio: >121 dB (10K)
- Headphone Output: 3.5mm mini-jack, compatible with headphones 10Ω to 600Ω
- Line Output: Stereo RCA; 2.05 volts RMS max.
- Digital Signal Compatibility:
- USB-C: up to 32-bit/384 kHz PCM stereo, DSD 64, DSD 128
- Optical: up to 24-bit/192 kHz PCM stereo
- Power Requirement: 5V via USB-C
- Power Consumption: ~102mA (normal), ~121mA (with pink noise at 50% volume, 32-bit 384kHz)
- Operating Temperature: 32°F to 95°F
- Non-Operating Temperature: -4°F to 113°F
- Dimensions: Width 2.56", Height 0.949", Depth 3.756"
- Weight: 3.9 ounces
